Sanitary Stainless Steel Butterfly Valve with Flange

The butterfly bodies are forged, the gaskets are subjected to 24 hour constant temperature treatment to ensure the high quality of the butterfly valve
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
DN25-DN150
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM,silicone
Transport Package:
cartons

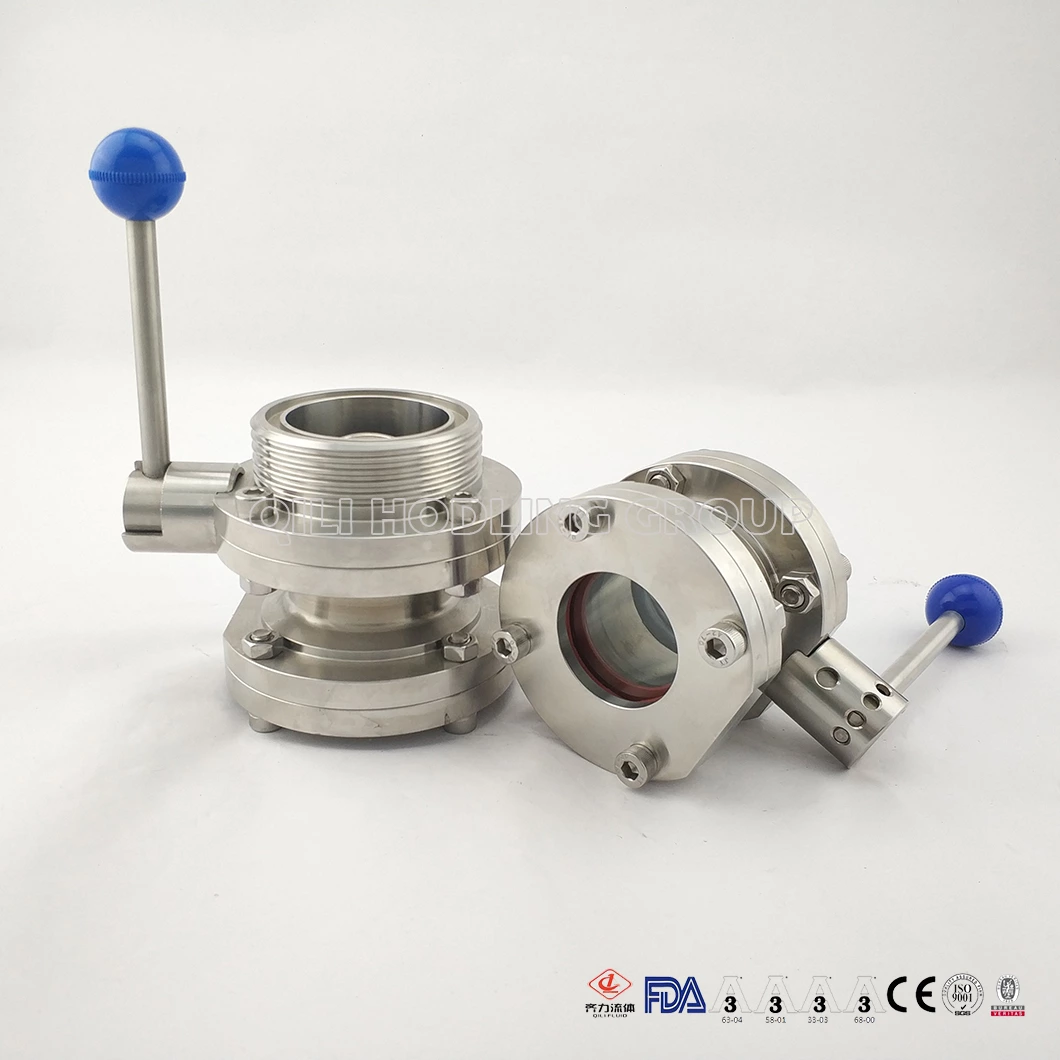

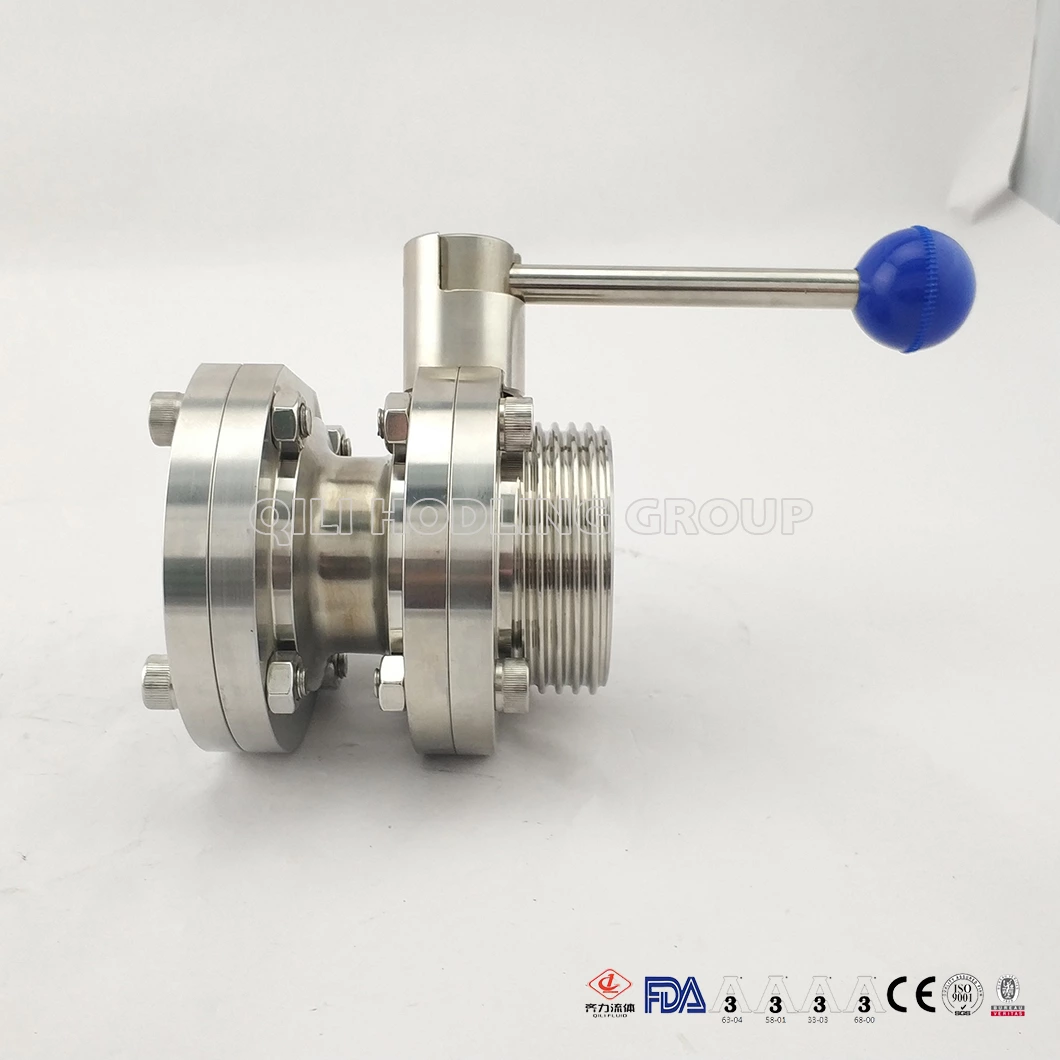

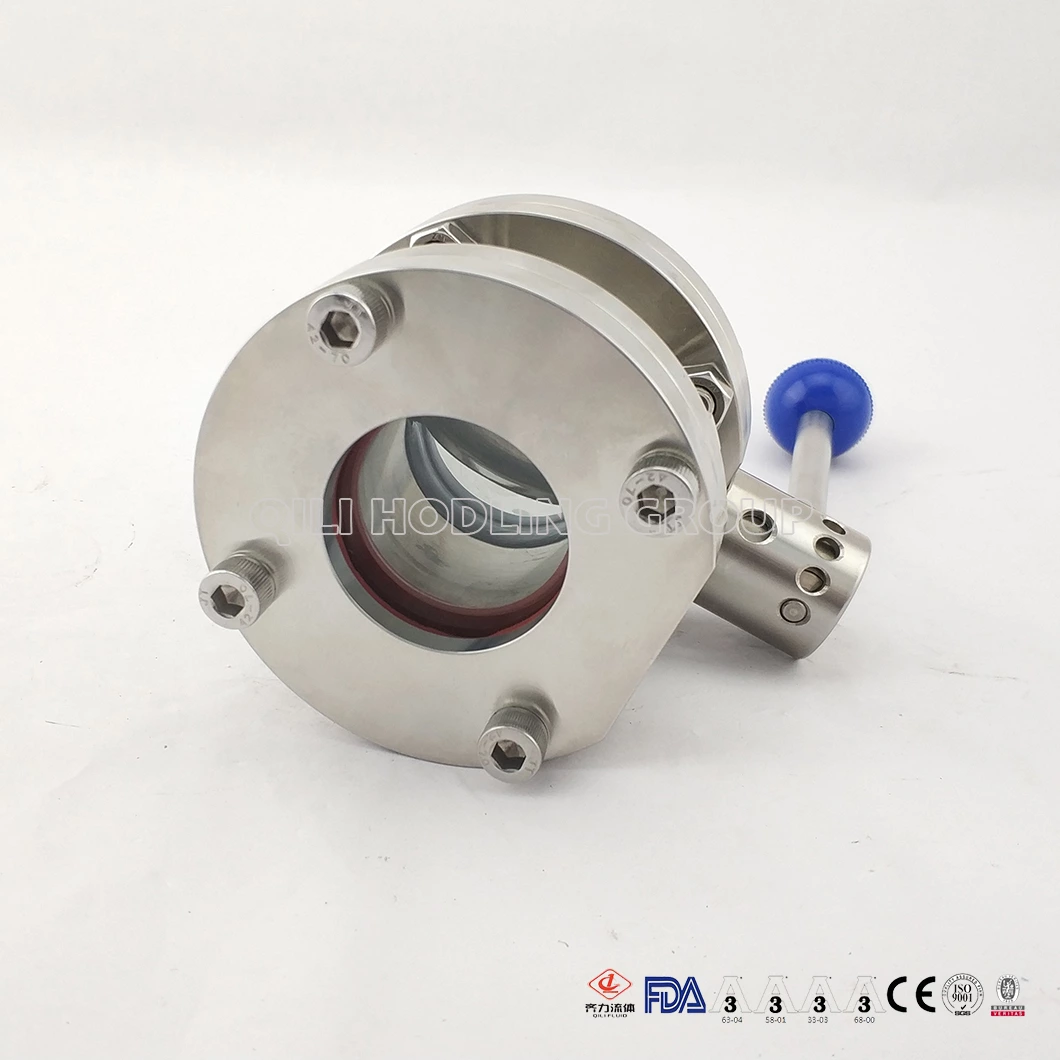

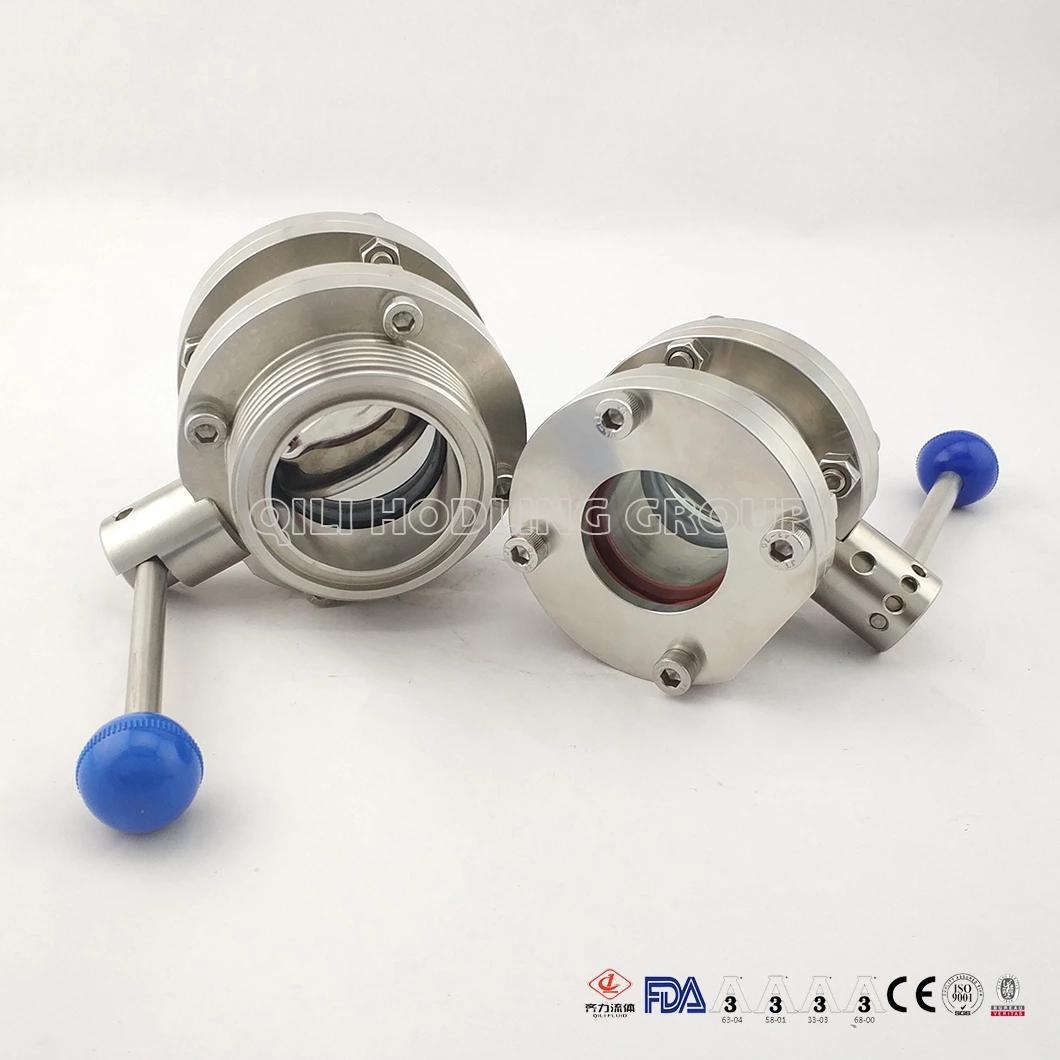

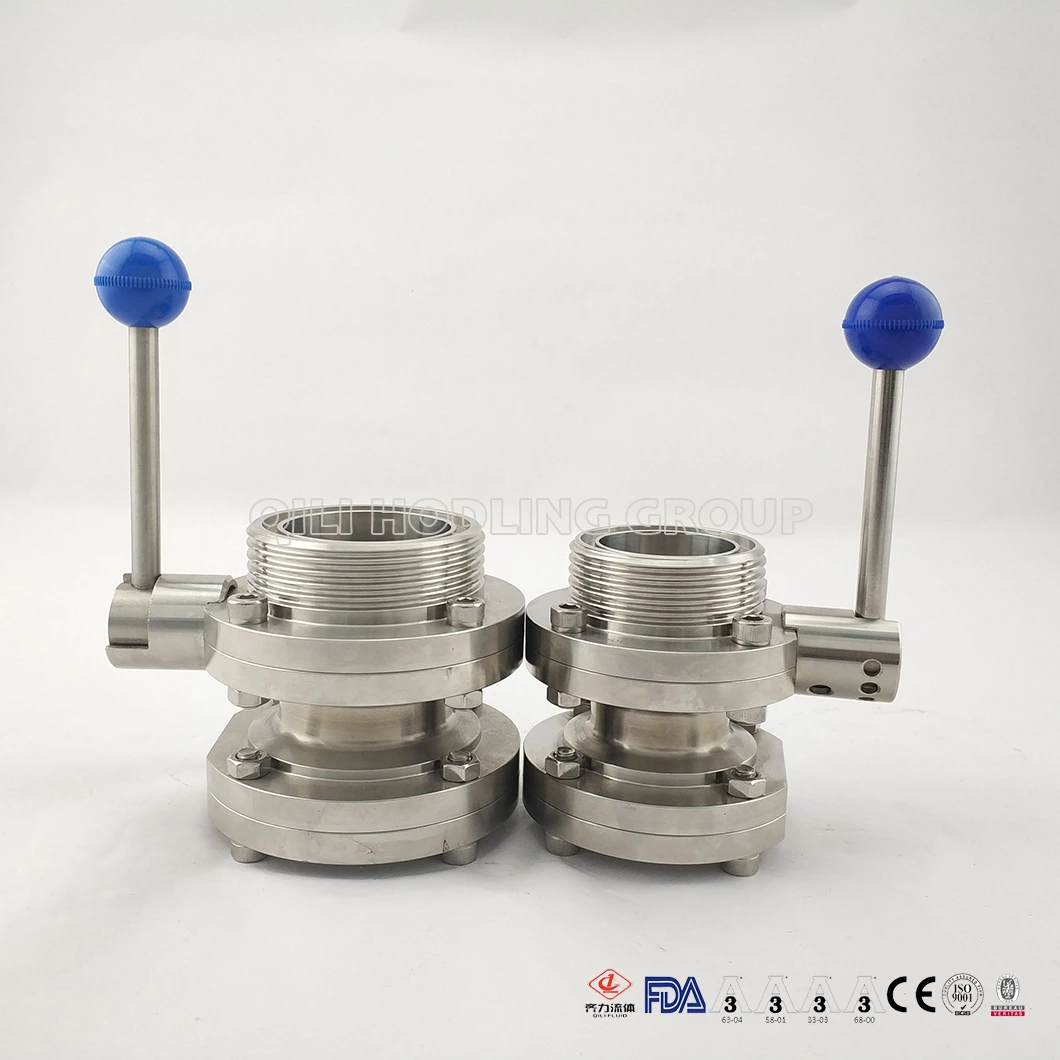

Sanitary Stainless Steel Butterfly Valve with Flange
Sanitary Stainless Steel Butterfly Valve with Flange Sanitary Stainless Steel Butterfly Valve with Flange Sanitary Stainless Steel Butterfly Valve with Flange Sanitary Stainless Steel Butterfly Valve with Flange Sanitary Stainless Steel Butterfly Valve with Flange Sanitary Stainless Steel Butterfly Valve with Flange

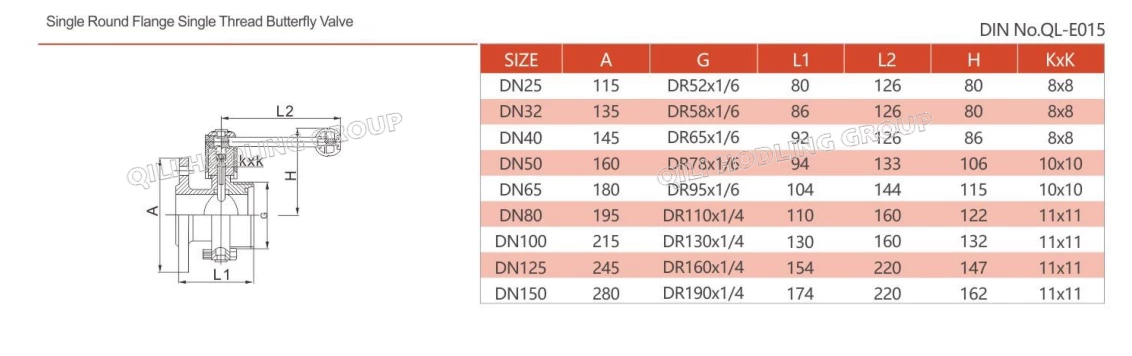

Drawings

Details

 Product Name:  Sanitary Stainless Steel Butterfly Valve
 Material:  SS304 or SS316L
 Standard:  3A, SMS, DIN, RJT, IDF
 Size: DN25-DN150
 Connection Way:  Weld, Clamp, Thread (male/female) , KF
 Operated:  Manual, Pneumatic, Electric
 Manual Handle:  Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions),
 Stainless Steel Trigger Handle (13 Positions)
 Seal Material:  Silicone, EPDM, Viton, NBR
 Surface Finishing:  Ra≤0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Working Pressure:  0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150)
Application scope:  Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
