Sanitary Stainless Steel Butterfly Valve Pull Handle
The butterfly bodies are forged, the gaskets are subjected to 24 hour constant temperature treatment to ensure the high quality of the butterfly valve
- Material:
- SS304,SS316L，plastic
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Sales Models:
- wholesale or retail
- Transport Package:
- cartons
Drawings
Details
| Product Name: | Sanitary Stainless Steel Butterfly Valve |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 1/2"-6" or DN15-DN150 |
| Connection Way: | Weld, Clamp, Thread (male/female) , KF |
| Operated: | Manual, Pneumatic, Electric |

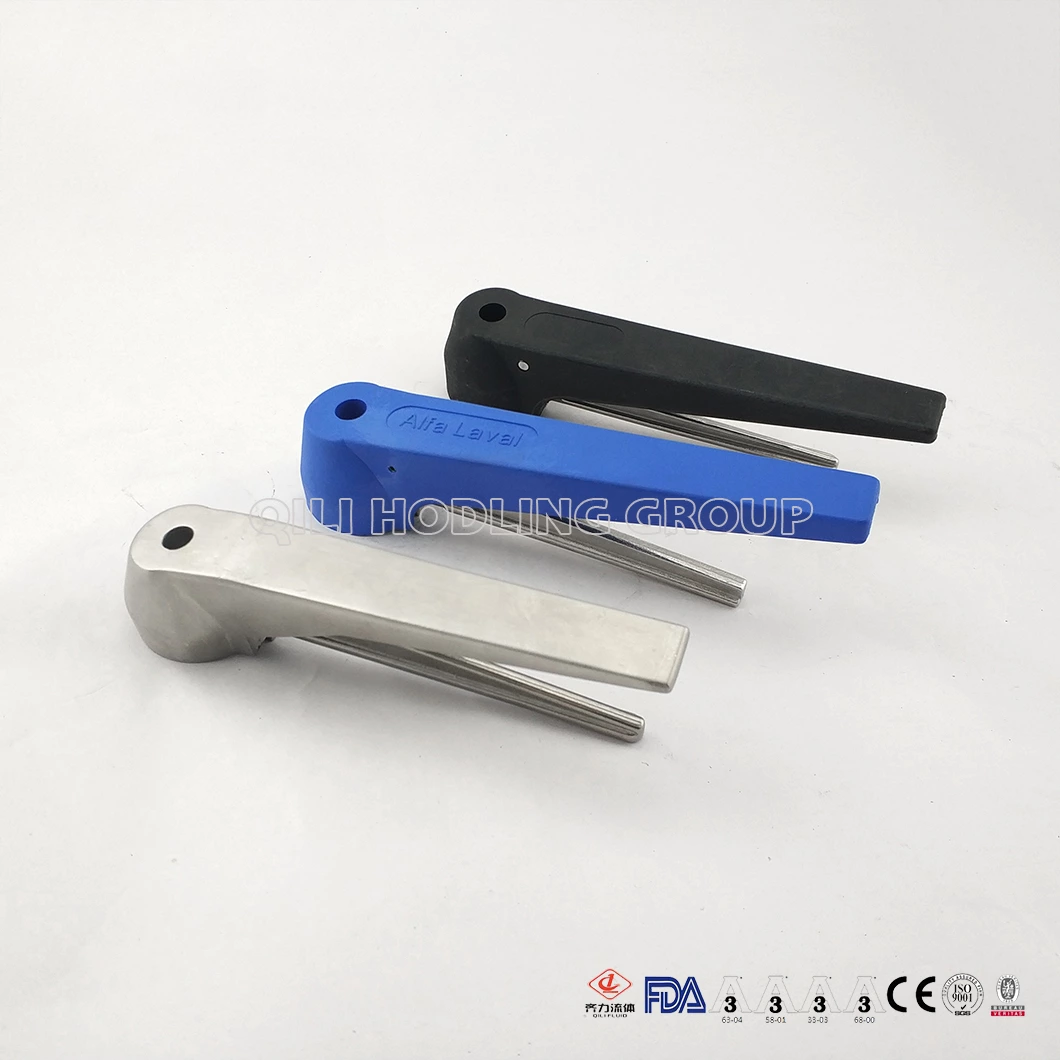

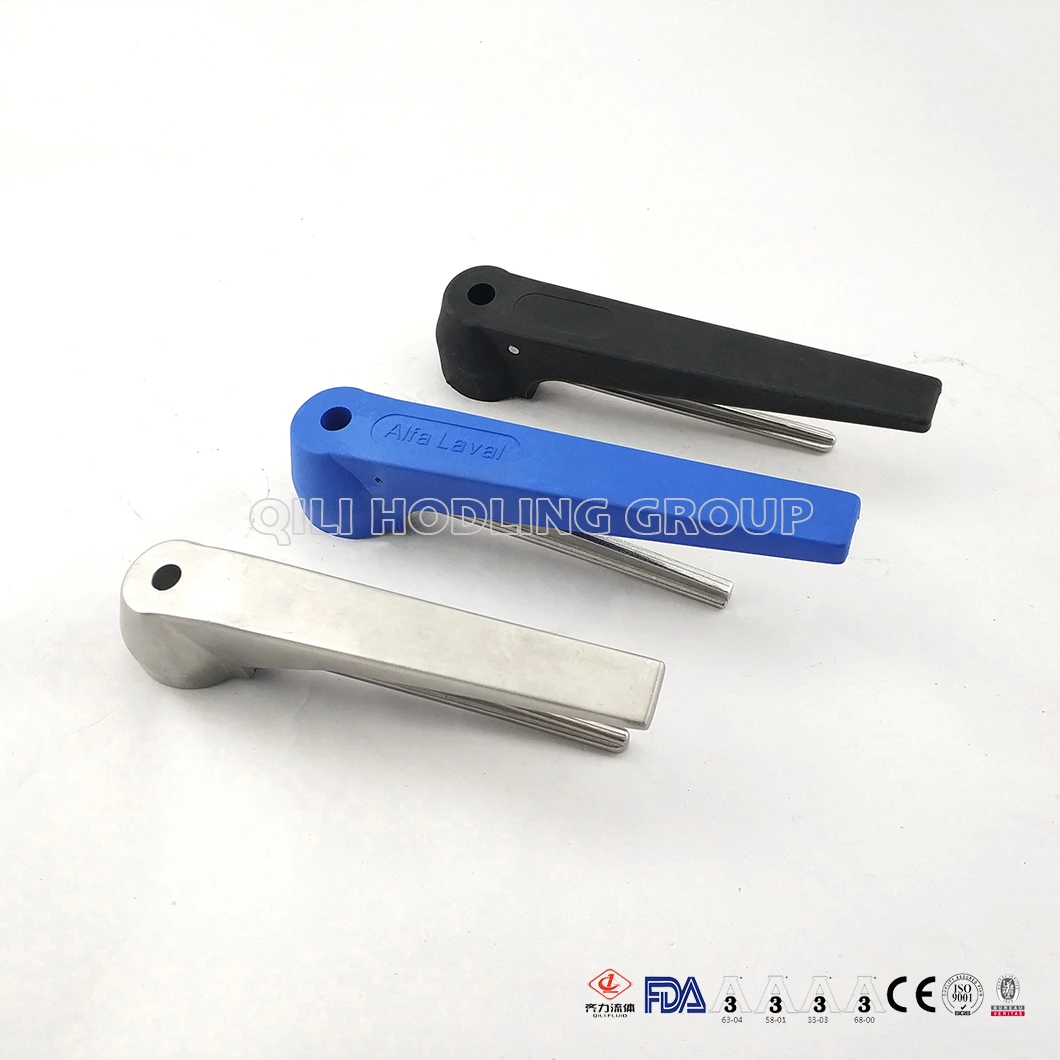

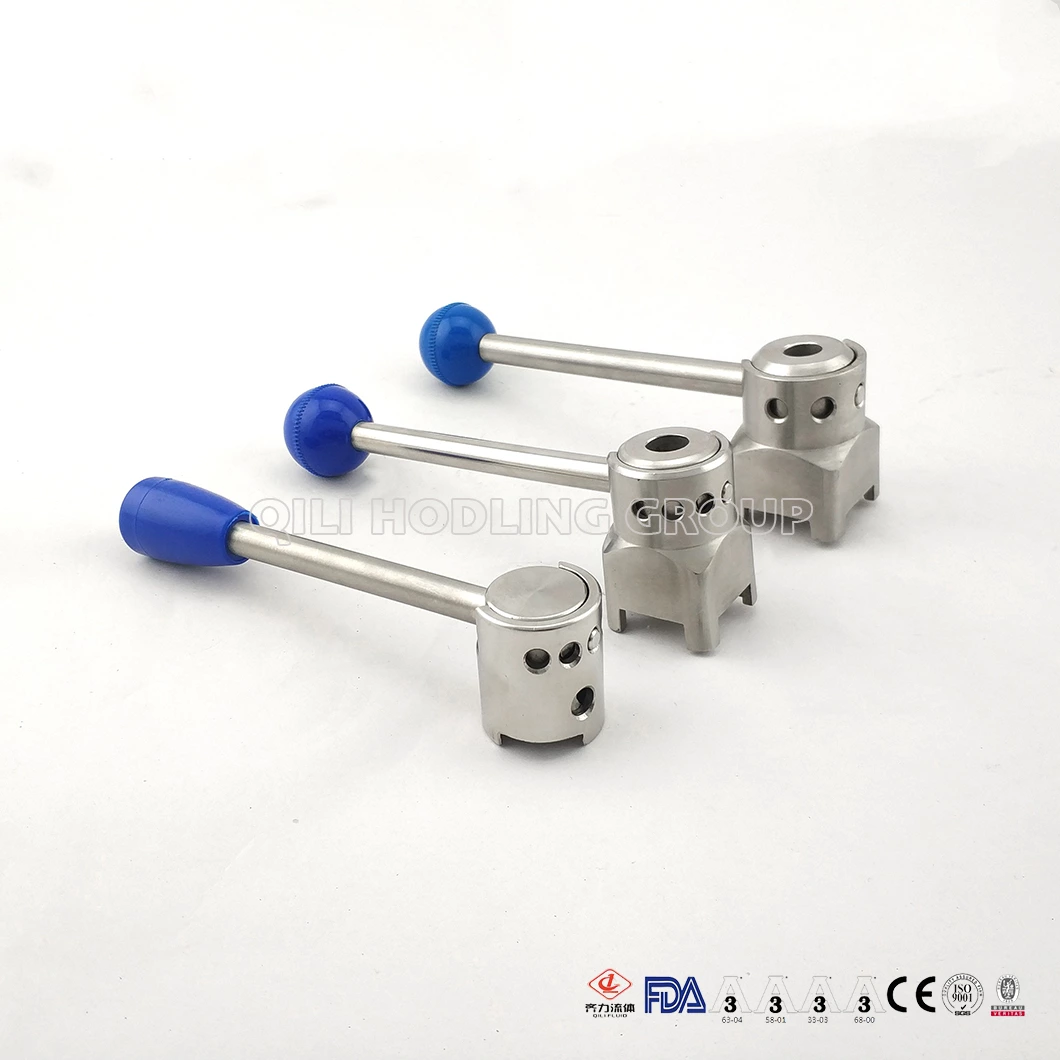

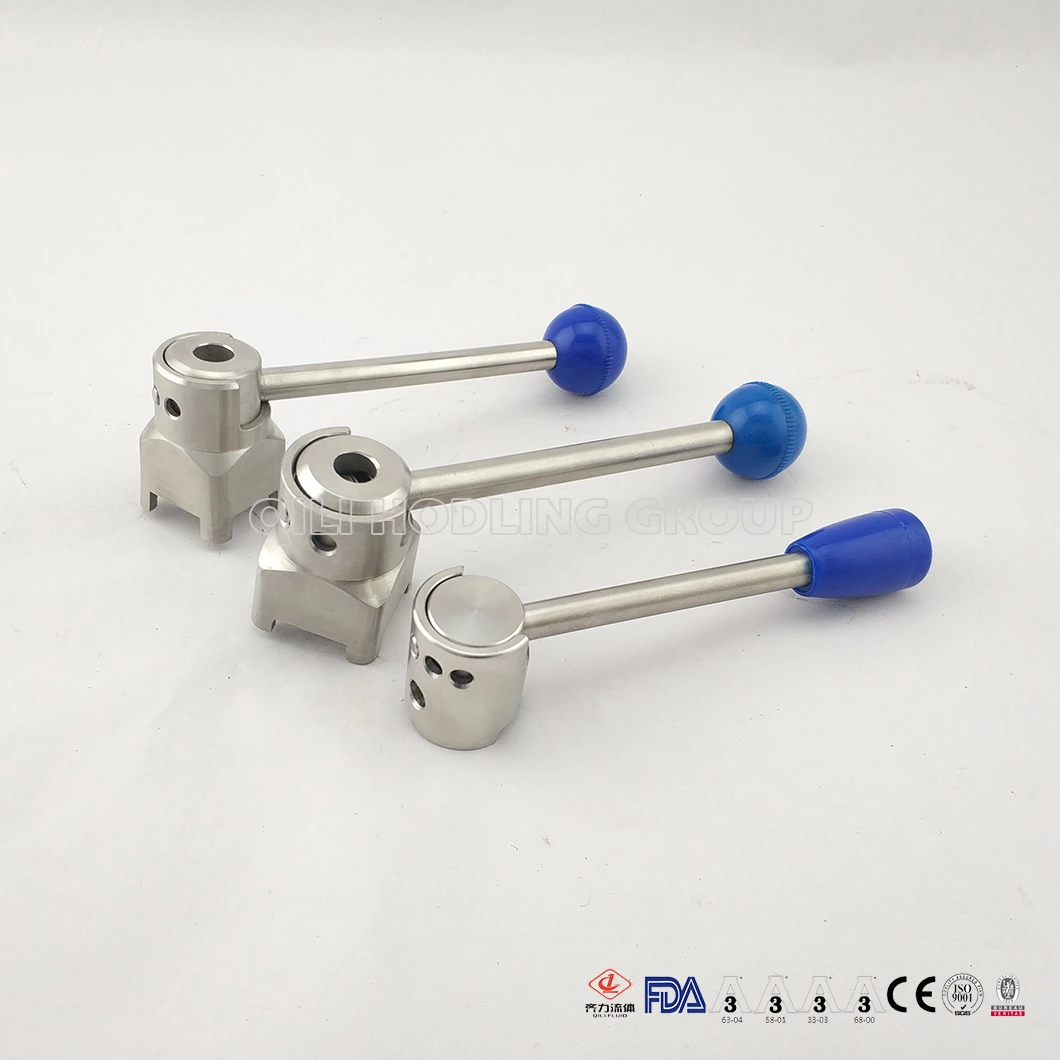

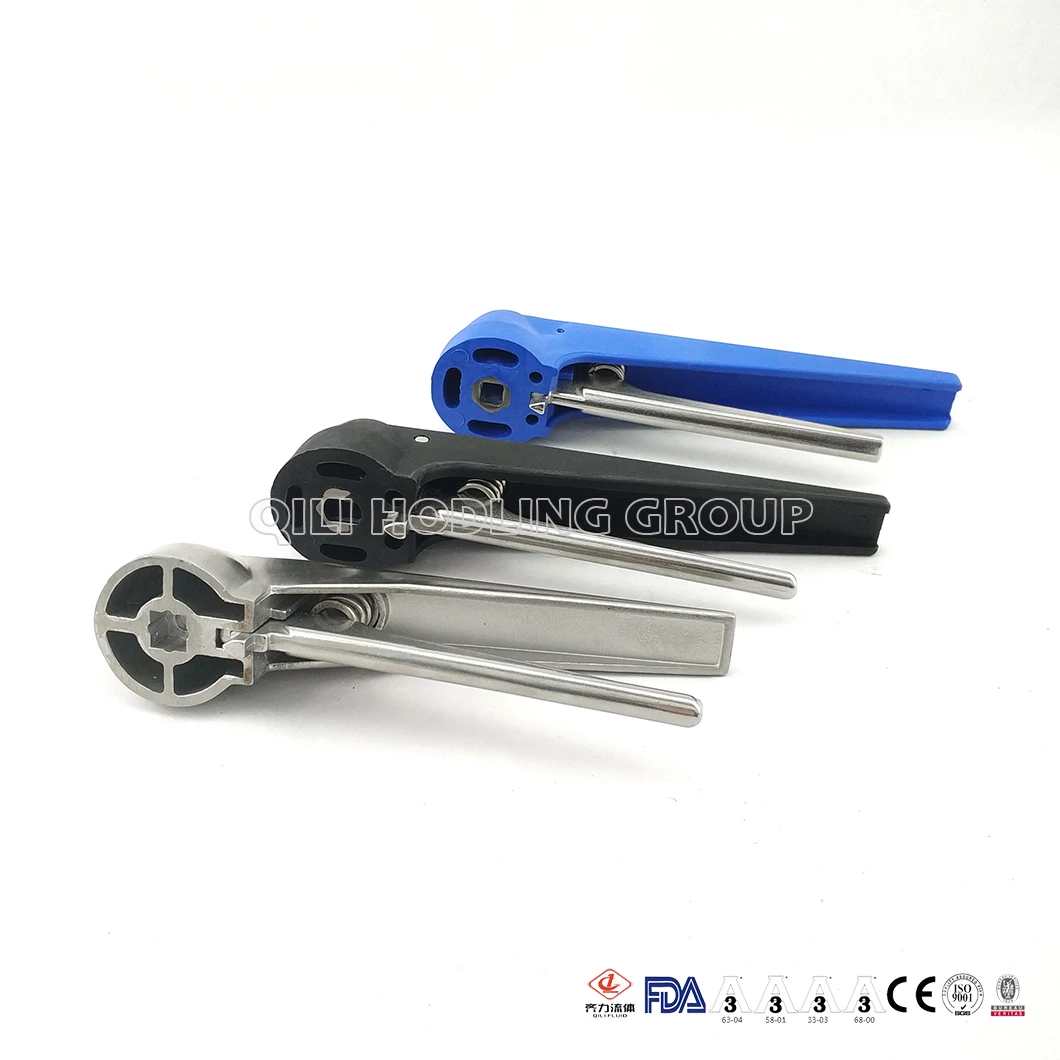

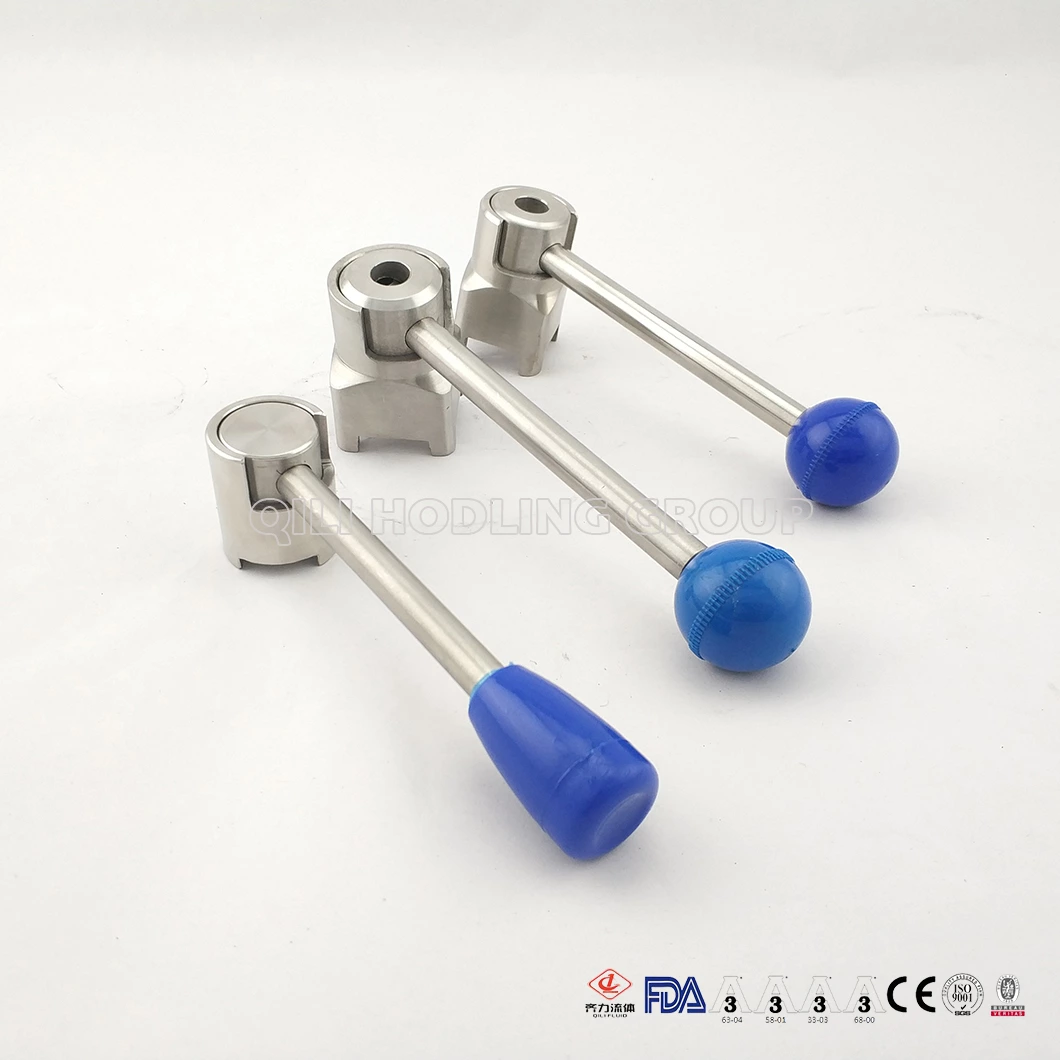

| Manual Handle: | Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions), |
| Stainless Steel Trigger Handle (13 Positions) | |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Working Pressure: | 0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150) |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
