Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle

Model:
QL-BV
Contact Now
Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle
Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle
Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle
Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle
Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle
Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle
Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle

Sanitary Stainless Steel Butterfly Valve Plastic Trigger Handle

Specification

 Product Name:  Sanitary Stainless Steel Butterfly Valve
 Material:  SS304 or SS316L
 Standard:  3A, SMS, DIN, RJT, IDF
 Size:  1/2"-6" or DN15-DN150
 Connection Way:  Weld, Clamp, Thread (male/female) , KF
 Operated:  Manual, Pneumatic, Electric

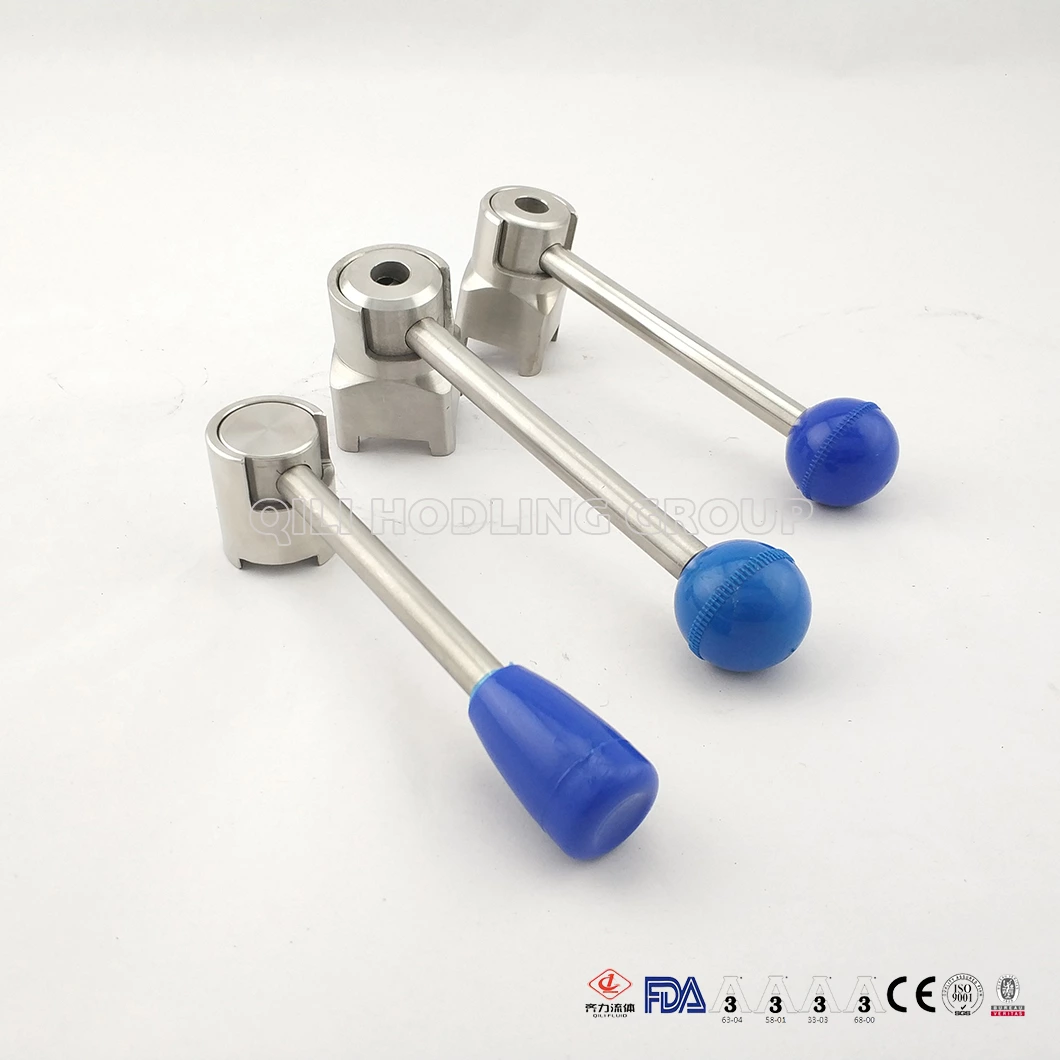

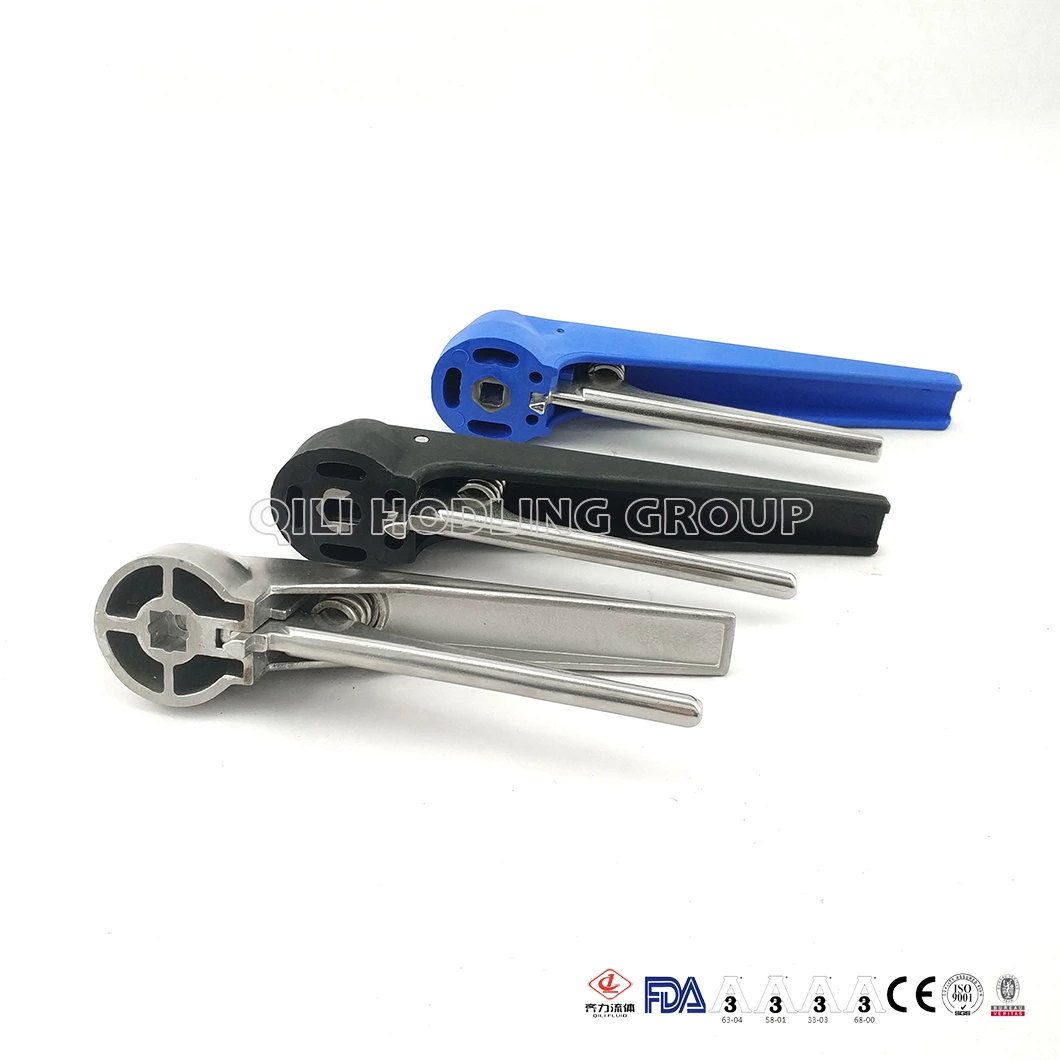

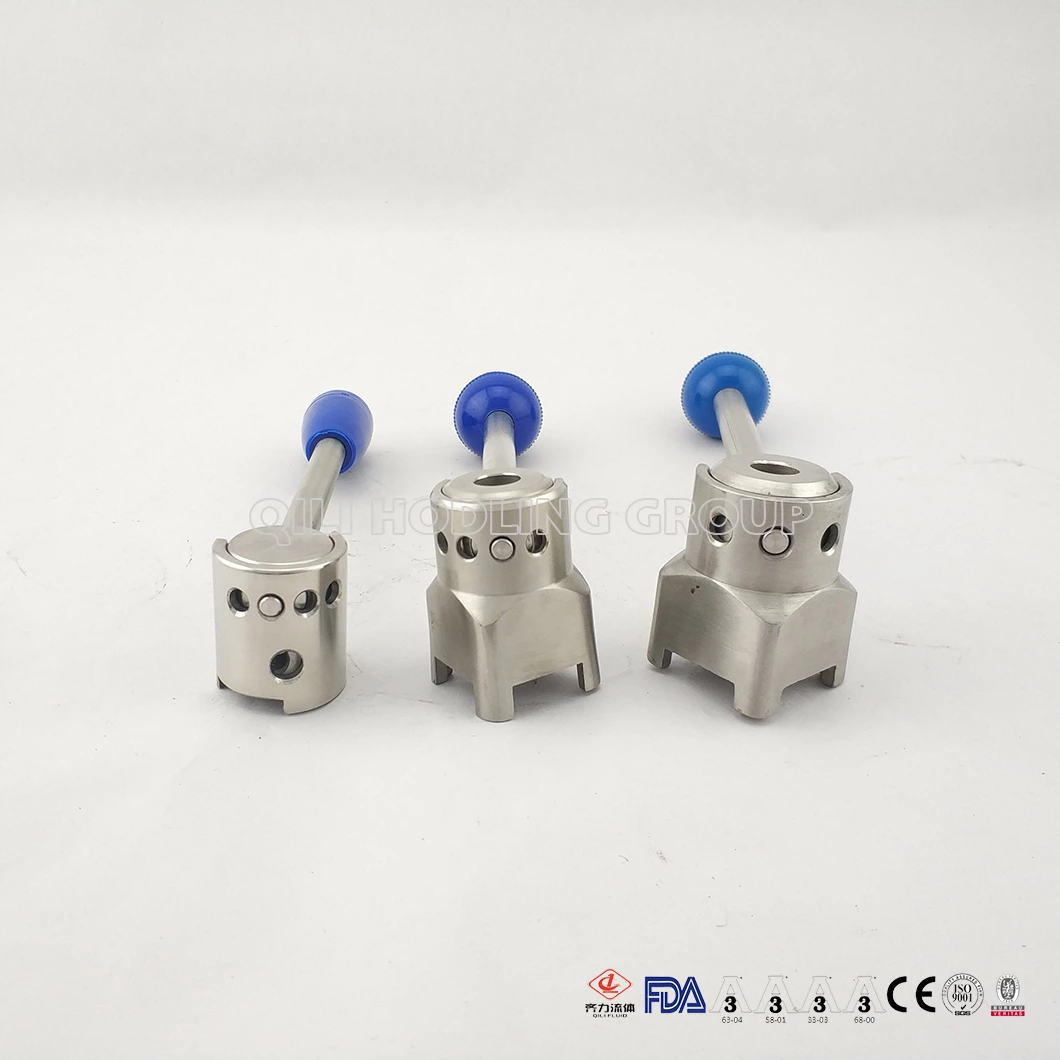

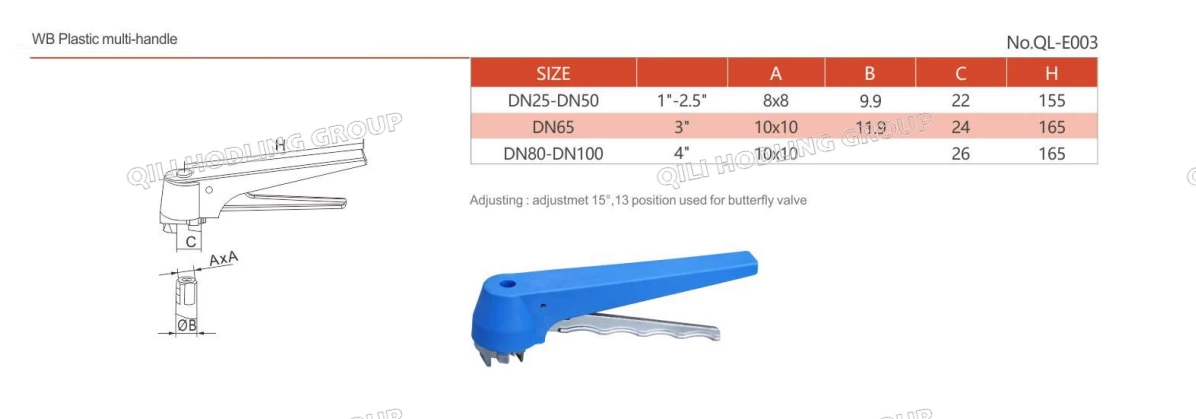

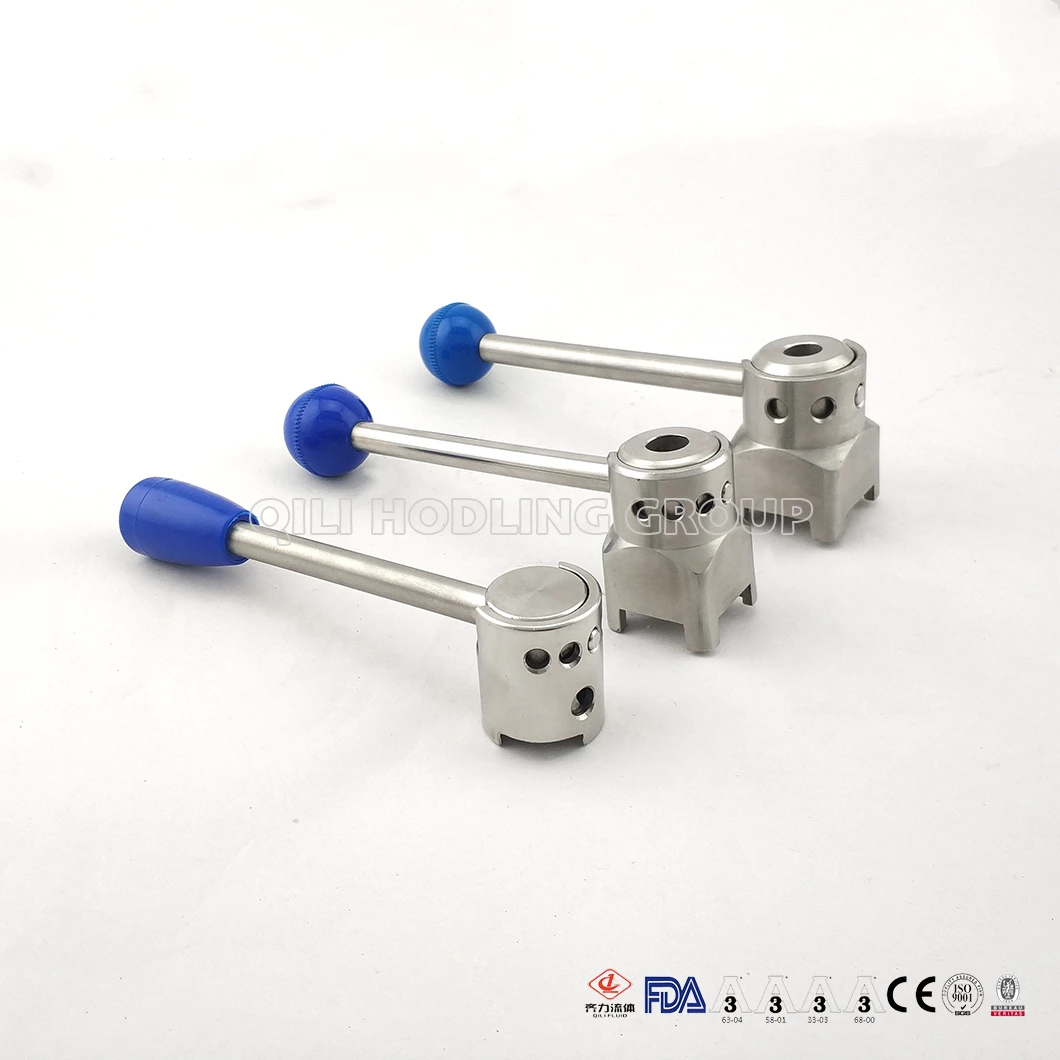

 Manual Handle:  Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions),

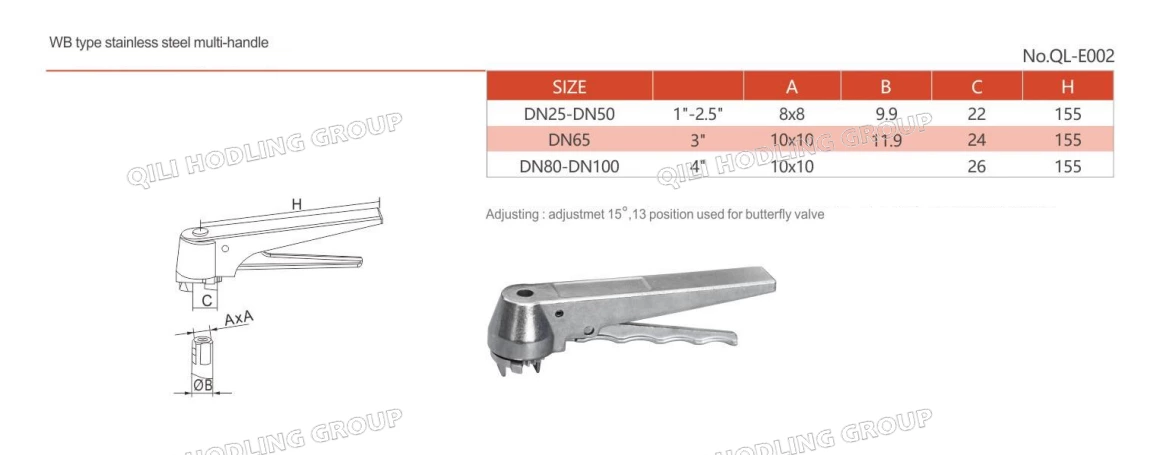

 Stainless Steel Trigger Handle (13 Positions)
 Seal Material:  Silicone, EPDM, Viton, NBR
 Surface Finishing:  Ra≤0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Working Pressure:  0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150)
Application scope:  Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
 Packing Details:

Textile bag pack for each butterfly valve, two packed butterfly valves into one box, into cartons,

then reinforced with a woven bag outside.

Wooden box is also available depends on the quantity and the way of transport.

Torque for Full Open/Closesize
