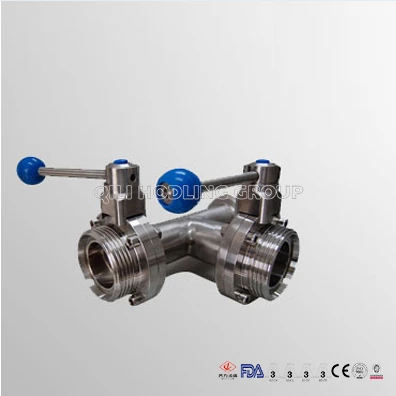

Sanitary Stainless Steel 3 Way Butterfly Valves 90 Deg
We can supply welding butterfly valve, thread butterfly valve, clamp butterfly valve, flange butterfly valve, male butterfly valve, female butterfly valve, welding/male butterfly valve and liner butterfly valve. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- DN15-150 and 1"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM
- Transport Package:
- cartons
Details
| Description | Sanitary Stainless Steel 3 Way Butterfly Valves 90 Deg |
| Material | Stainless steel 304, 316L |
| Connection form | Welding |
| Structure | Double-eccentric sealing |
| Seal Form | Auto Sealed |
| Work Pressure | LowPressure (-0.9 to 20 Bar for forged body) |
| Work Temperature | Normal temperature -20 ~ 150°C |
| Material of seal surface | Soft sealed |
| Valve body | Forge welding |
| Size | DN15-150 and 1"-6" |
| Seal | Silicone.EPDM,Viton, and NBR is available. |
| Medium | Beer,Dairy,Beverage,Pharmacy,Cosmetics. |
| Application | Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry. |
| Standard | DIN/SMS/3A/ISO/IDF |
| Packaging | Carton packaging. Wooden case packaging. |
