Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball

The butterfly type ball valve is designed as an encapsulated valve, which solve the problem of liquid retention valve cavity.the valve is in biopharmaceutical , CIP Cleaning system,beverage processing, brewing, refinery, cosmetics and chemical industry, valve rod sealing design,Butterfly spring compensation design,encapsulated PTFE design, It has the advantage of long life ,small torque,no retention
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
DN15-150 and 1"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM
Transport Package:
cartons
Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball
Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball Sanitary SS304 SS316L Weld Thread Clamp Ends Butterfly Type Ball

Details

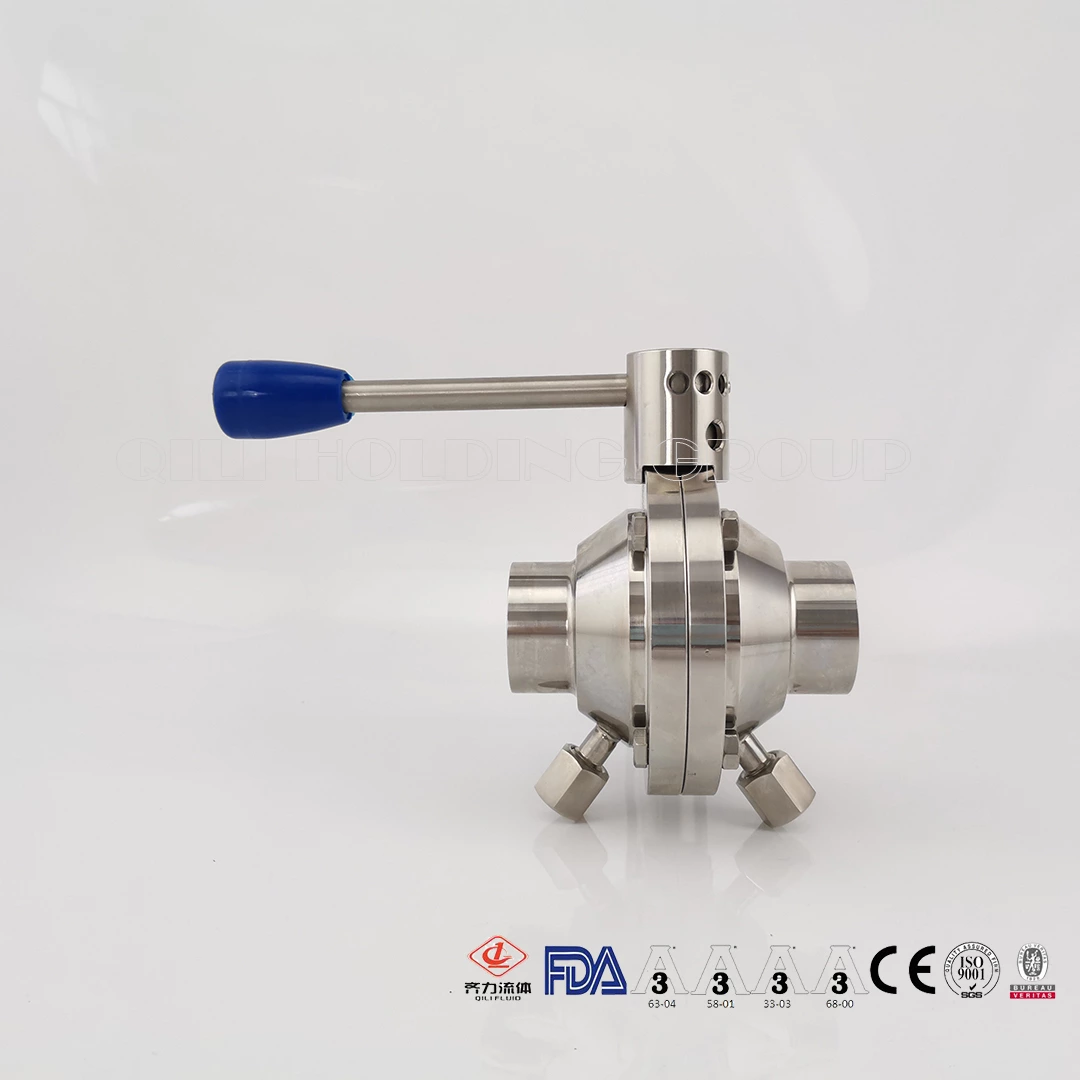

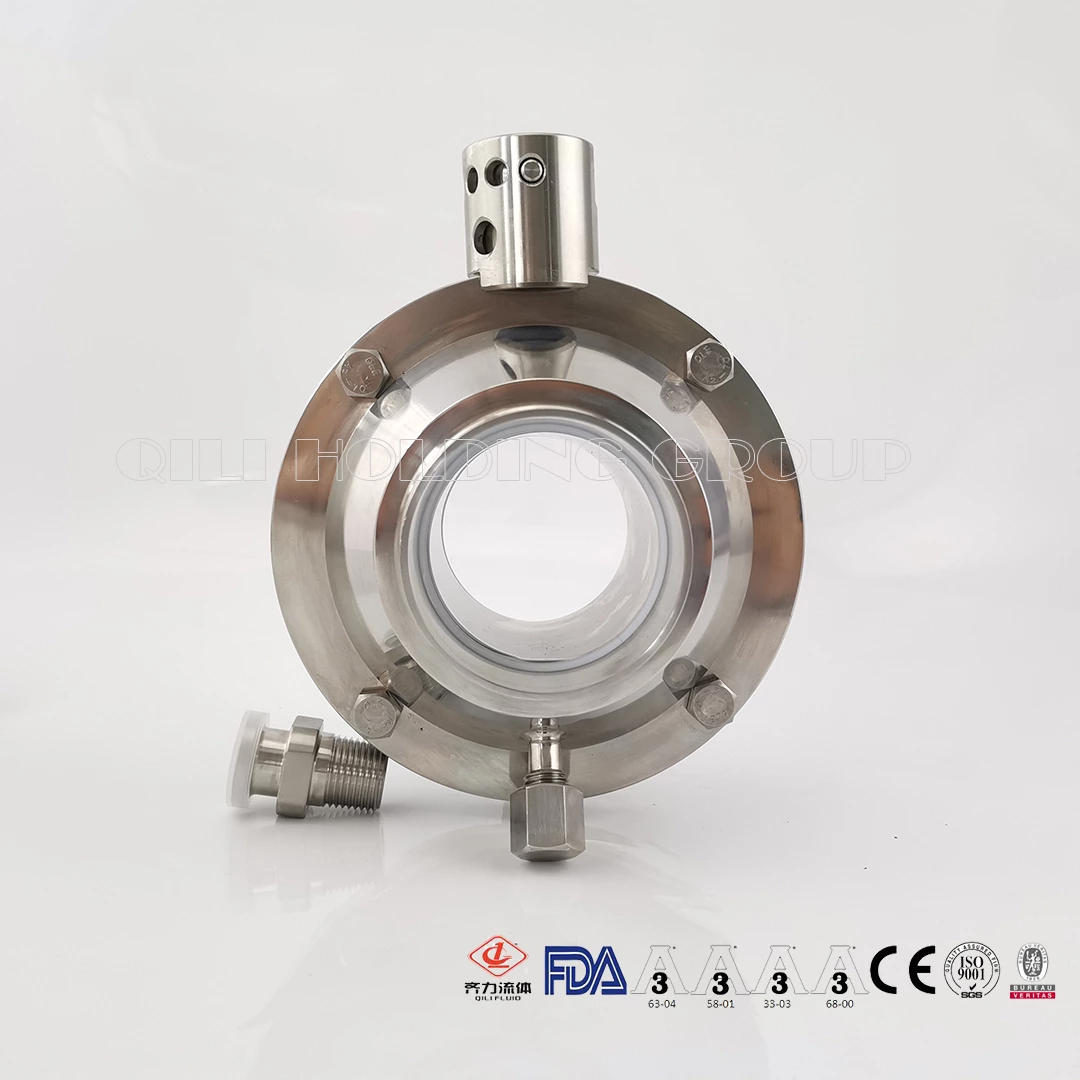

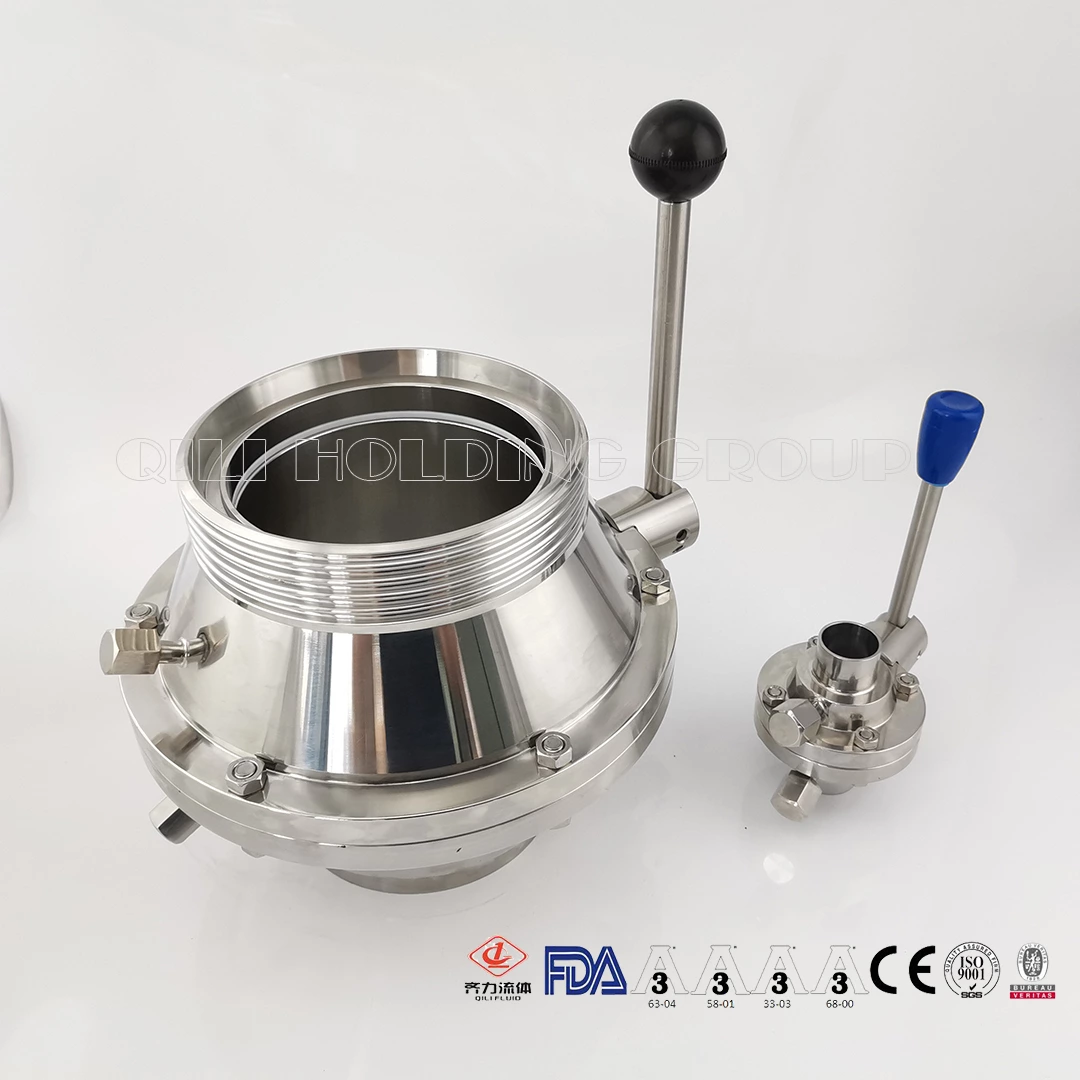

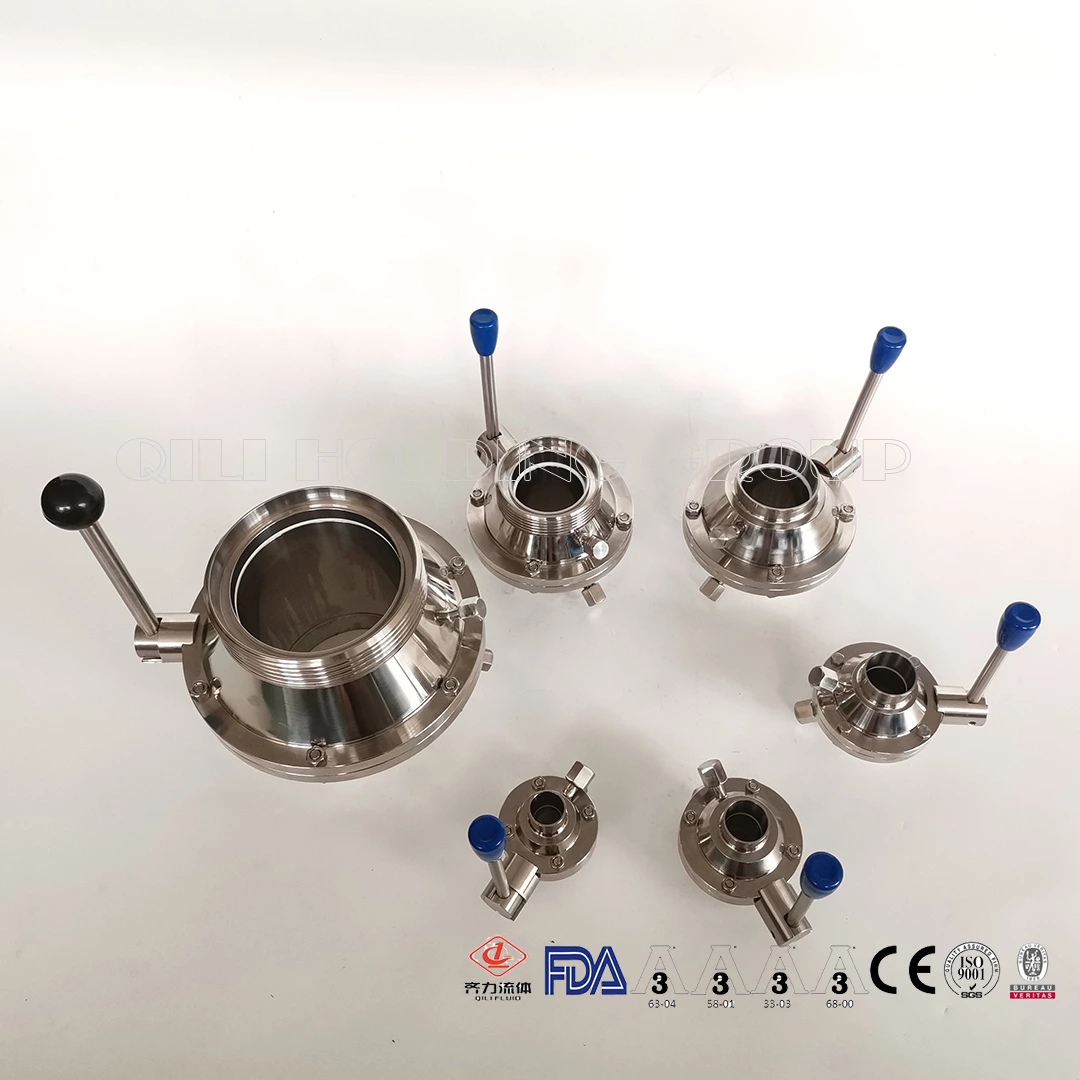

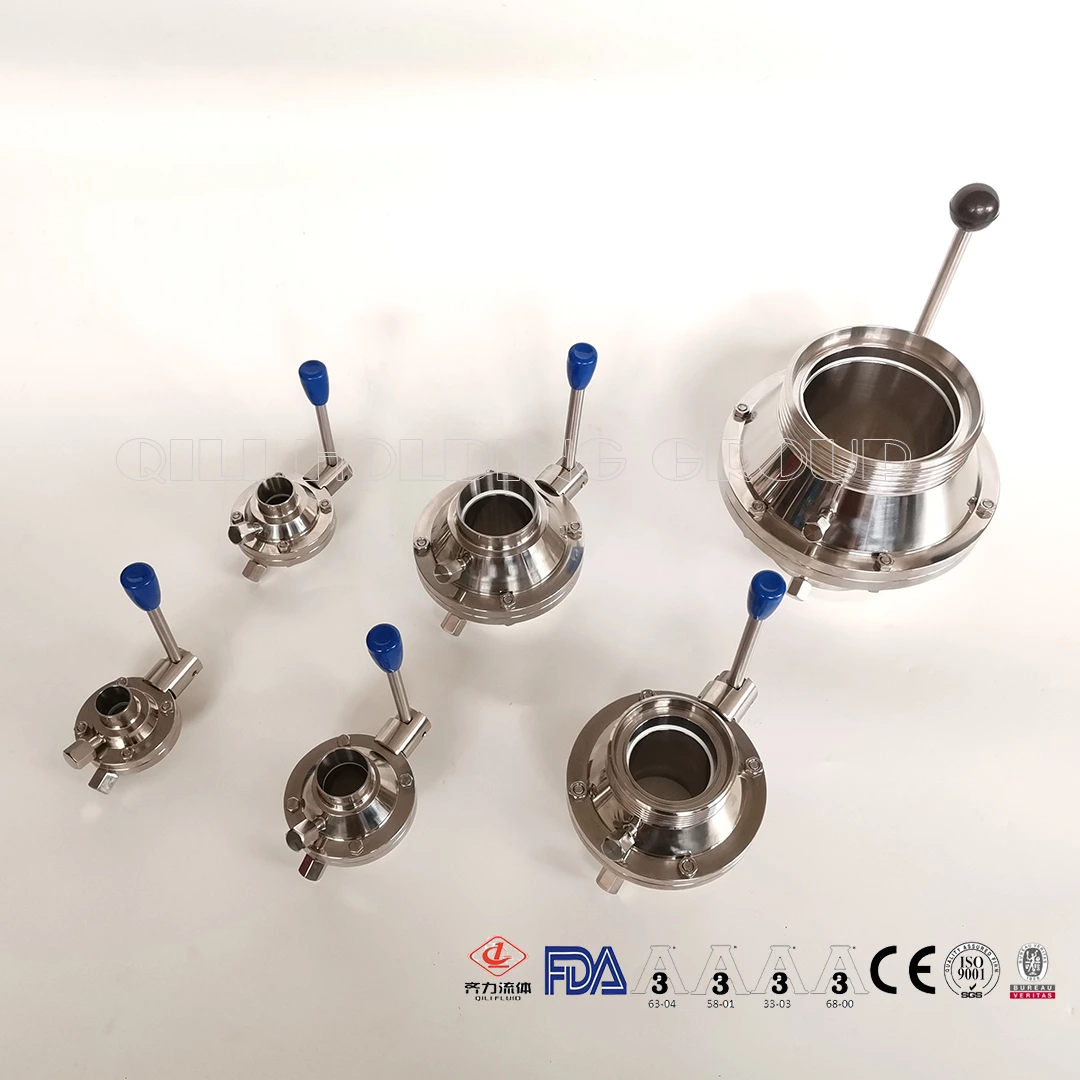

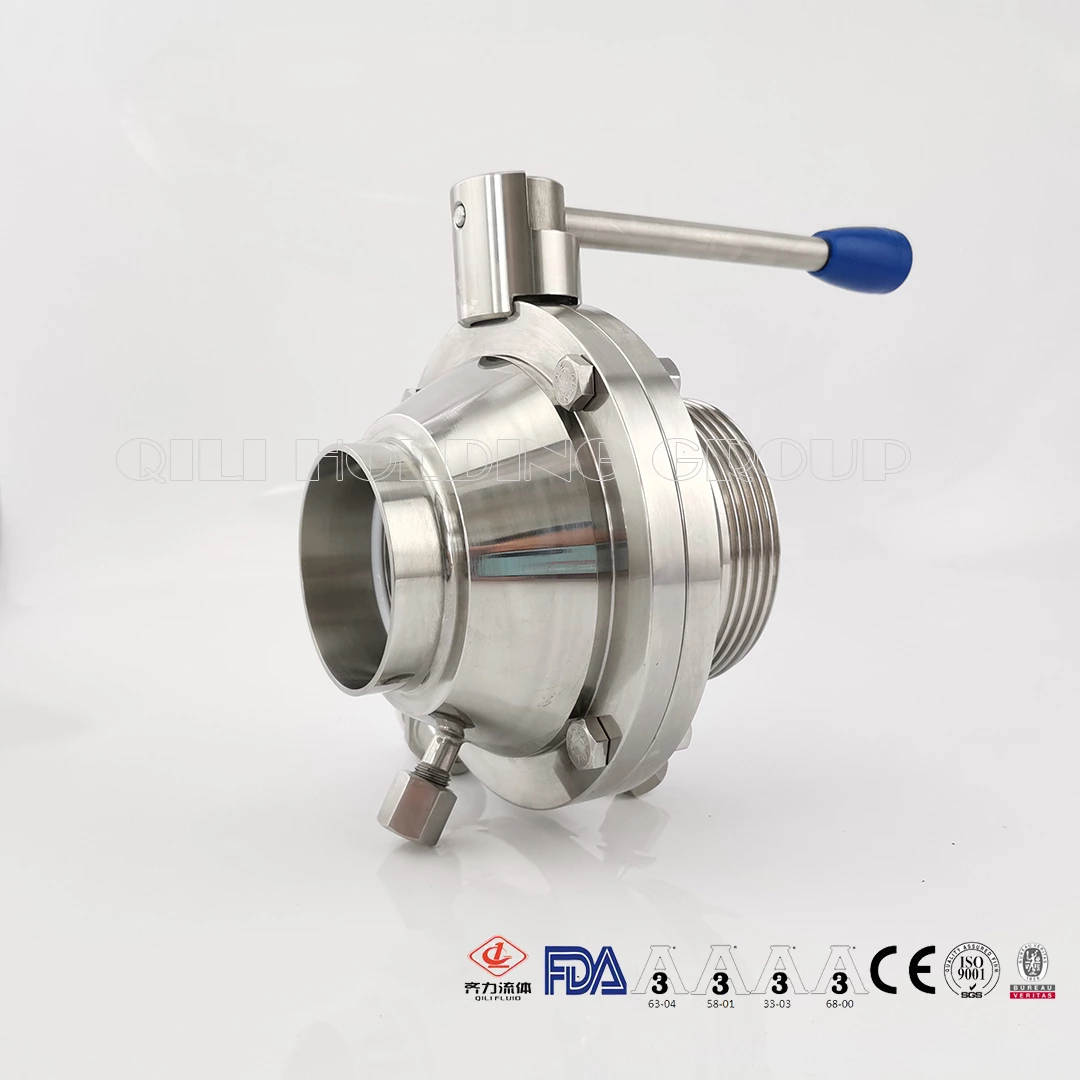

  • Name:Sanitary SS304 SS316L  Weld Thread Clamp Ends Butterfly Type Ball Valve with Pull Handle for CIP System
  • Size:Dn15-150 and 1"-6"
  • Connection way:Tri clamp,weld,male, flange
  • Work Pressure:8-10 bar
  • Working Temperature:-20 ~ 135° C
  • Material of Seal Surface:PTFE
  • Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics

Advantages

In 2019,Qili was fully upgrade all ball valve.the upgraded design more suitable GMP、ASM、 EBPE、EHEDG and 3A of high purity technology requirement,especially for dead space handle processing <1D to <3D requirement.  The valve is designed as an encapsulated valve, which solve the problem of liquid retention valve cavity.the valve is in biopharmaceutical , beverage processing, brewing, refinery, cosmetics and chemical industry, valve rod sealing design,Butterfly spring compensation design,encapsulated PTFE design, It has the advantage of long life ,small torque,no retention
