Sanitary Butterfly Valves Union End With Pull Handle
QILI is your source for a SS304 and SS316L Clamp Four Position Butterfly Valve to service the Bakery, Beverage, Cosmetic, Dairy, Food and Pharmaceutical Industries.

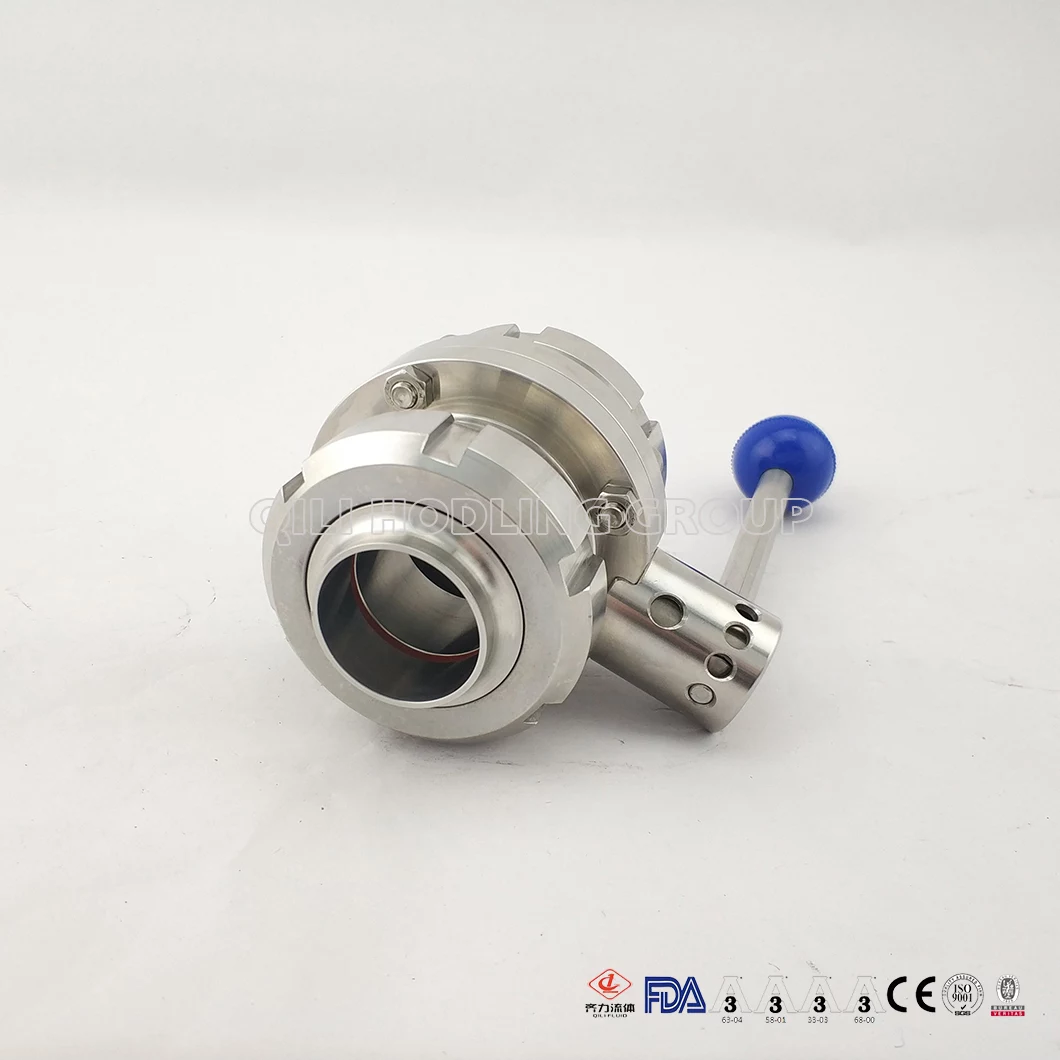

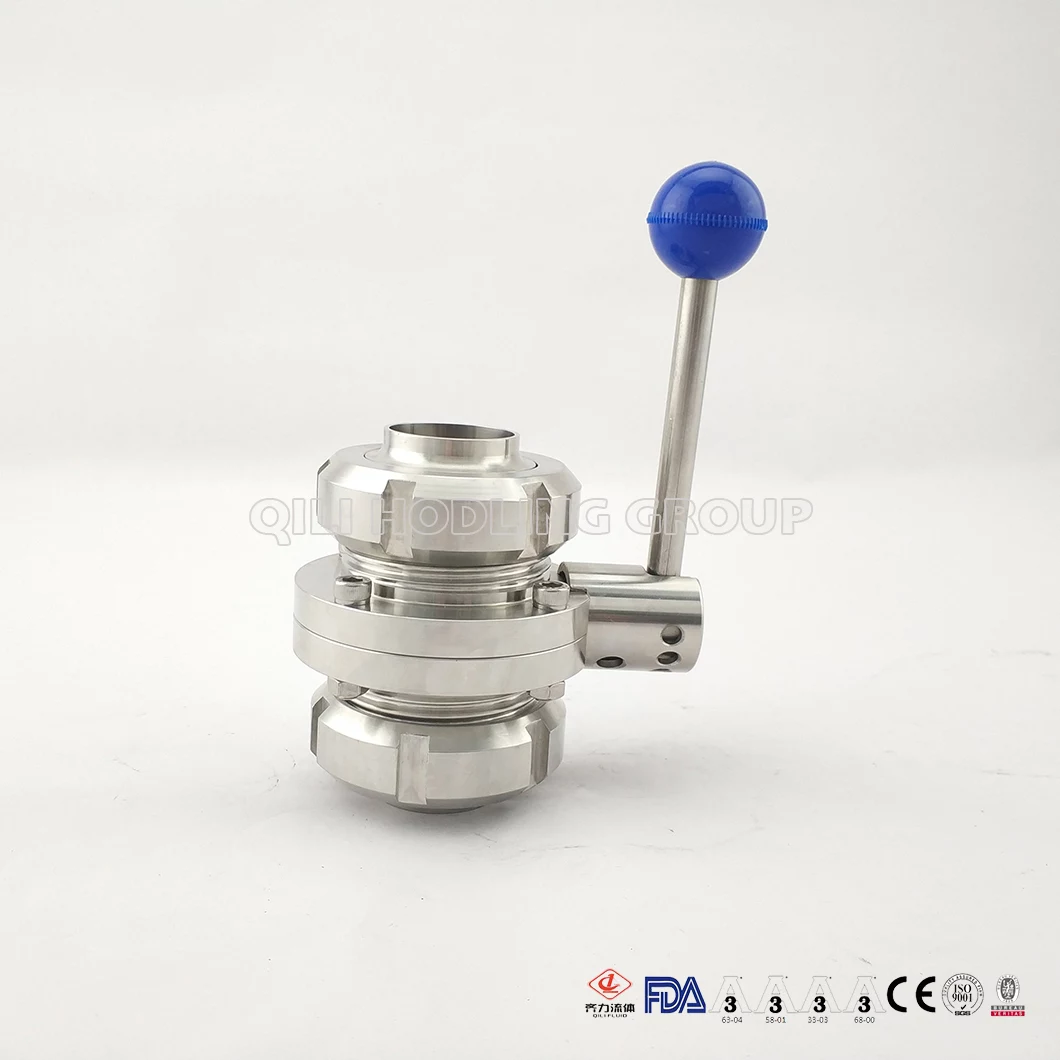

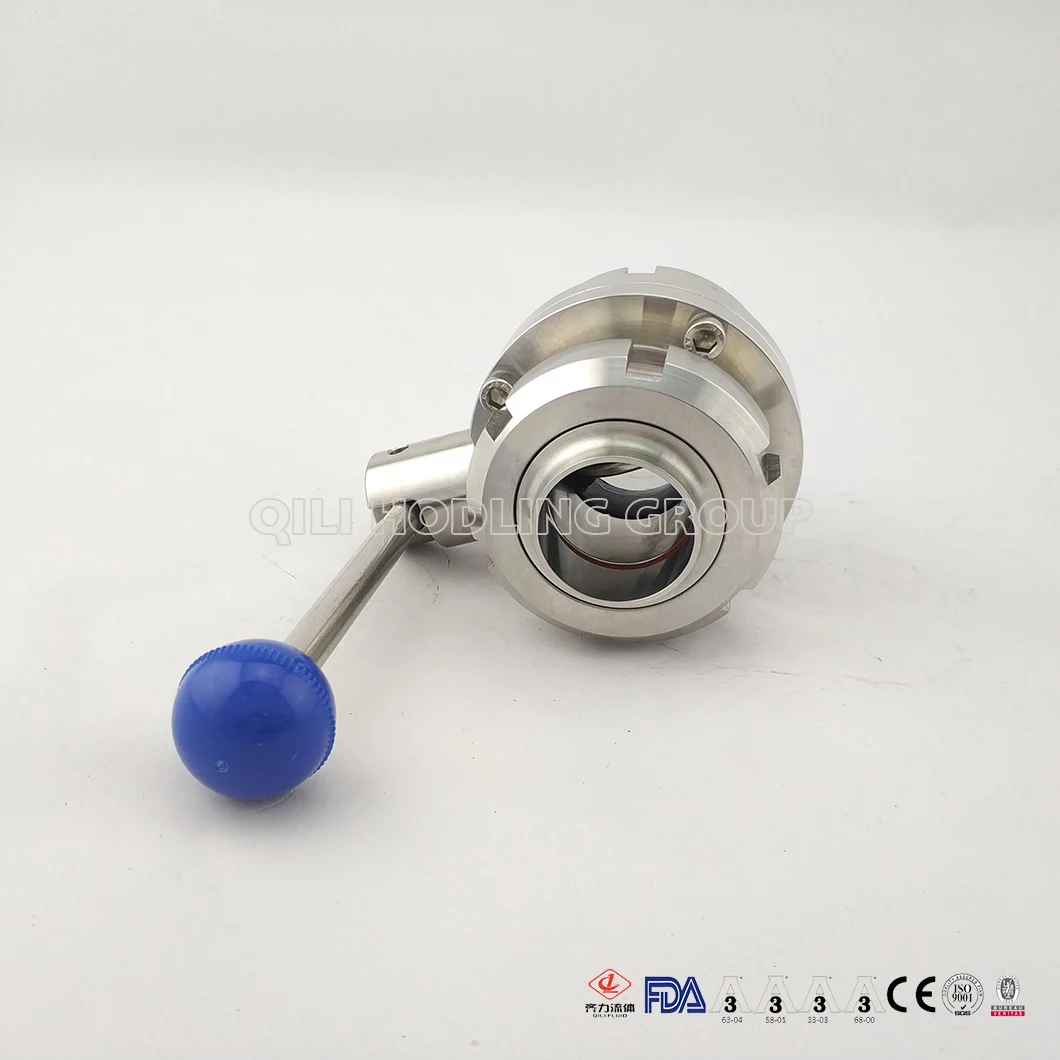

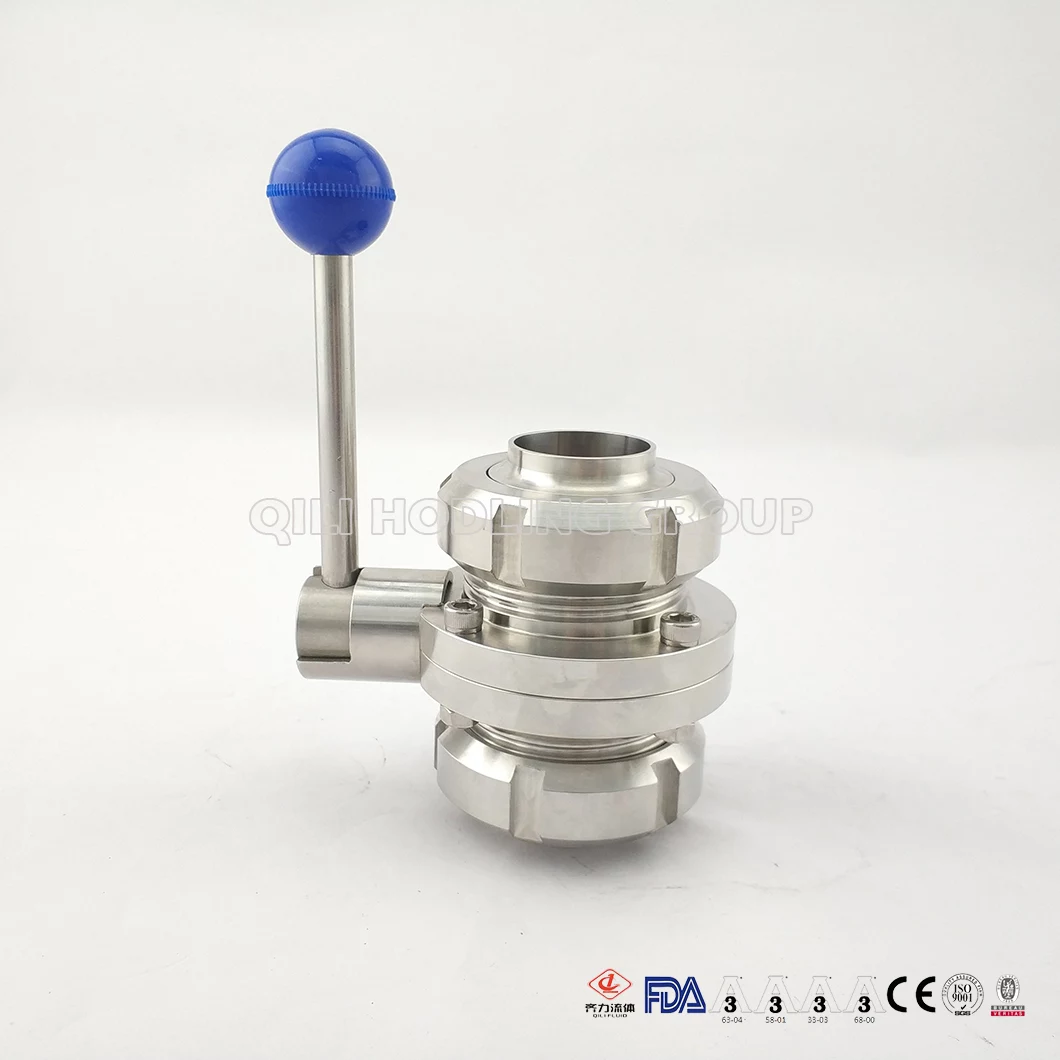

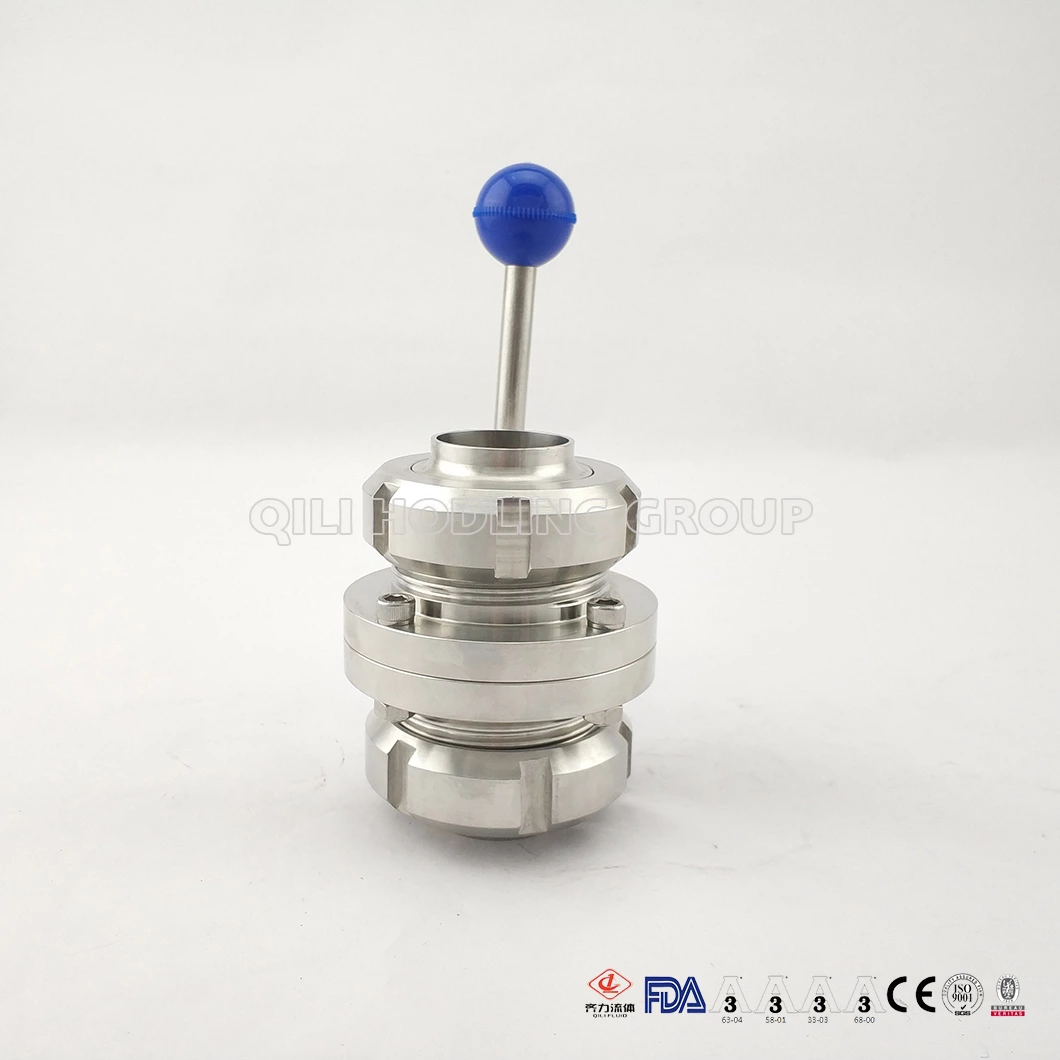

As you examine this valve with the pictures provided, look at the following features:
Our sizes ( 1" -- 6" ) valve is designed with (4) four positions so you can slowly open the valve and create less stress on the valve seat versus the open and close style of valve. Upon opening the valve, you have the option of two other positions for more or less flow depending on your needs. Since the valve comes standard with a clamp end, it is easy to assemble and disassemble when cleaning or working in a tight space.
We have provide a Black or blue Ball attached to the pull handle and interchangeability of the Handle to either side when placed in an area where a wall could be a problem and you can not open and close the valve.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Size:
- DN15-150 and 1"-6"
- Color:
- Blue , black
- Connection Type:
- Union
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM,CMQ,FPM,silicone
- Transport Package:
- Carton packaging. Wooden case packaging.
Details
| Material | Stainless steel 304, 316L |
| Connection form | Union |
| Structure | Single-eccentric sealing |
| Nminal Pressure | Mid Pressure (2.5mpa) |
| Work Temperature | -20 ~ 135°C |
| Size | DN15-150 or 1"-6" |
| Seal | Silicon,EPDM FPM |
| Medium | Beer,Dairy,Beverage,Pharmacy,Cosmetics. |
| Application | Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry. |
| Standard | DIN/SMS/3A/ISO/IDF |
| Packaging | Carton packaging. Wooden case packaging. |
