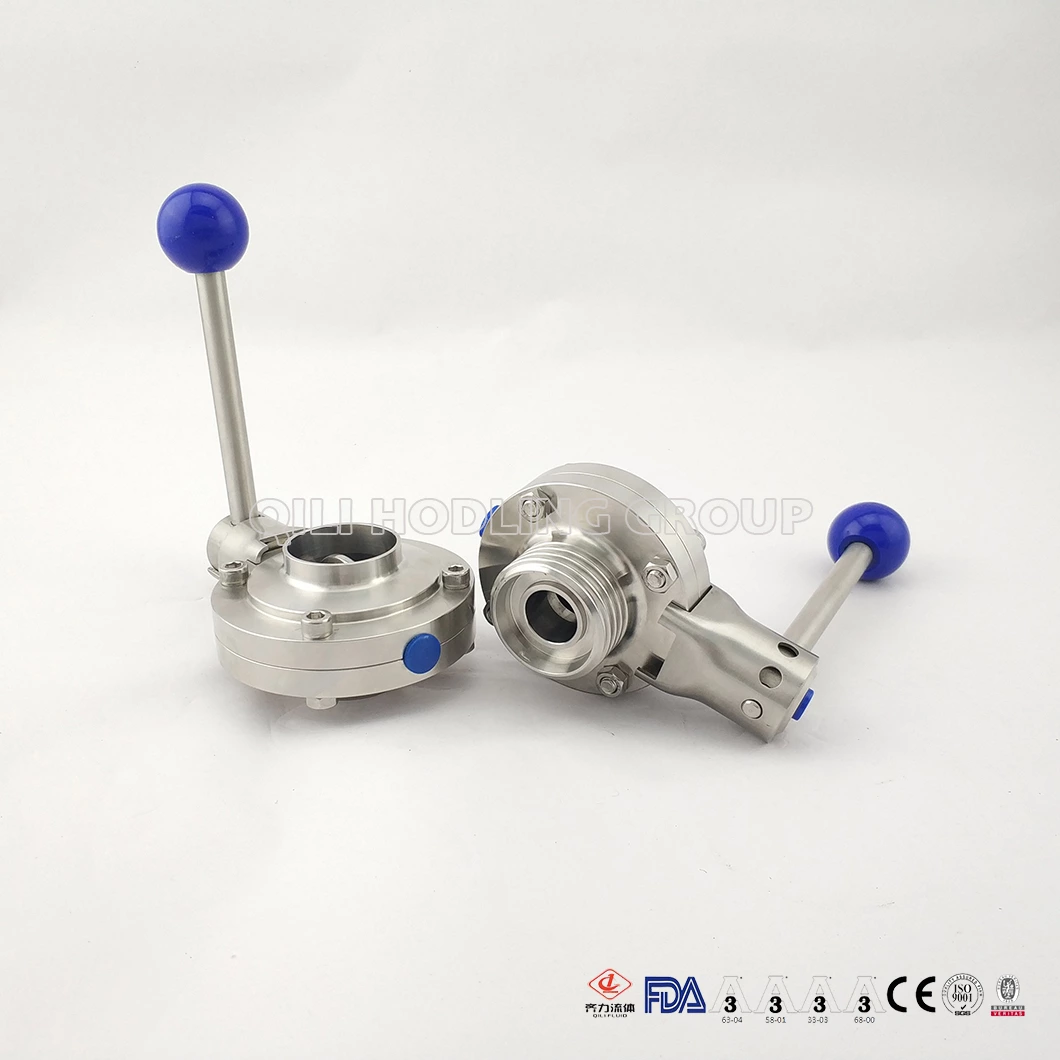

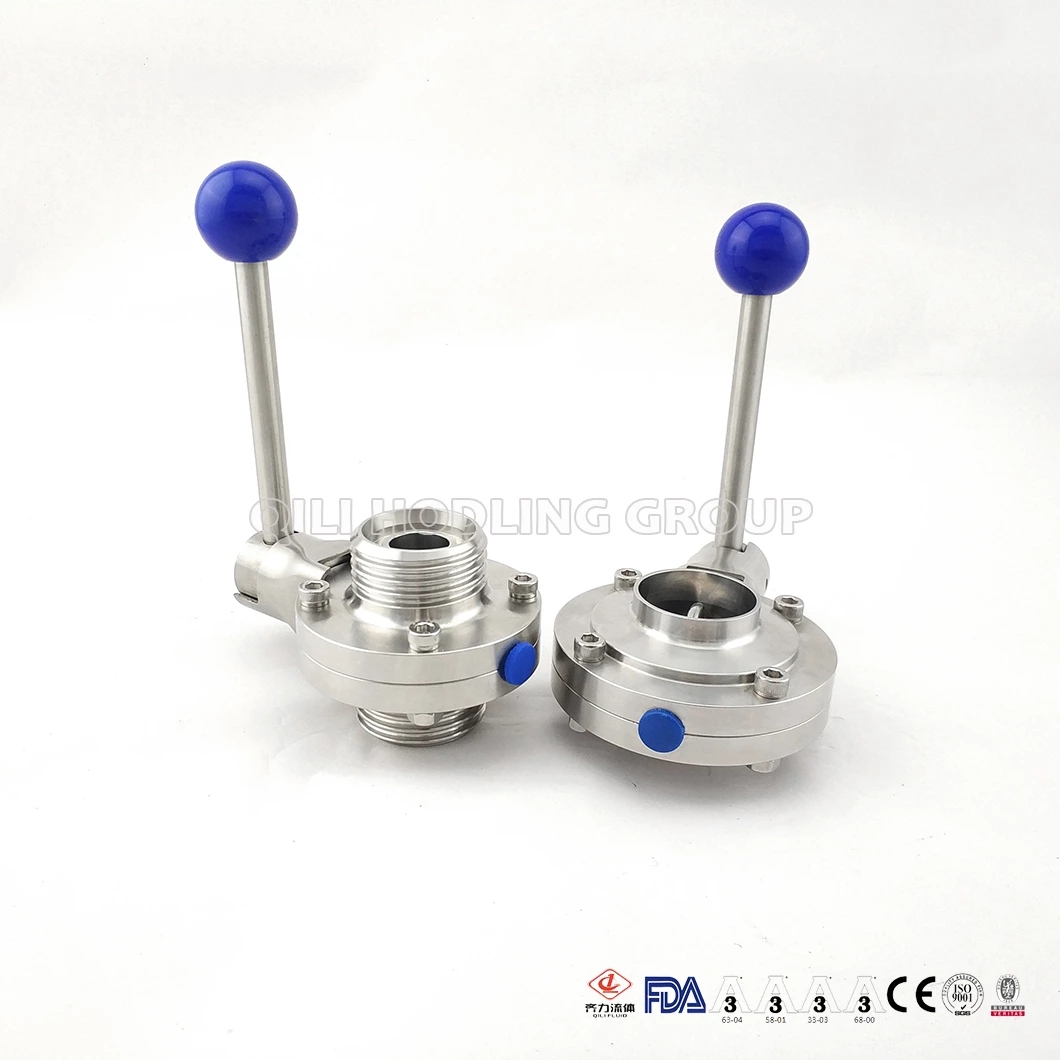

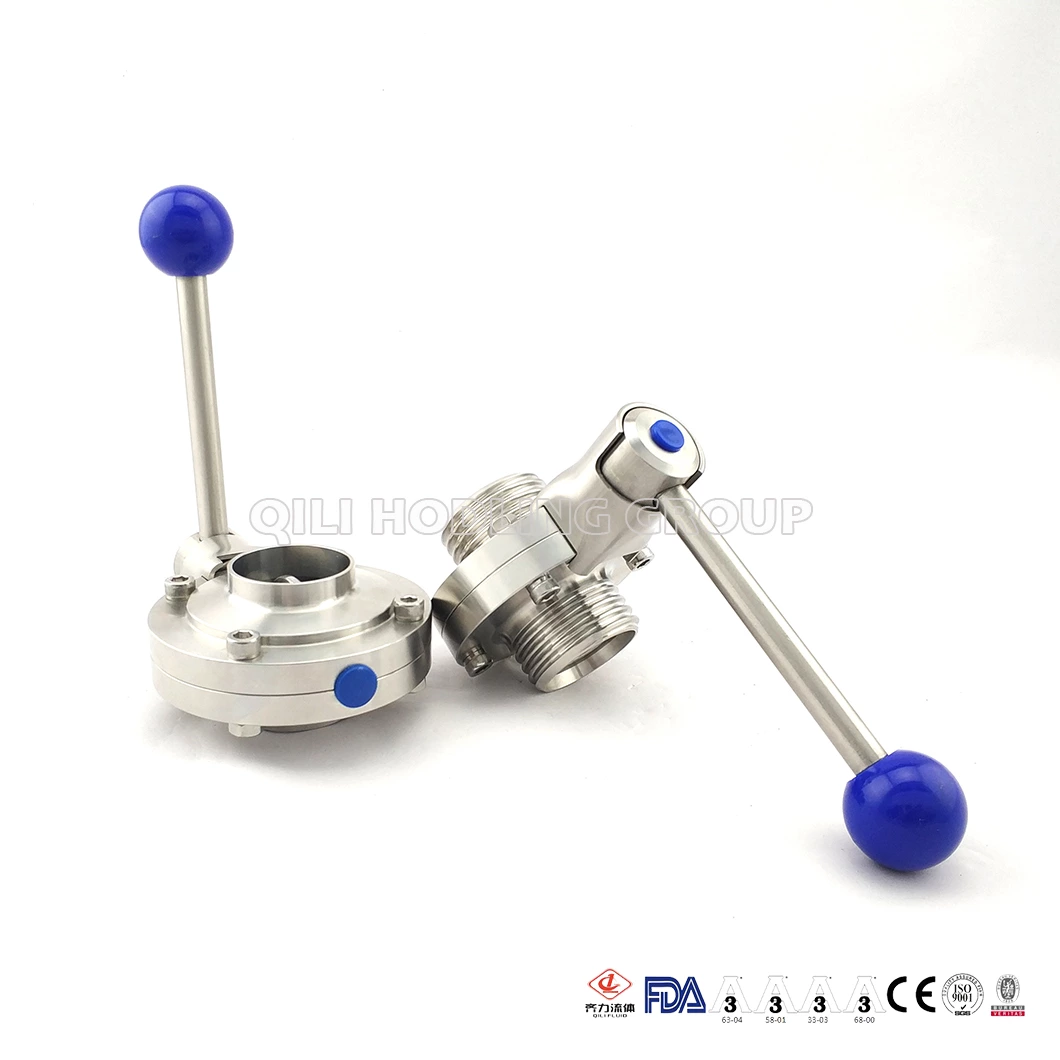

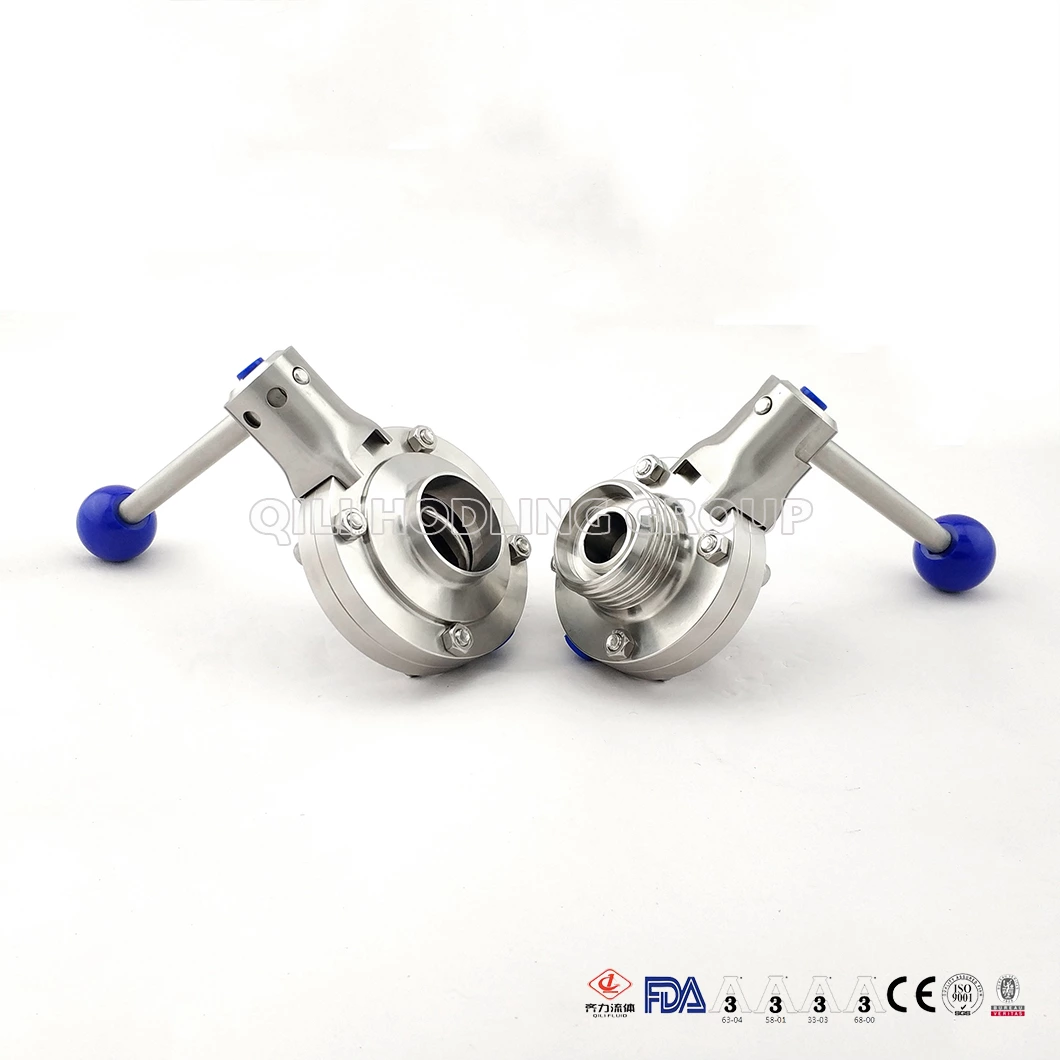

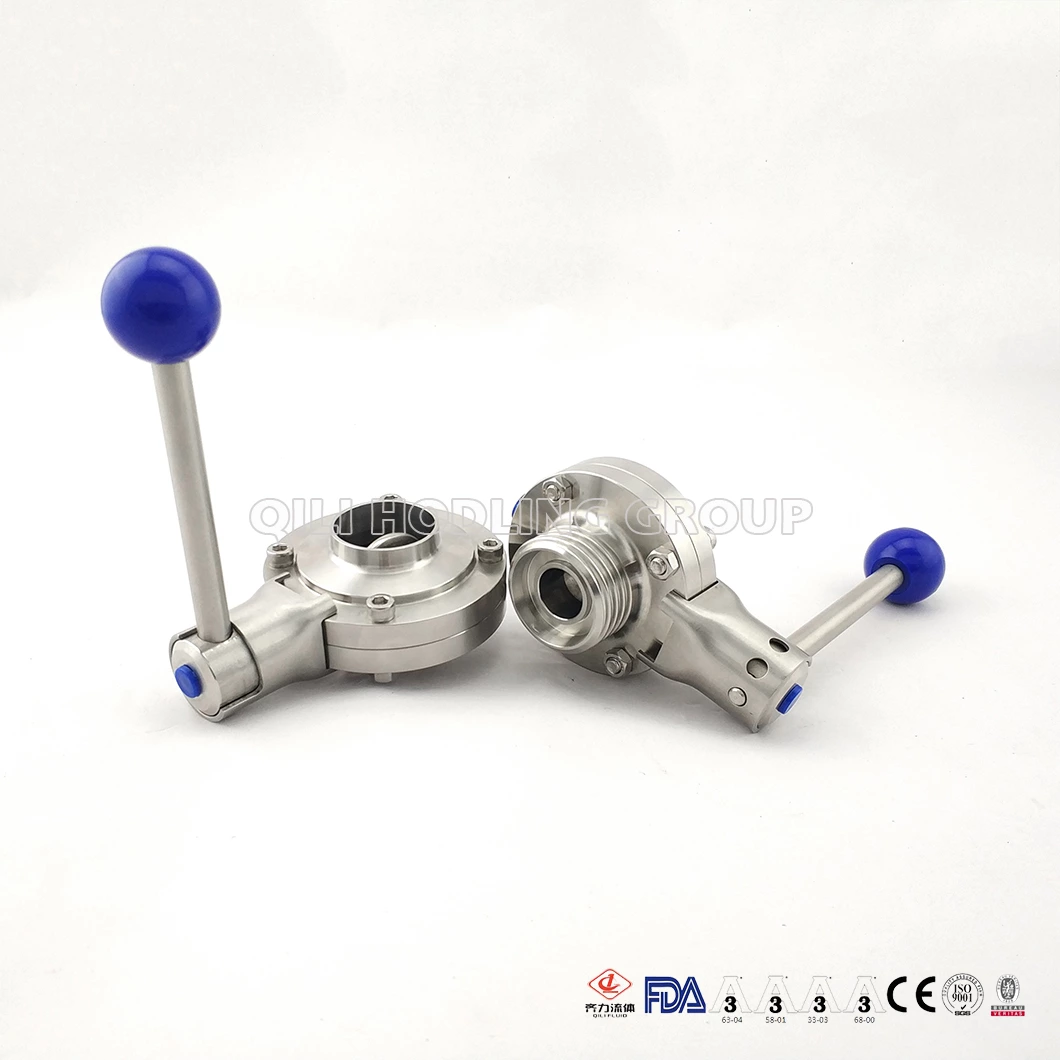

Russia Market Sanitary Stainless Steel Butterfly Valve with Manual Handle
QiLi Sanitary Butterfly Valves offer great durability and ease of use for a wide range of services. Easy to install and maintain, butterfly valves close under pressure to form a leak-tight seal.
• All Stainless Construction: Forged, precision-machined body by CNC and electropolished disc
• Sanitary finish
• FDA-Approved materials: EPDM, FKM, Silicone,NBR
• Complete line of manual and air actuators with control top options
• Symmetric, metal-to-metal body interface will not over-compress body gasket
• Visual indication of open/closed position
• Open bottom stem seal for positive leak detection
• S-Line, Buttweld ,Threaded and intermediate flange connections available
Application:
Food process, Milk process, Beer brewage, Juice process and Bio-pharmacy.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld
- Size:
- 1/2-6",DN25-DN100
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons
Drawings
Details
| Description | Russia Market Sanitary Stainless Steel Butterfly Valve with Manual Handle |
| Body Material | Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404) |
| Actuator Material | Stainless Steel 304 |
| Seal Material | EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150 |
| Finishing | Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | 1/2” -- 6",DN25-DN100 |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A , SMS , ASME BPE, ISO, DIN, BS |
| Features | 100% hydraulic tested / 100% inspected |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
