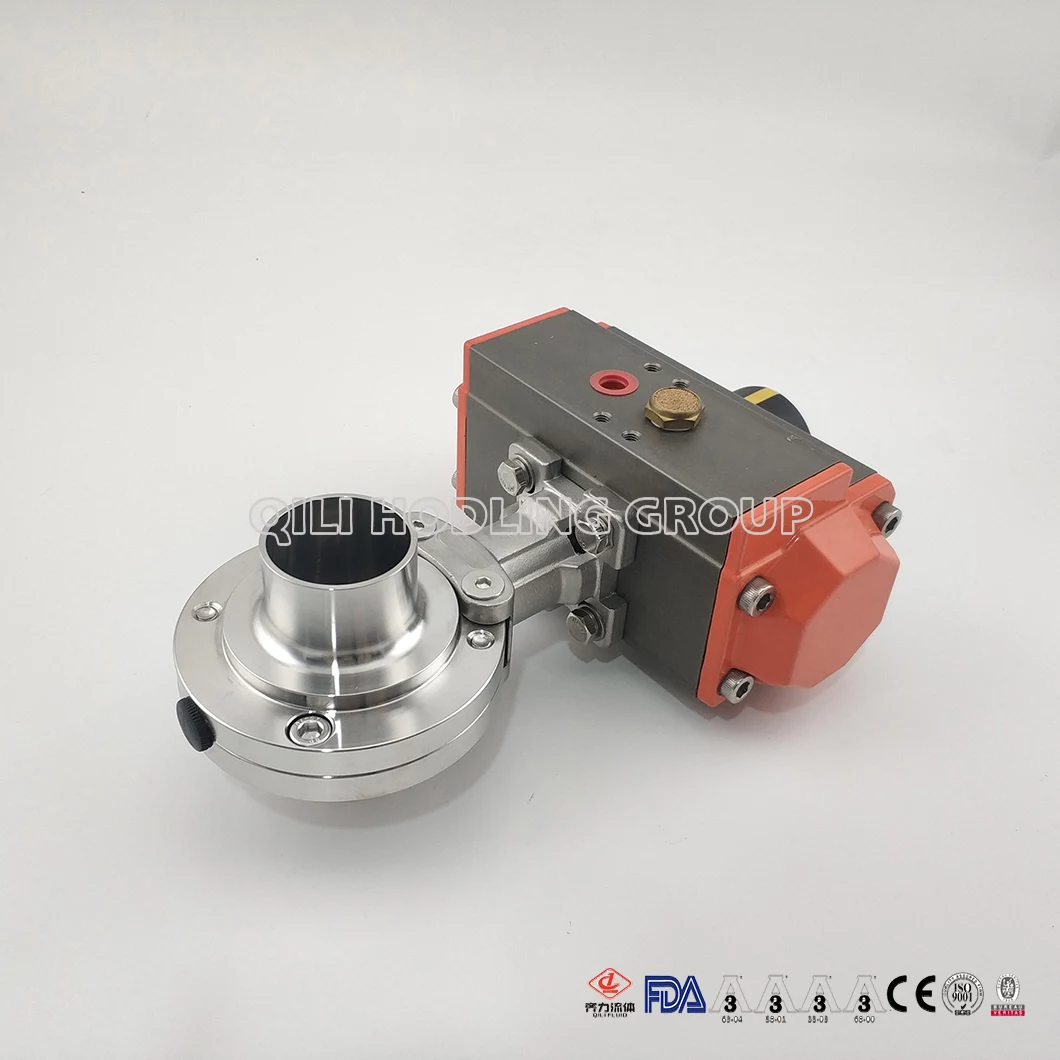

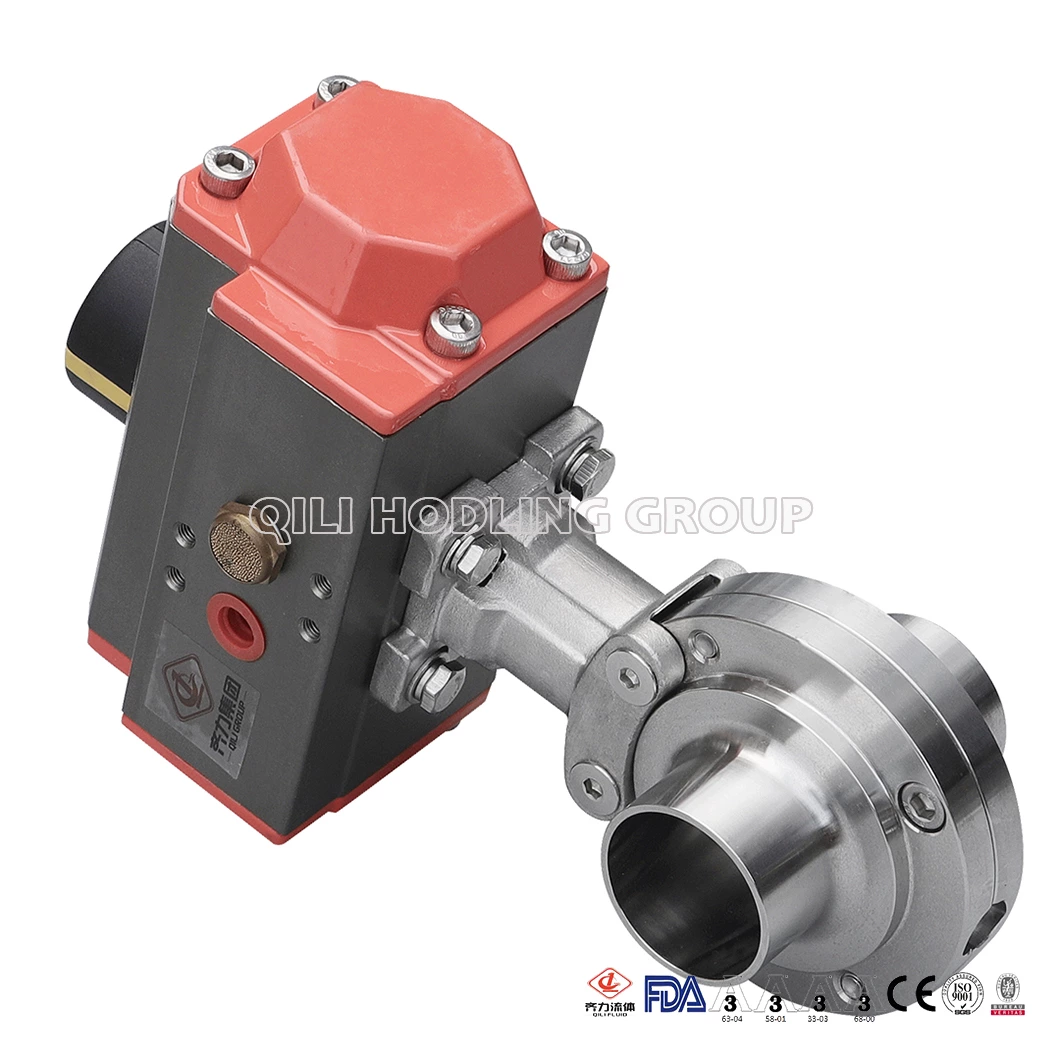

Pneumatic Sanitary Welded Type Butterfly Valve
Pneumatic Sanitary Welded Type Butterfly Valve is our strong product. We produce it many years, and export them to many countries with high praises and repurchasing. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- 1/2"-6"
- Color:
- Blue , black
- Sales Models:
- wholesale or retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons
Details
| Description | Pneumatic Sanitary Welded Type Butterfly Valve |
| Material | Stainless steel 304, 316L |
| Structure | Centre sealing |
| Seal Form | Force Sealed |
| Driving Mode | Pneumatic |
| Nominal Pressure | Mid-Pressure (2.5mpa) |
| Work Temperature | -20 ~ 135°C |
| Size | 1/2"-6" |
| Seal | Silicon for Germany imports |
| Medium | Beer,Dairy,Beverage,Pharmacy,Cosmetics. |
| Application | Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry. |
| Standard | DIN/SMS/3A/ISO/IDF |
| Packaging | Carton packaging. Wooden case packaging. |
Drawings
