Hygienic 304 & 316 Tri Clover Extention Butterfly Valves
- 304SS, 304L, 316, 316L
- Blue , black
- Wave, straight
- Connection Type:
- Weld, flange, thread, clamped
- Sales Models:
- Wholesale and Retail
QILI is your source for a SS304 and SS316L Clamp Four Position Butterfly Valve to service the Bakery, Beverage, Cosmetic, Dairy, Food and Pharmaceutical Industries.

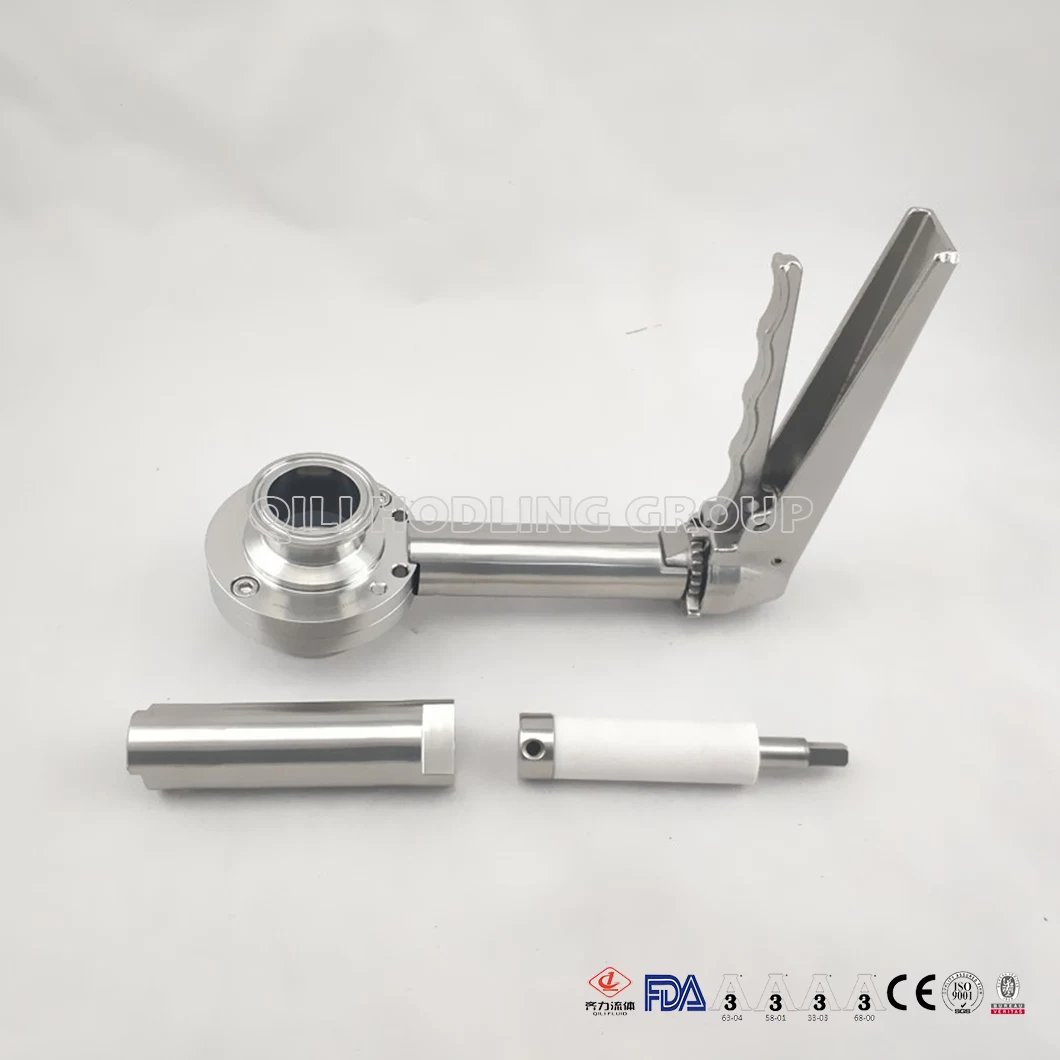

As you examine this valve with the pictures provided, look at the following features:
Our sizes ( 1" -- 6" ) valve is designed with (4) four positions so you can slowly open the valve and create less stress on the valve seat versus the open and close style of valve. Upon opening the valve, you have the option of two other positions for more or less flow depending on your needs. Since the valve comes standard with a clamp end, it is easy to assemble and disassemble when cleaning or working in a tight space.
We have provide a Black or blue Ball attached to the pull handle and interchangeability of the Handle to either side when placed in an area where a wall could be a problem and you can not open and close the valve.
QILI's Clamp Four Position Butterfly Valve is 100 percent Hydraulic Pressure Tested and 100 percent inspected, no special tools needed in the field to work on the valve, Silicone seats are standard. Check out the line space of each size of the valve and you will see that it matches with a few of the major competitors.
As for the finish and all wetted surface, the sanitary finish is to a 25 Ra or better. We have each valve capped and bagged so you have no dings on the ends as well as permanently etching the size, alloy and heat number for full trace ability.
1) Material: SS304, SS304L, SS316L
2) Seal: Silicon, EPDM FPM
3) Working temperature: -20 ~ 135° C
4) Connection: Weled, quick-installed, thread, flange
5) SIZE: DN15-150 and 1"-6"
6) Standards: DIN, SMS, 3A, ISO
7) Medium: Beer, Dairy, Beverage, Pharmacy, Cosmetics,
8) Packing: Standard export packing
We specilize in sanitary butterfly valve, check valve, elbow, union, pipes, pipe fittings and pumps ect.
OEM is welcome
1.Are you a trader or manufactory?
We are a manufactory (Own Forging workshop and CNC machining workshop )
2.Can your products reach to FDA , CE and 3A requirements?
Yes, all of our material can reach to the requirements of FDA, ISO and 3A Certificate).
3.We can supply:
Sanitary Butterfly Valve, Sanitary Check Valve and Diaphragm Valves, as well as Various Tank Accessories: Sight Glass, Strainers/Filter, Cleaning Ball, And other Pipe Fittings, (Pipe Unions: SMS, DIN, IDF, RJT, 3A,DS; Fittings: Ferrule,Elbow, Tee, Reducer and all other Non-standrad fittings), each products are tested well by our strictly Quality Control System, and we also have excellent service to support you and promote your business.
For large quantity, as usual, it can be sent out within 20-40 days.
Small parcel will be dispatched by DHL, FedEx, UPS OR TNT Courier.
Big cargo will be delivered by Air freight or By Sea.
Payment methods: L/C, T/ T, Paypal,Western Union
We can provide samples production and service. Usually 2 to 5 days, the sample can be sent to your hands. We will choose the shipping way as you required: By sea, by air or by express. Any question about samples, please contact us.
7.For OEM products:
We will finish the production within 20-40 days after payment has been confirmed.
About delivery and shipping:
We will choose the delivery way as you required: By sea, by air, by express ect. Save your cost is our mission.
Any question or problem will be respond within 12 hours.
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you.
All the products are calibrated with real working condition, and tested before shipping as qualified product.
12.Purpose:Attitude is everything.
