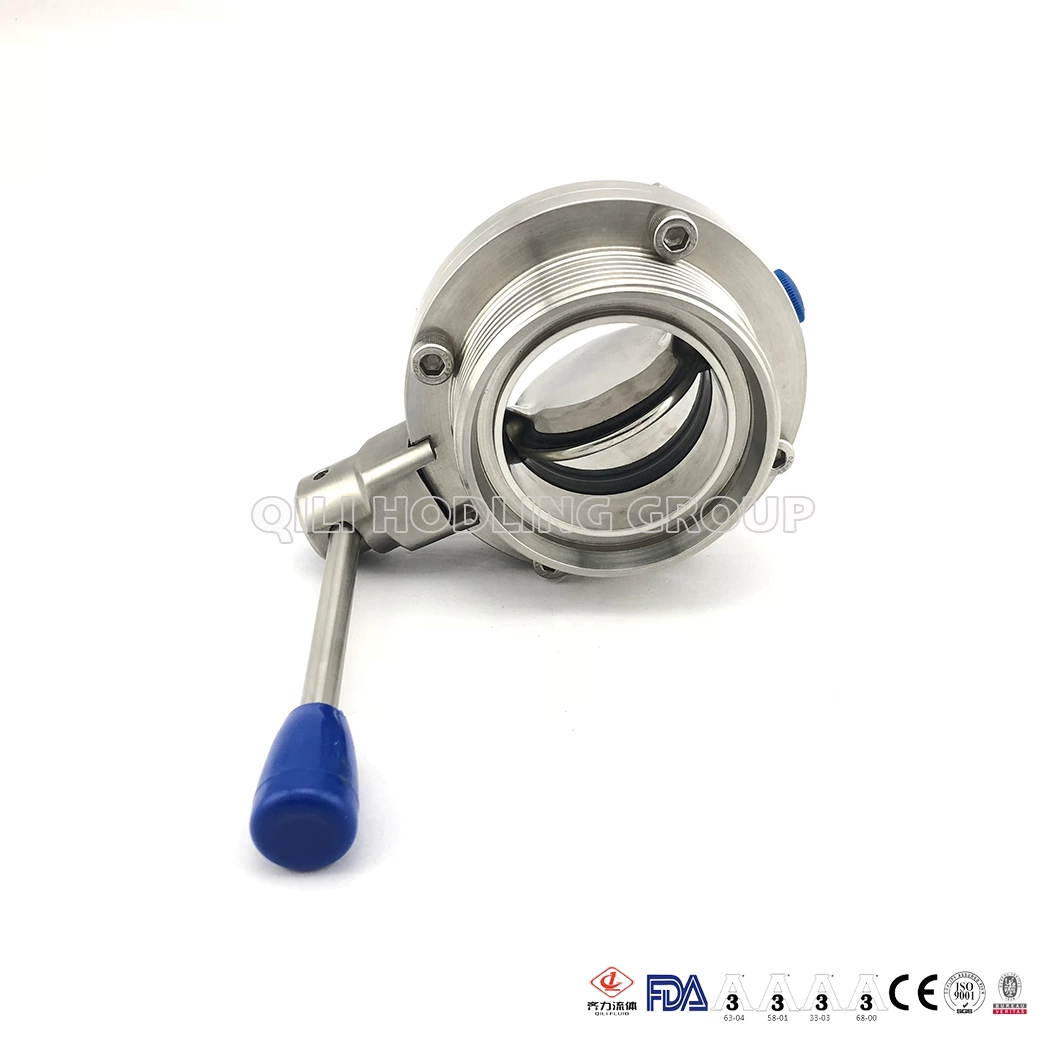

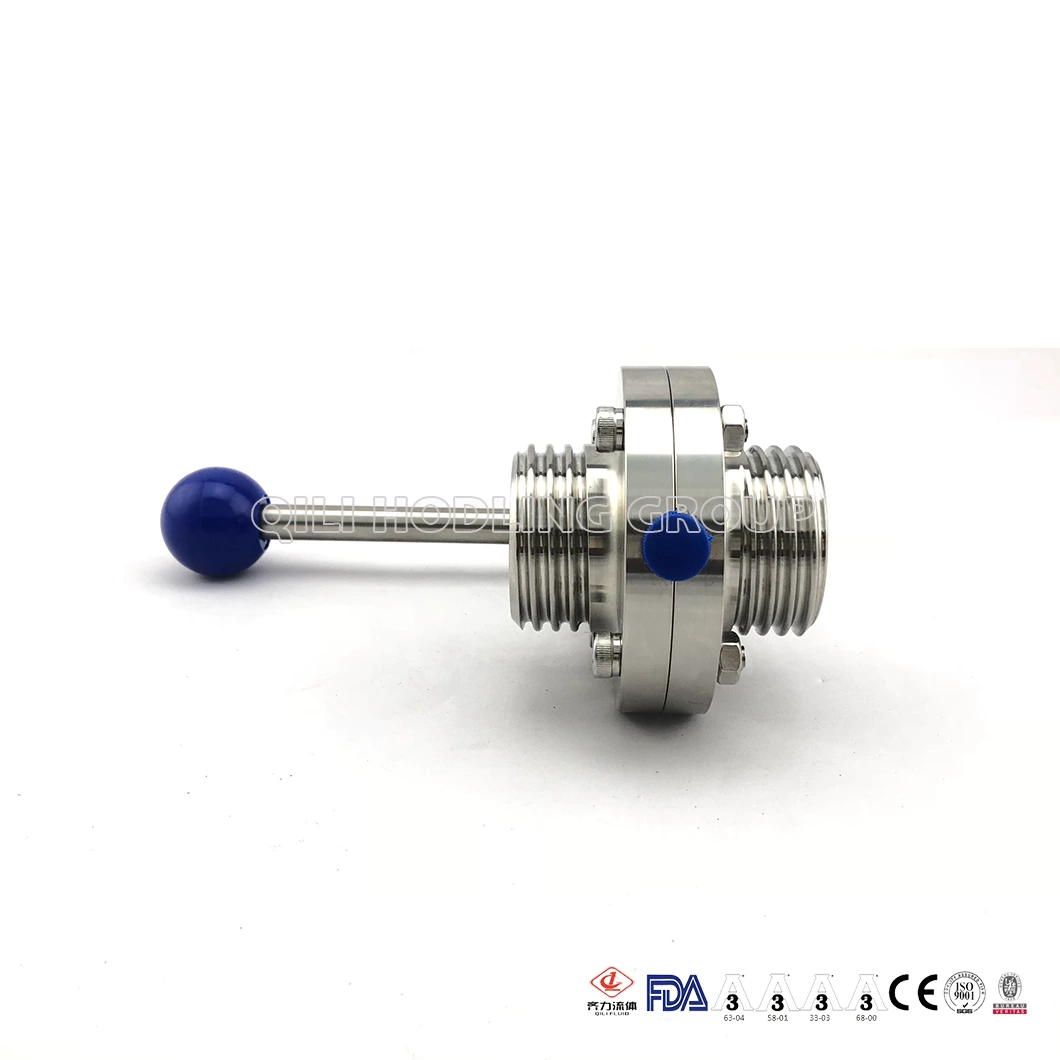

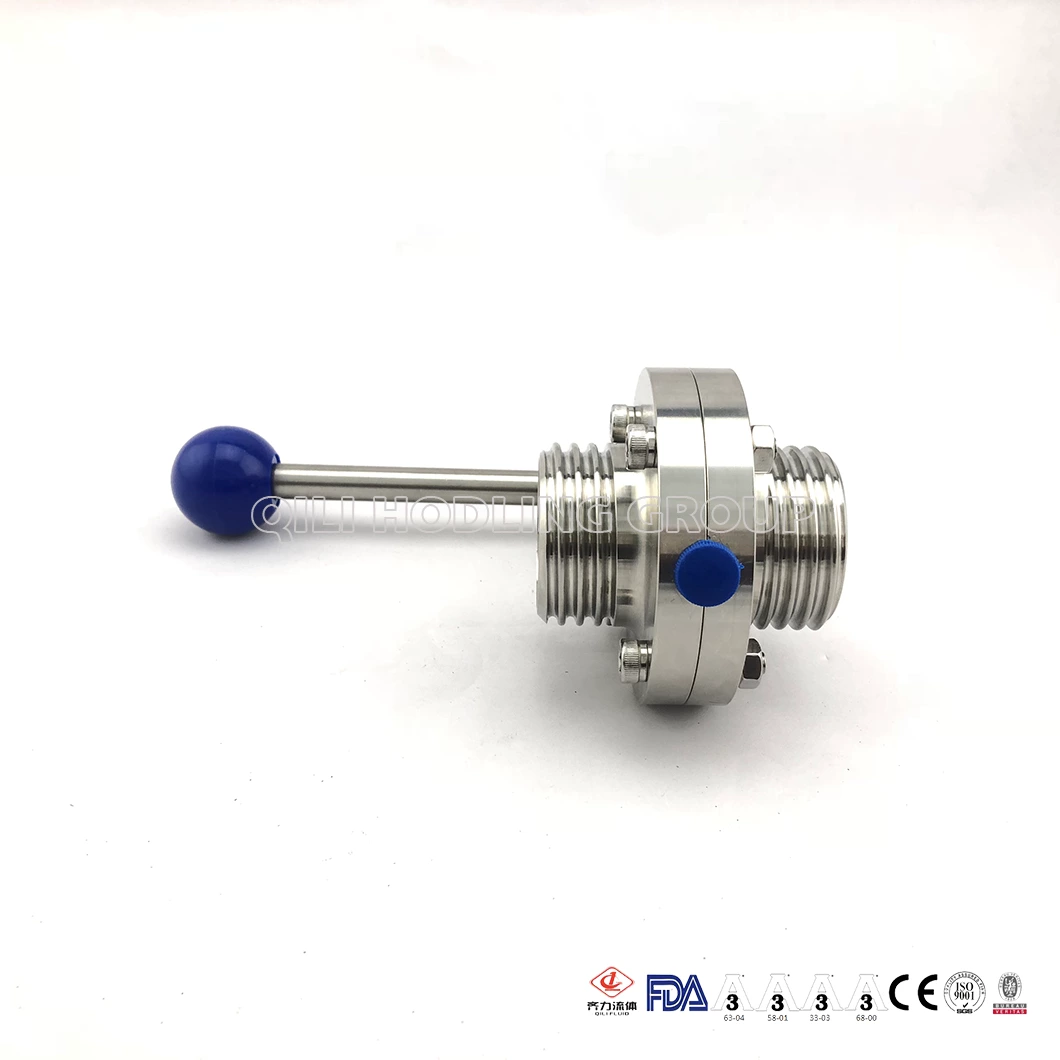

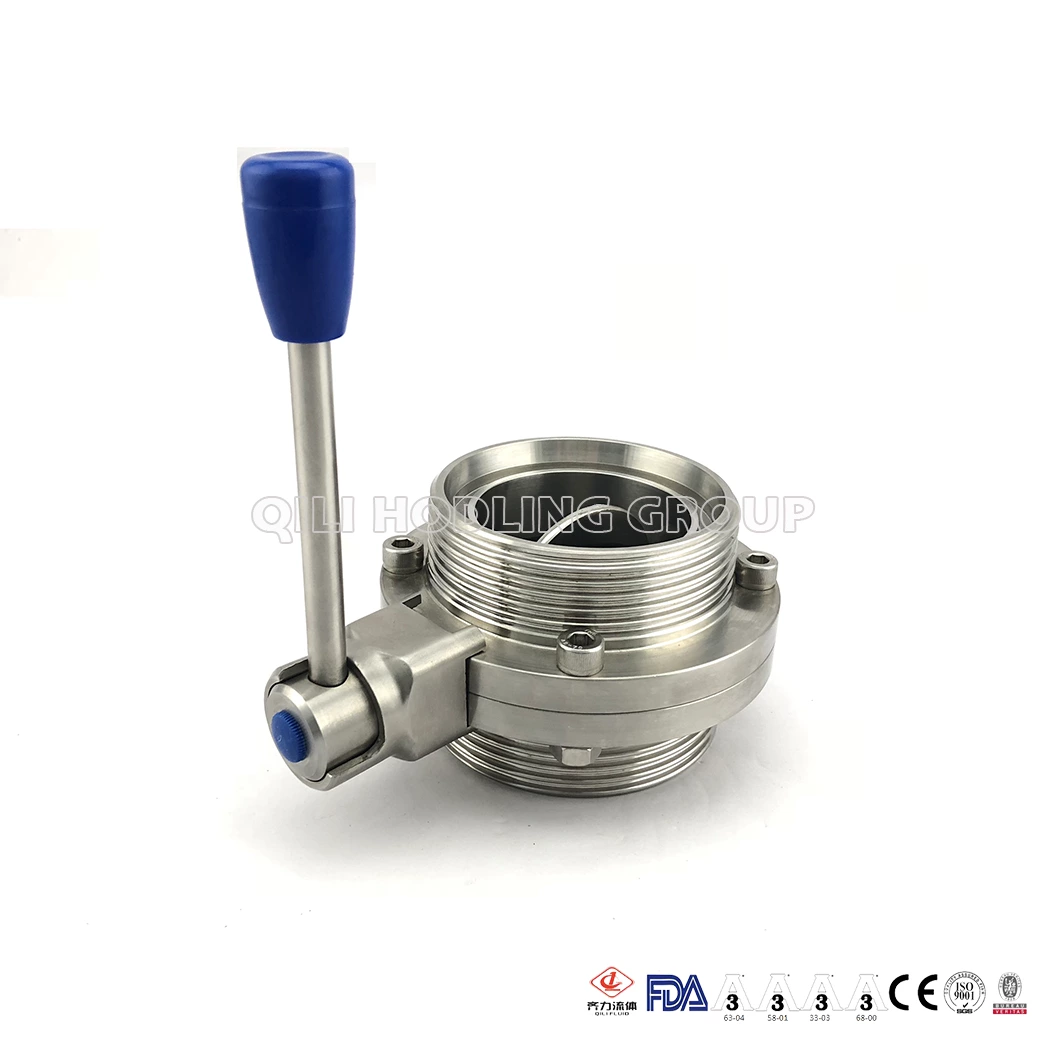

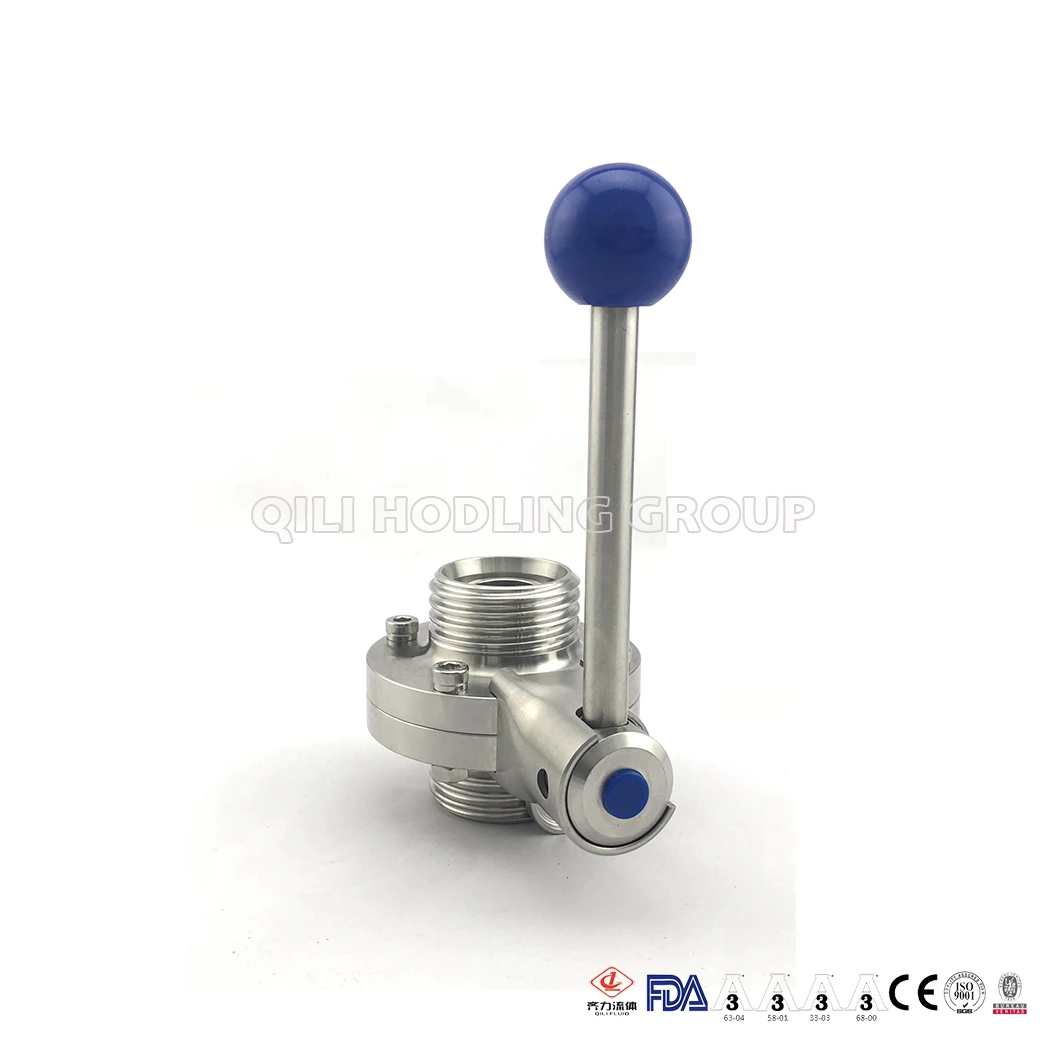

Sanitary Butterfly Valve

Hot-Selling 304/316L Sanitary Stainless Steel Welding/Thread Butterfly Valves with Handle

Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Connection Type:
Weld, flange, thread, clamped
Sales Models:
Wholesale and Retail
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM
Transport Package:
cartons
Contact Now
Hot-Selling 304/316L Sanitary Stainless Steel Welding/Thread Butterfly Valves with Handle
Hot-Selling 304/316L Sanitary Stainless Steel Welding/Thread Butterfly Valves with Handle Hot-Selling 304/316L Sanitary Stainless Steel Welding/Thread Butterfly Valves with Handle Hot-Selling 304/316L Sanitary Stainless Steel Welding/Thread Butterfly Valves with Handle Hot-Selling 304/316L Sanitary Stainless Steel Welding/Thread Butterfly Valves with Handle Hot-Selling 304/316L Sanitary Stainless Steel Welding/Thread Butterfly Valves with Handle Hot-Selling 304/316L Sanitary Stainless Steel Welding/Thread Butterfly Valves with Handle

Details

  • Material: forged, 304 or 316L
  • Size: 1/2"-6"
  • Seal Material: Silicone for Germany imports
  • Handle:Round Pull Handle
  • Body Material:Forged 304(1.4301) or 316L(1.4404) By CNC machine
  • Disk Material:Forged 304(1.4301) or 316L(1.4404) By CNC machine
  • Handle Material:304(1.4301)
  • Seal Material:Silicone, EPDM,Viton and NBR is available.
  • Standard: Silicone for Germany imports
  • End Standed:DIN,SMA,3A,BS,IDF,RJT..etc.
  • End Size:DN10-DN150 or 1/2"-6"
  • Working pressure:-0.9 to 20 Bar for forged body
  • Working temperature:-10 ℃ up to 150 ℃
