Sanitary Butterfly Valve

B5101 Series Sanitary Stainless Steel Butterfly Valve With Pull Handle Weld End

Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM
Transport Package:
cartons
Contact Now

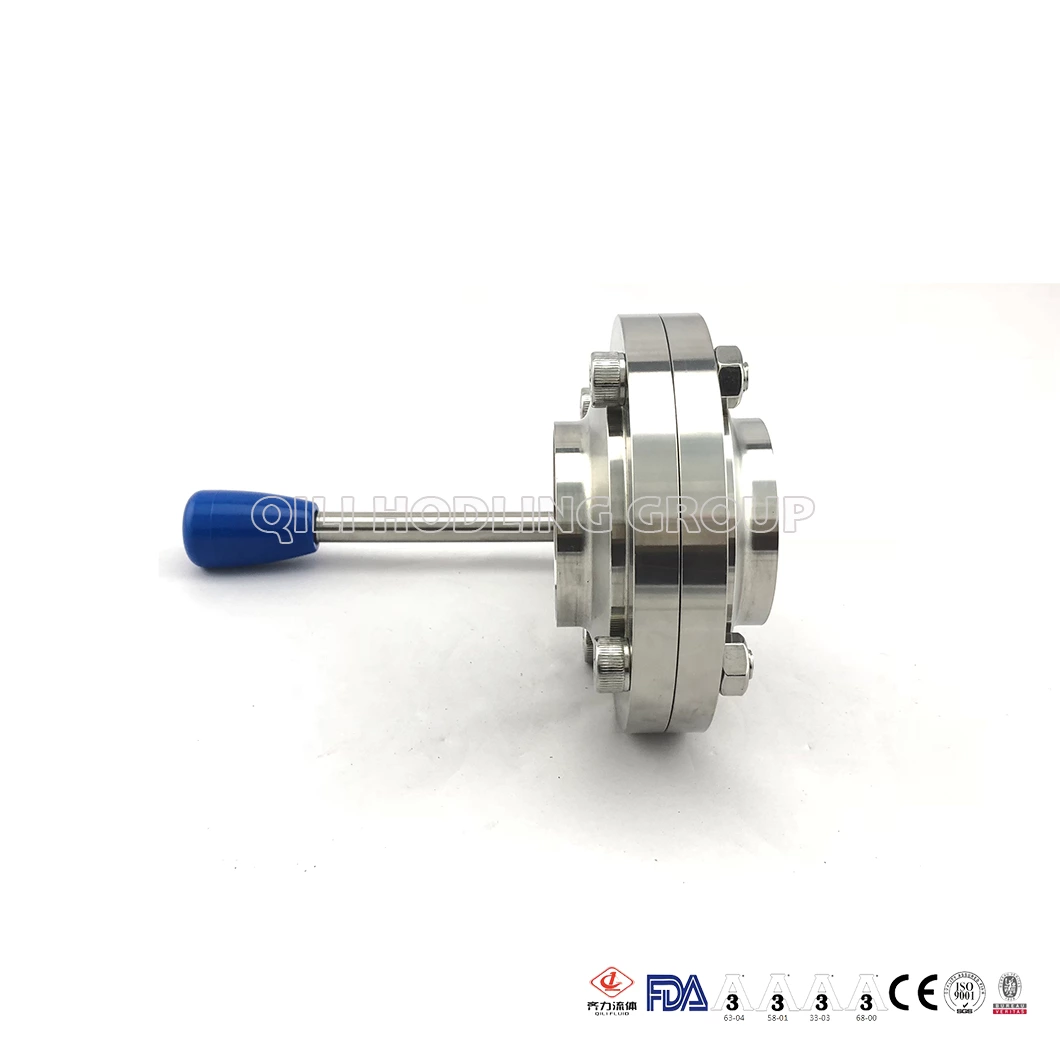

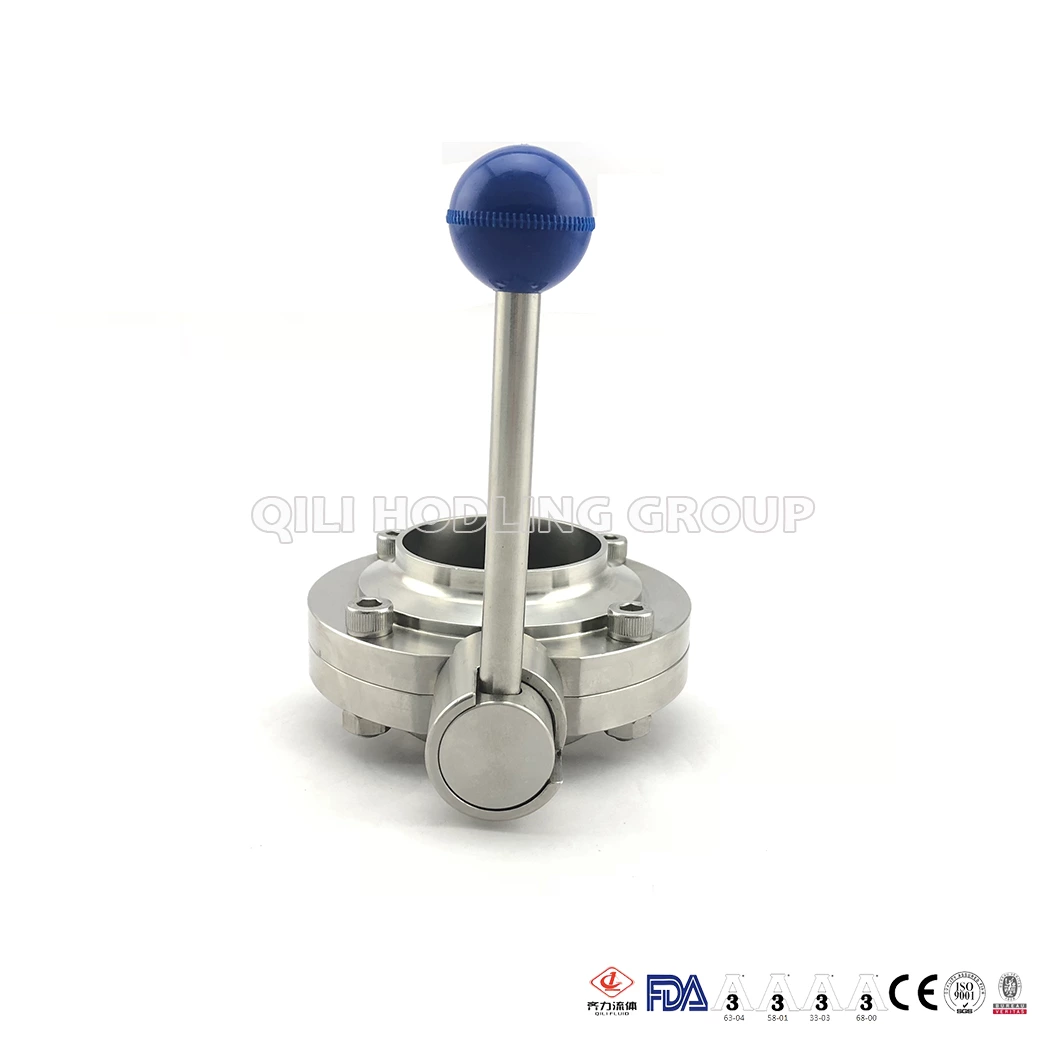

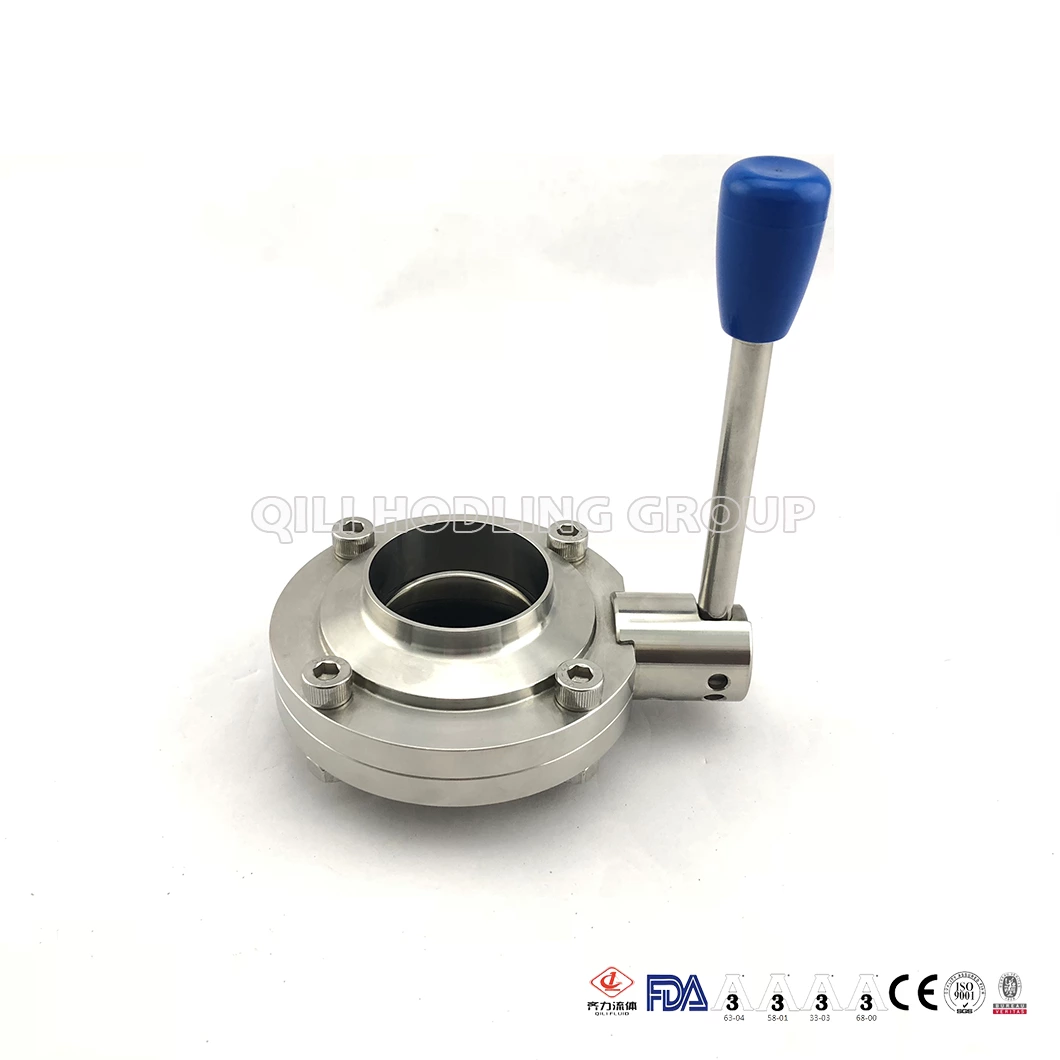

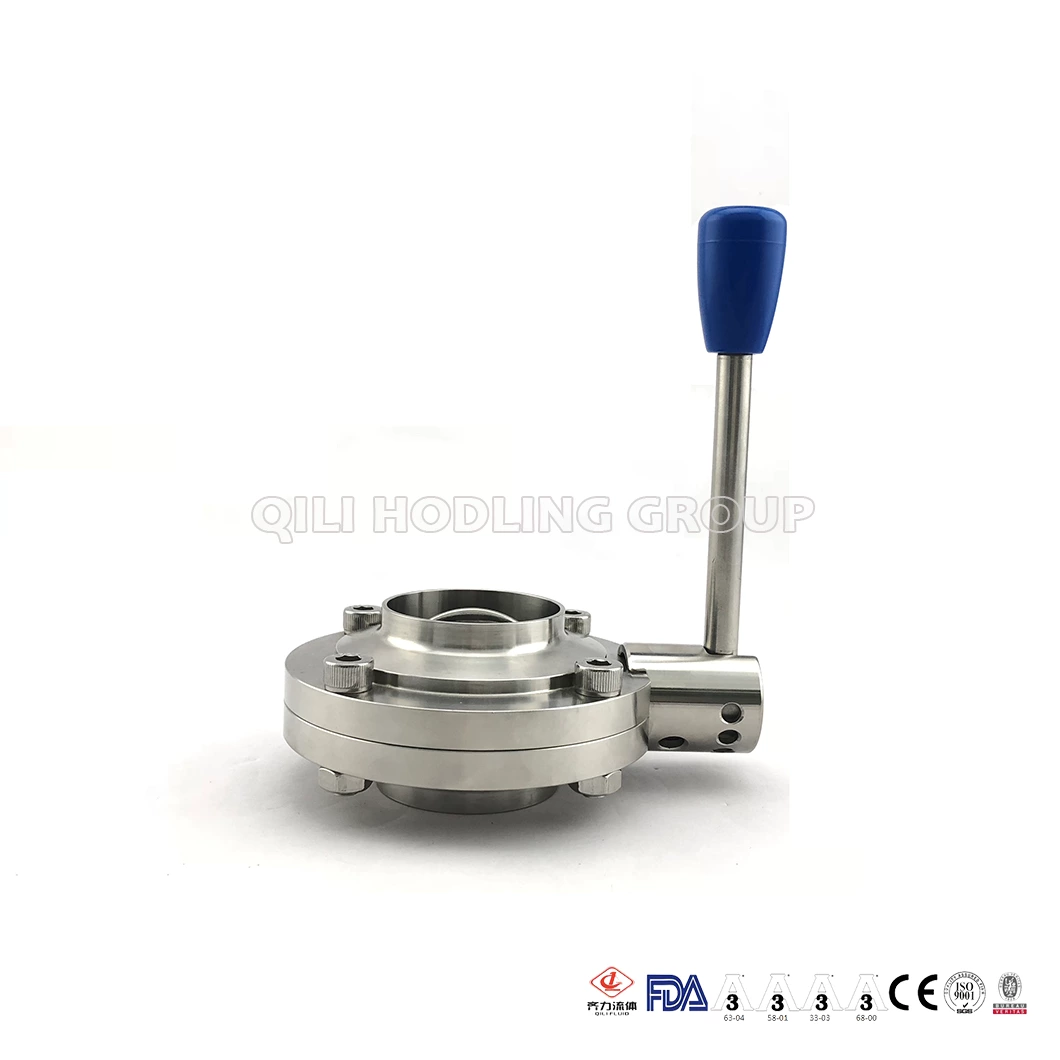

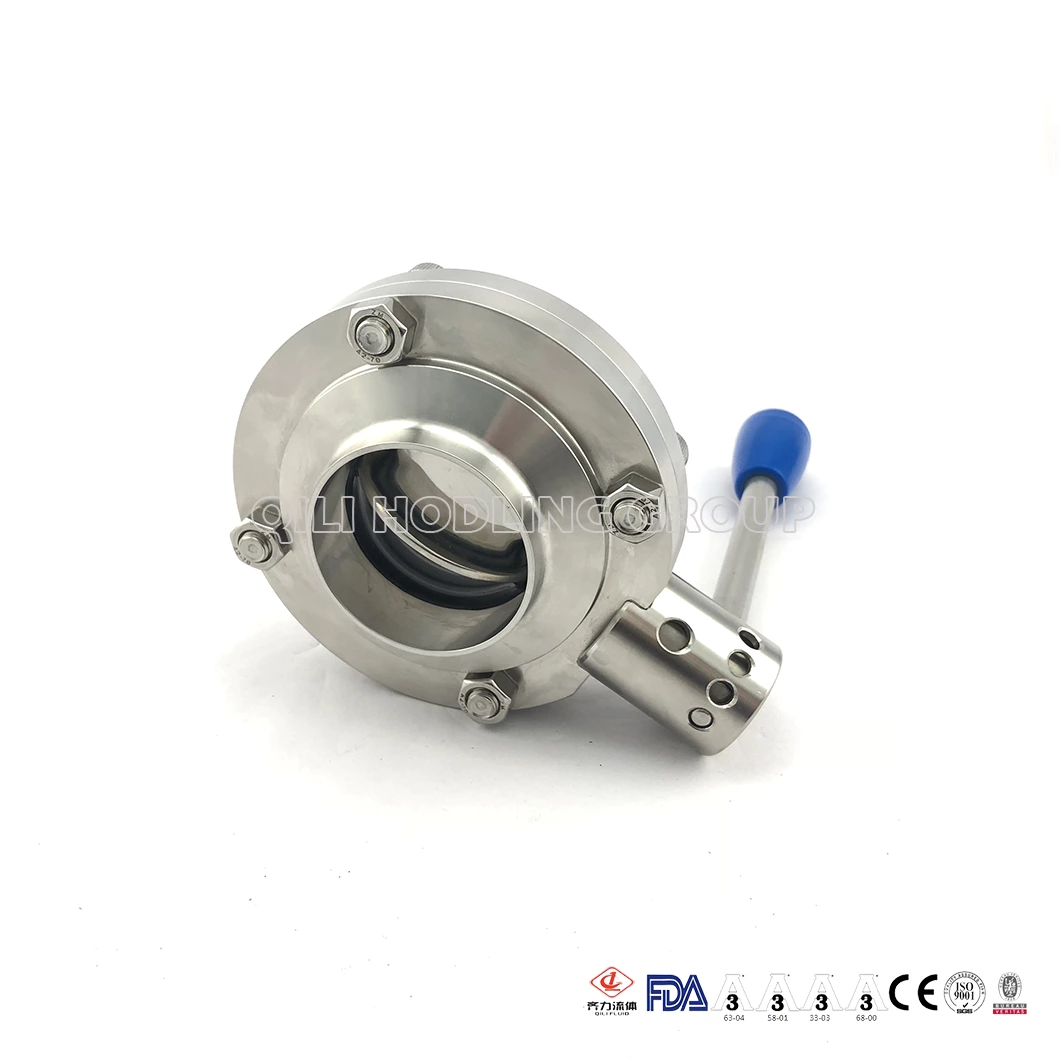

B5101 Series Sanitary Stainless Steel Butterfly Valve With Pull Handle Weld End
B5101 Series Sanitary Stainless Steel Butterfly Valve With Pull Handle Weld End B5101 Series Sanitary Stainless Steel Butterfly Valve With Pull Handle Weld End B5101 Series Sanitary Stainless Steel Butterfly Valve With Pull Handle Weld End B5101 Series Sanitary Stainless Steel Butterfly Valve With Pull Handle Weld End B5101 Series Sanitary Stainless Steel Butterfly Valve With Pull Handle Weld End

Drawings

Details

Description B5101 Series Butterfly Valve With Pull Handle Weld End
Body Material Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404)
Actuator Material Stainless Steel 304
Seal Material EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard
Temperature Range 15°F to 200°F(-9.4°C to 93°C) EPDM
Max. Pressure 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Finishing Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available
Port Size 1/2"-6"
Connection Tri-clamp ferrule; Threaded; Welded
Connection Standard 3A , SMS , ASME BPE, ISO, DIN, BS
Features 100% hydraulic tested / 100% inspected
Specifications Can see our products catalogues
Application Food process, Milk process, Beer brewage, Bio-pharmacy, etc.
Packaging Carton packaging. Wooden case packaging.
