Sanitary Butterfly Valve

All Kinds of Sanitary 304/316L Stainless Steel Factory Price Pneumatic/Manual Lever Butterfly Valves Welding/Thread

Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
DN15-150 and 1"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM
Transport Package:
cartons
Contact Now

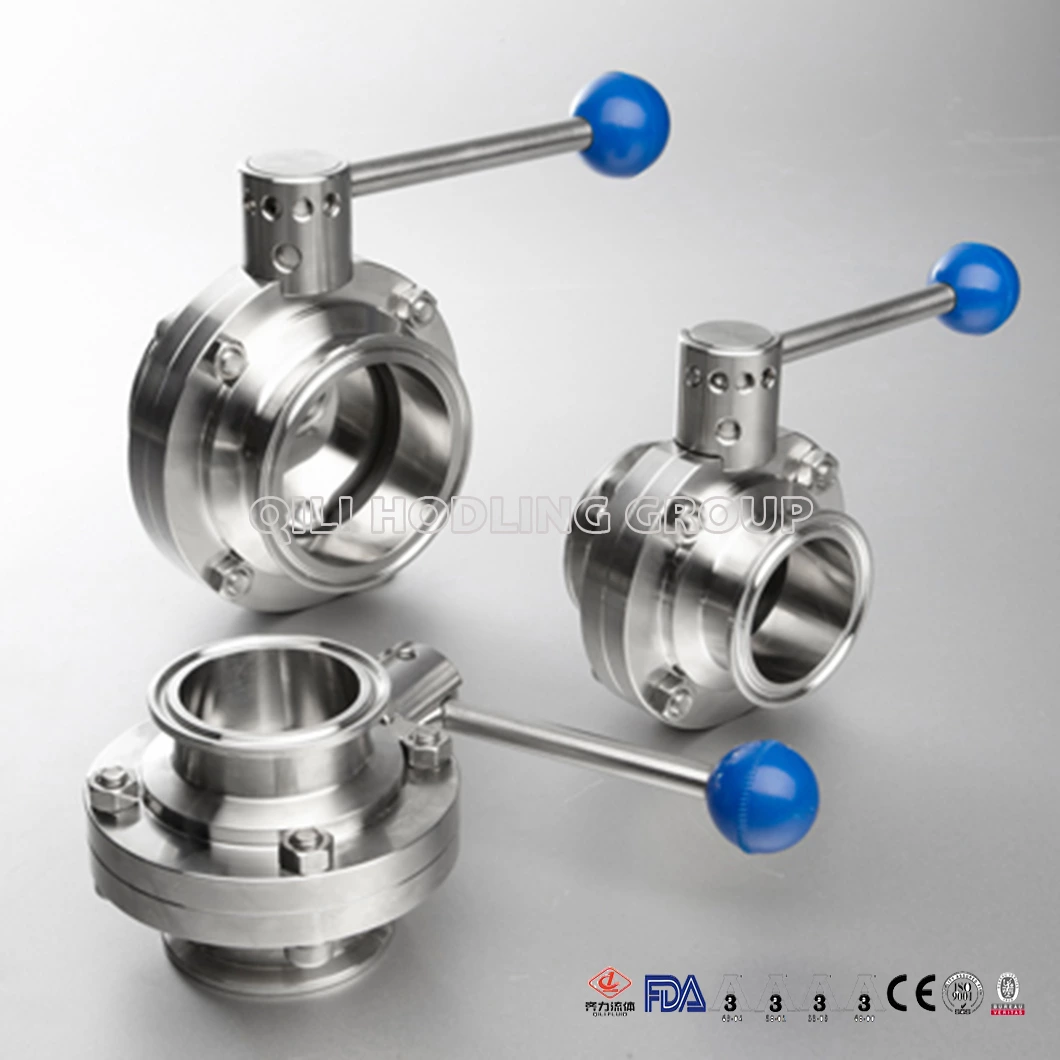

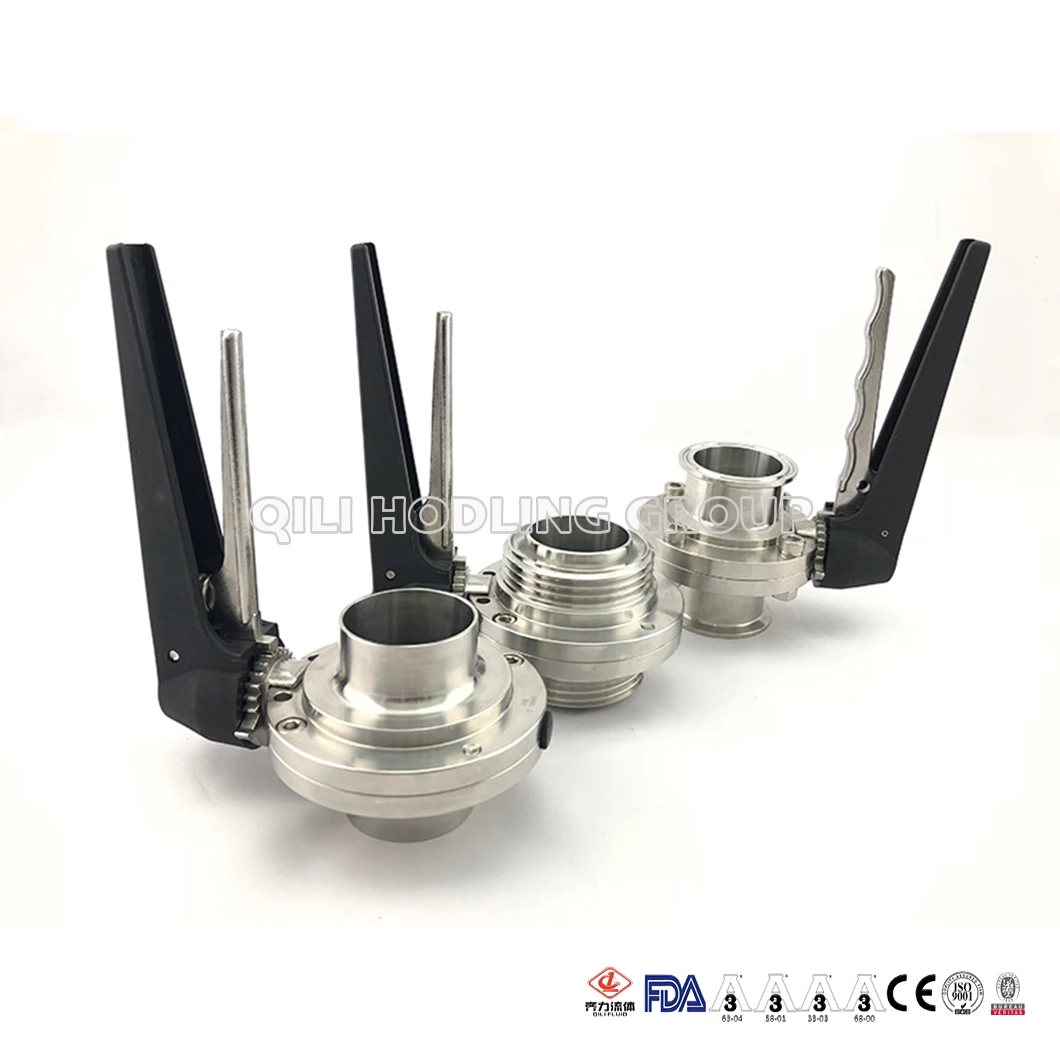

All Kinds of Sanitary 304/316L Stainless Steel Factory Price Pneumatic/Manual Lever Butterfly Valves Welding/Thread
All Kinds of Sanitary 304/316L Stainless Steel Factory Price Pneumatic/Manual Lever Butterfly Valves Welding/Thread All Kinds of Sanitary 304/316L Stainless Steel Factory Price Pneumatic/Manual Lever Butterfly Valves Welding/Thread All Kinds of Sanitary 304/316L Stainless Steel Factory Price Pneumatic/Manual Lever Butterfly Valves Welding/Thread All Kinds of Sanitary 304/316L Stainless Steel Factory Price Pneumatic/Manual Lever Butterfly Valves Welding/Thread

Drawings

Material
Steel parts: stainless steel 304,stainless steel 316L
Seal:silicone(VMQ) ,Fluoroelastomer(FPM), EPDM

Stanard Design: Various standards of valves can be provide can be provided to clients
Standard of valve: DIN/SMS/3A/ISO/IDF
Size: DN15-150 and 1"-6"
Medium: Beer, Dairy, Beverage, Pharmacy.

Application

the series of this valve is a kind of sanitary pneumatic which are widely used in stainless steel pipeline system to control and regulate medium flow.

Work principle

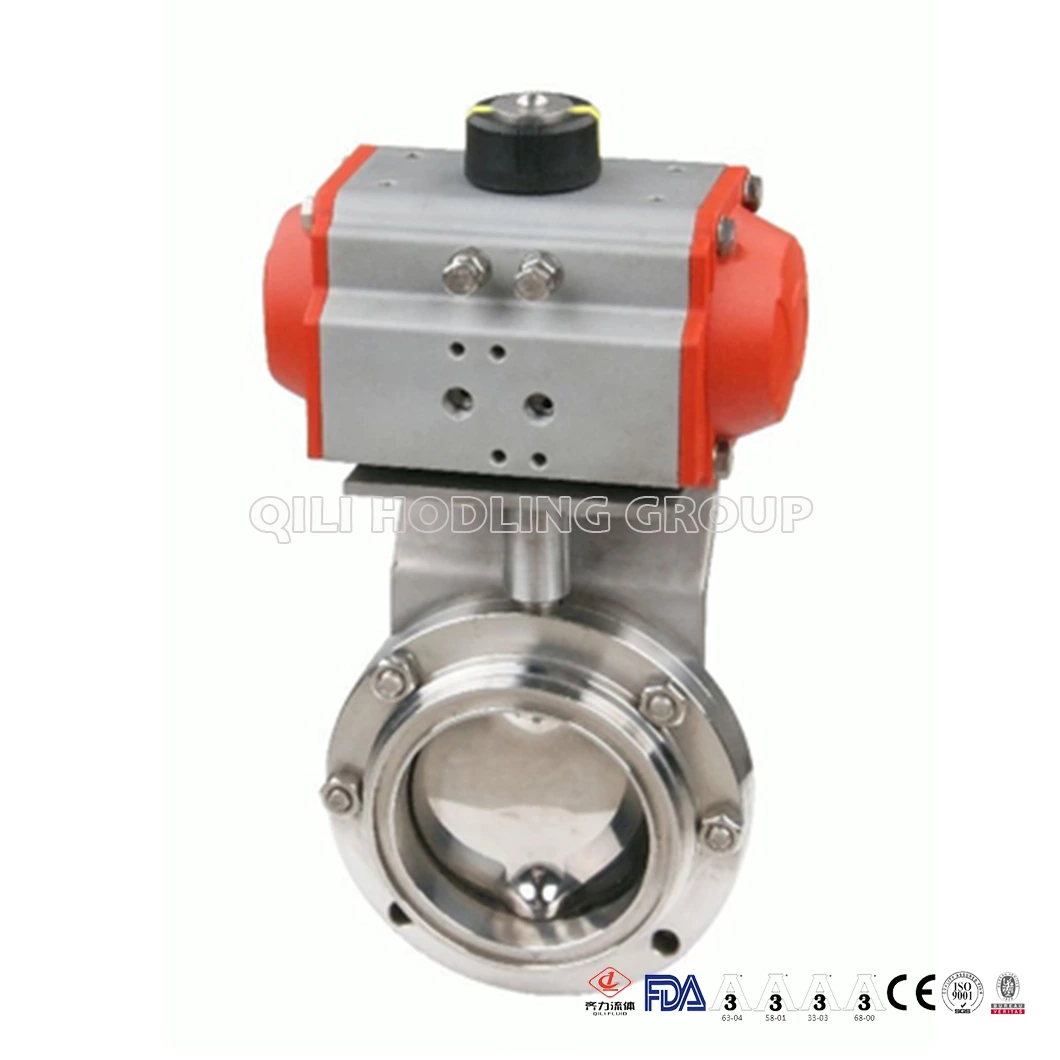

this kind of valve can be handled both by manual or an electric actuator ,and also can be handled by a pneumatic actuator.

Electric actuator or pneumator or pneumatic actuator is to covert the axial movement of piston to be 90 degree rotation of valve shaft.So that the valve can be open or close to achieve the requirment of control and open /close for the pipeline system.They have three type of actator: normally open (NO),normally closed (NC),air/air(A/A)

More information
Qili can supply this pneumatic butterfly valve with weld end, clamp end, thread end and flange end connection. Requiring more detail information or catalog pls don't hesitate to contact us. For all our products, Qili can also produce according to ur drawing if ur Specification is out of our standard.
