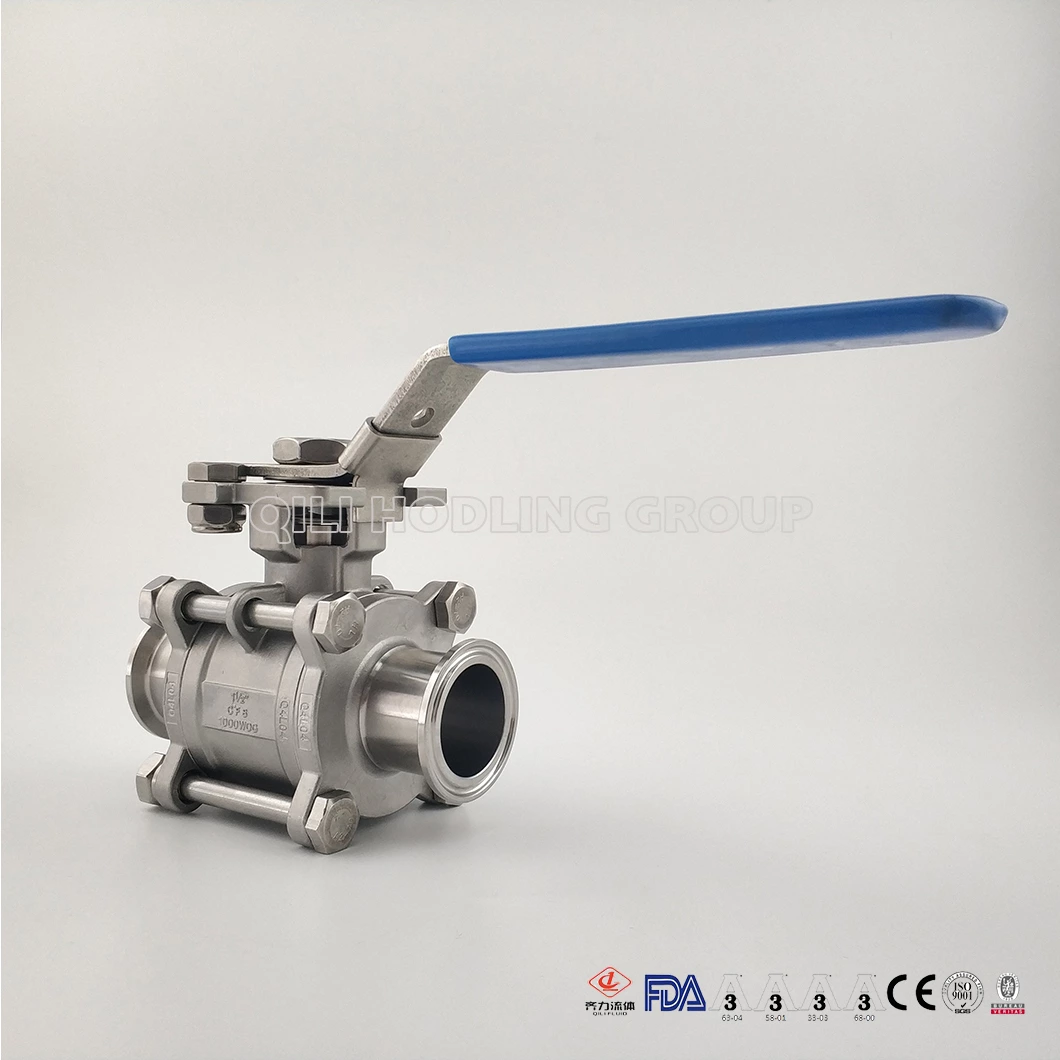

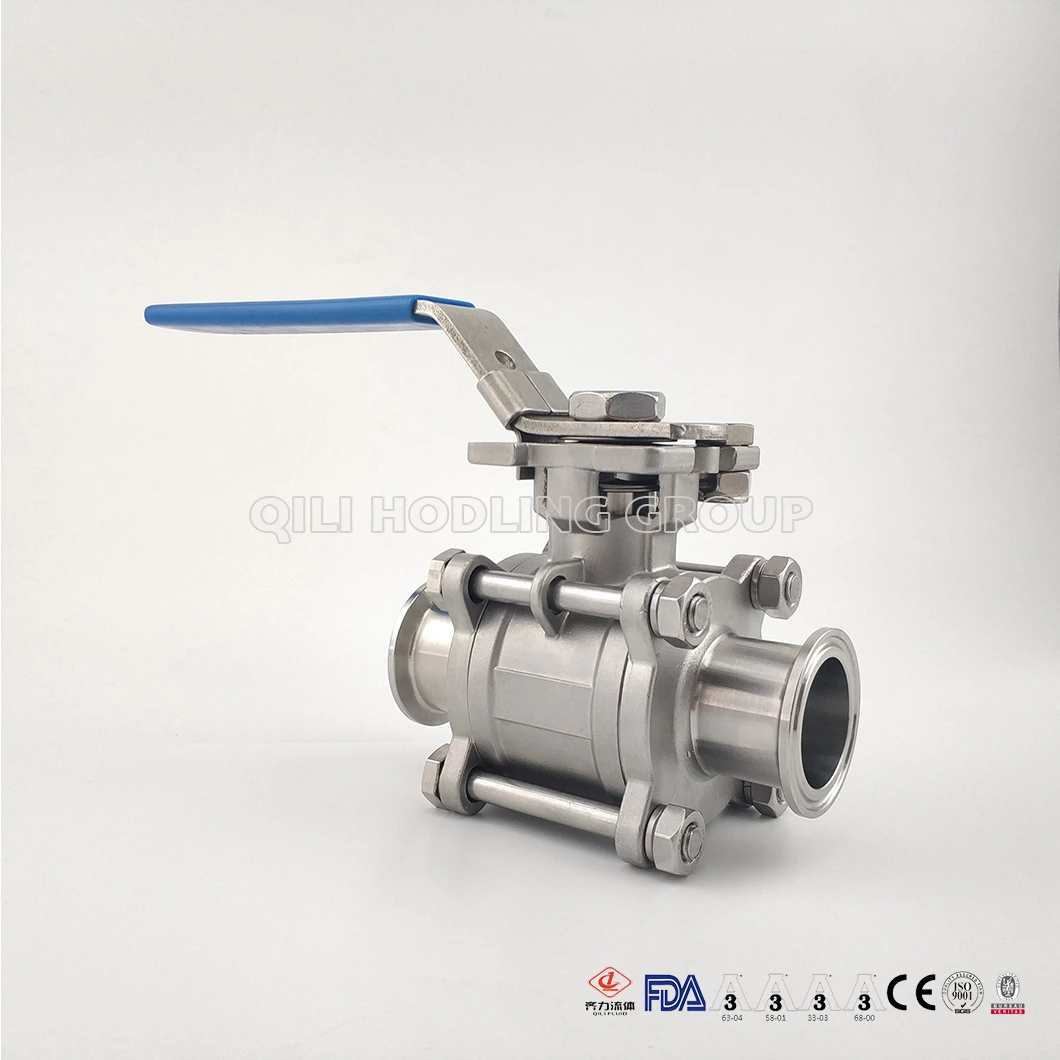

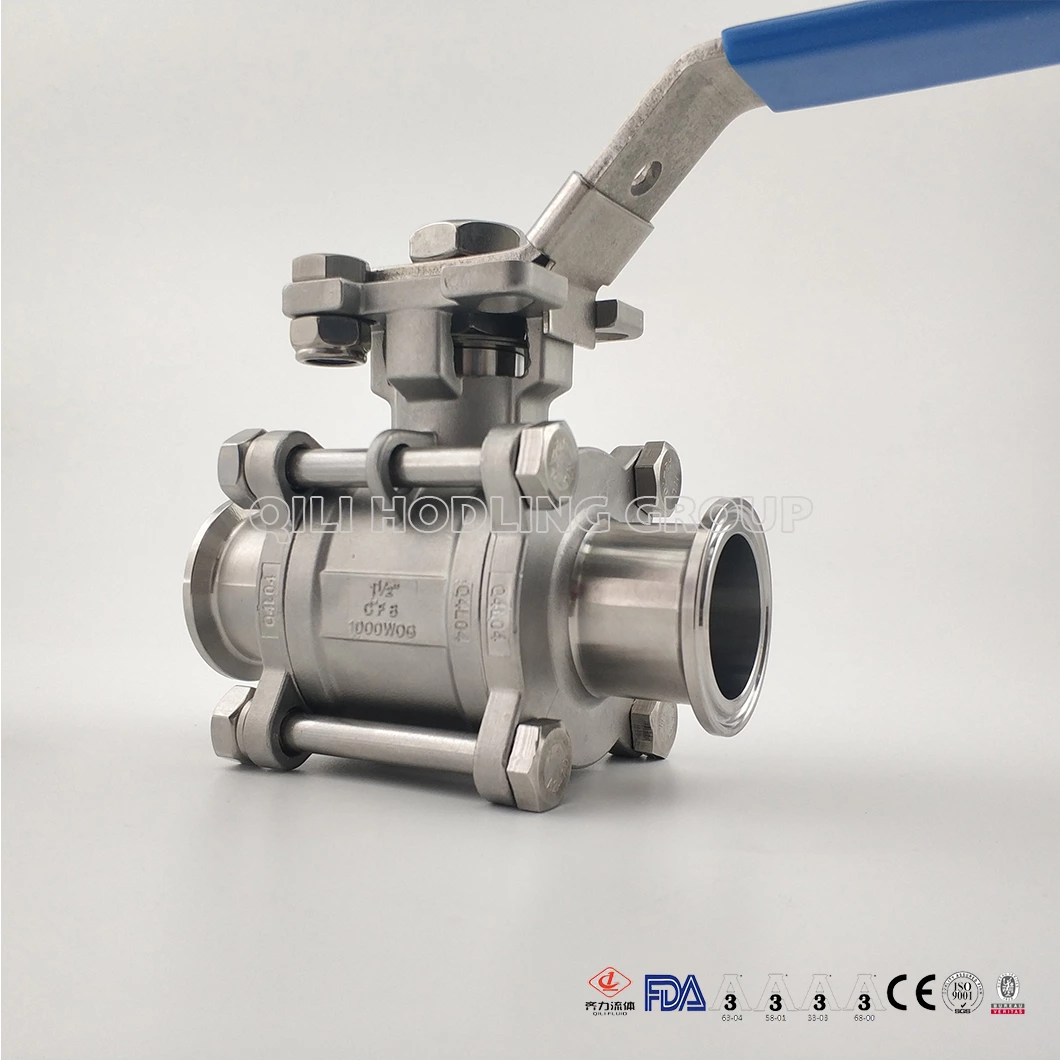

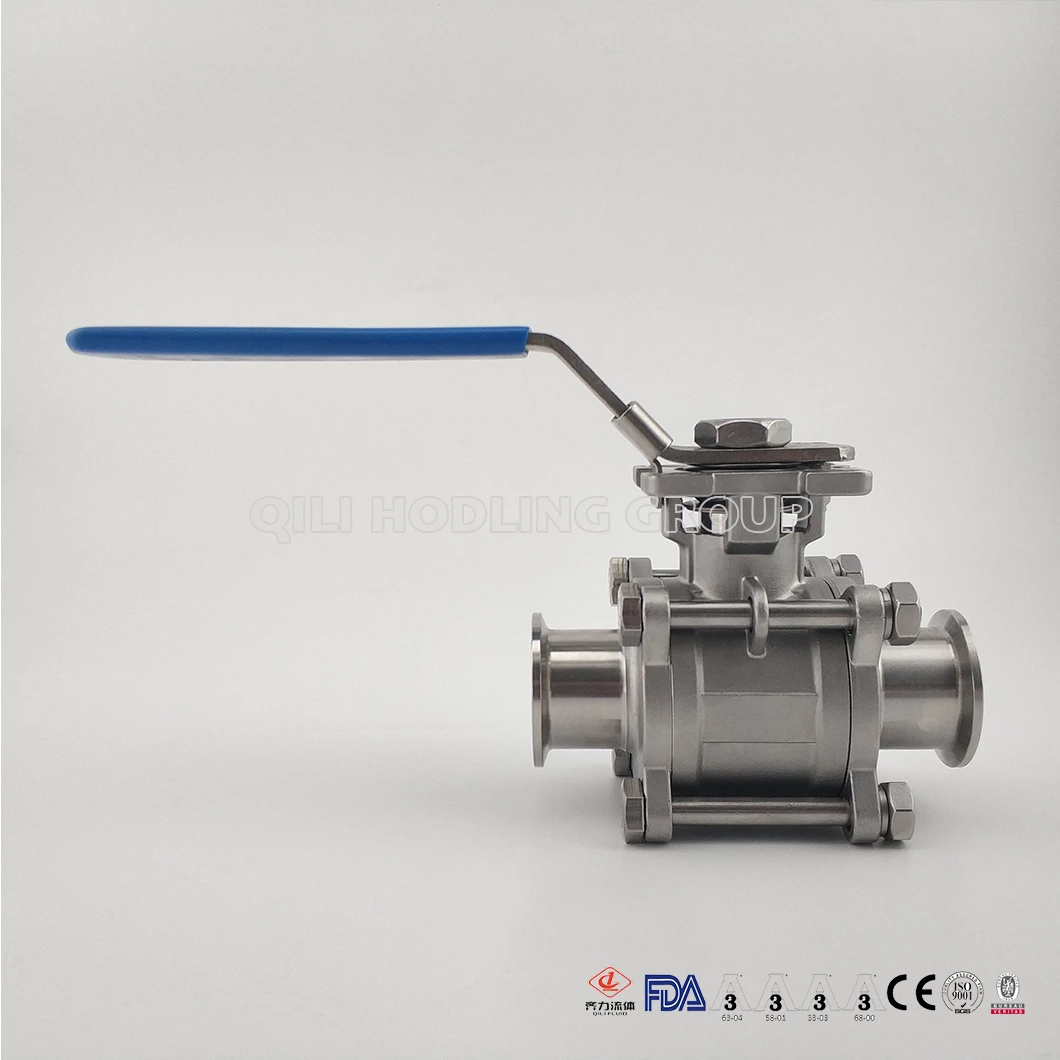

Stainless Steel Two Way Sanitary Encapsulated Cavity Filled Clamp End Ball Valve Control Medium Flow Used in Food & Beverage Processing
Stainless Steel Two Way Sanitary Encapsulated Cavity Filled Clamp End Ball Valve Control Medium Flow Used in Food & Beverage Processing
Product Description:
End connections: nd connection can
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2" -6", DN15-DN100
- Sales Models:
- wholesale or retail
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- MOQ:
- 1PC
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- cartons

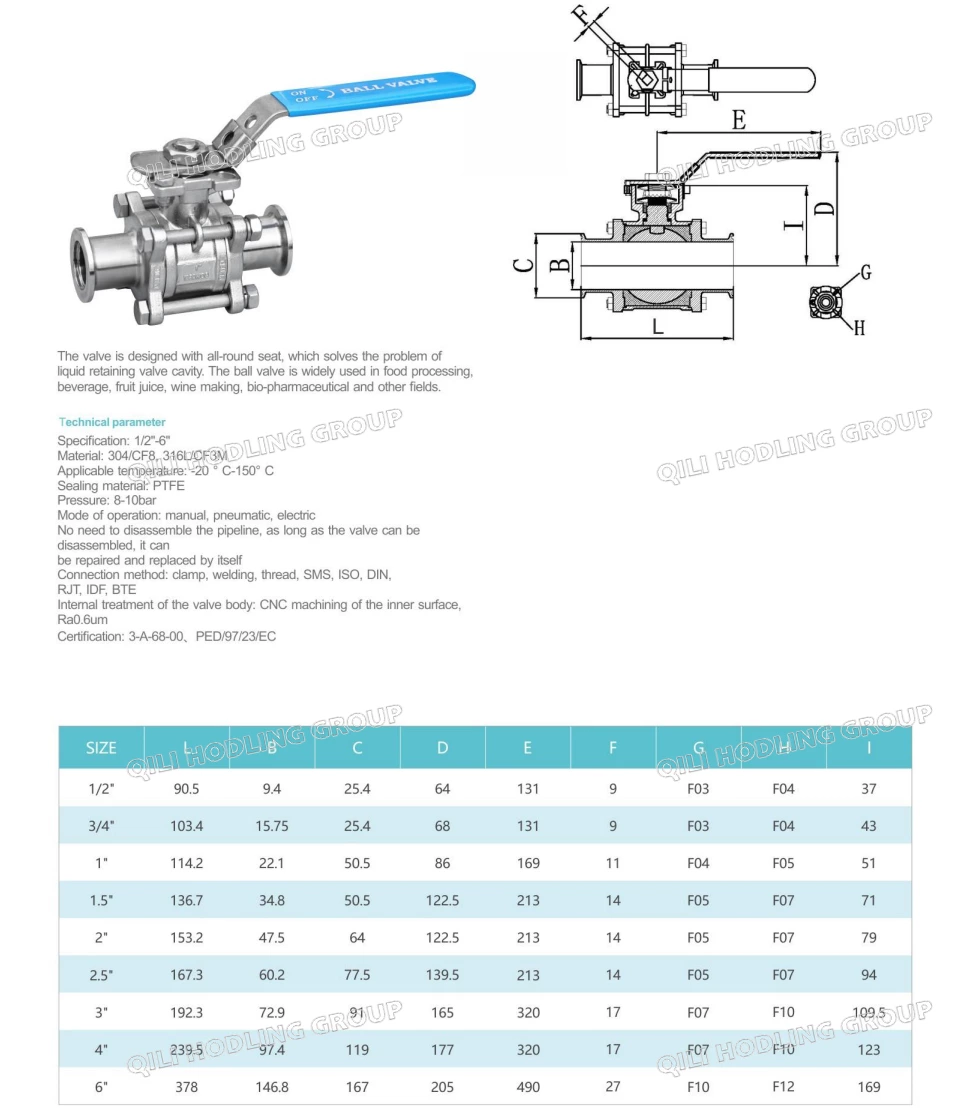

Drawings
Details
- Name: 100% full flow Clamp End Ball Valve control medium flow
- End connections: nd connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.
- full port design: to reduce turbulence and pressure drop through the valve. Upon opening the valve, you will notice a lock out handle to prevent tampering, ISO 5211 mounting pads for actuation, and a beautiful finish on the Inside and Outside of the valve.
- Temperature: -20degree celsius~135degree celsius
- Body construction: 3-piece precision cast body
