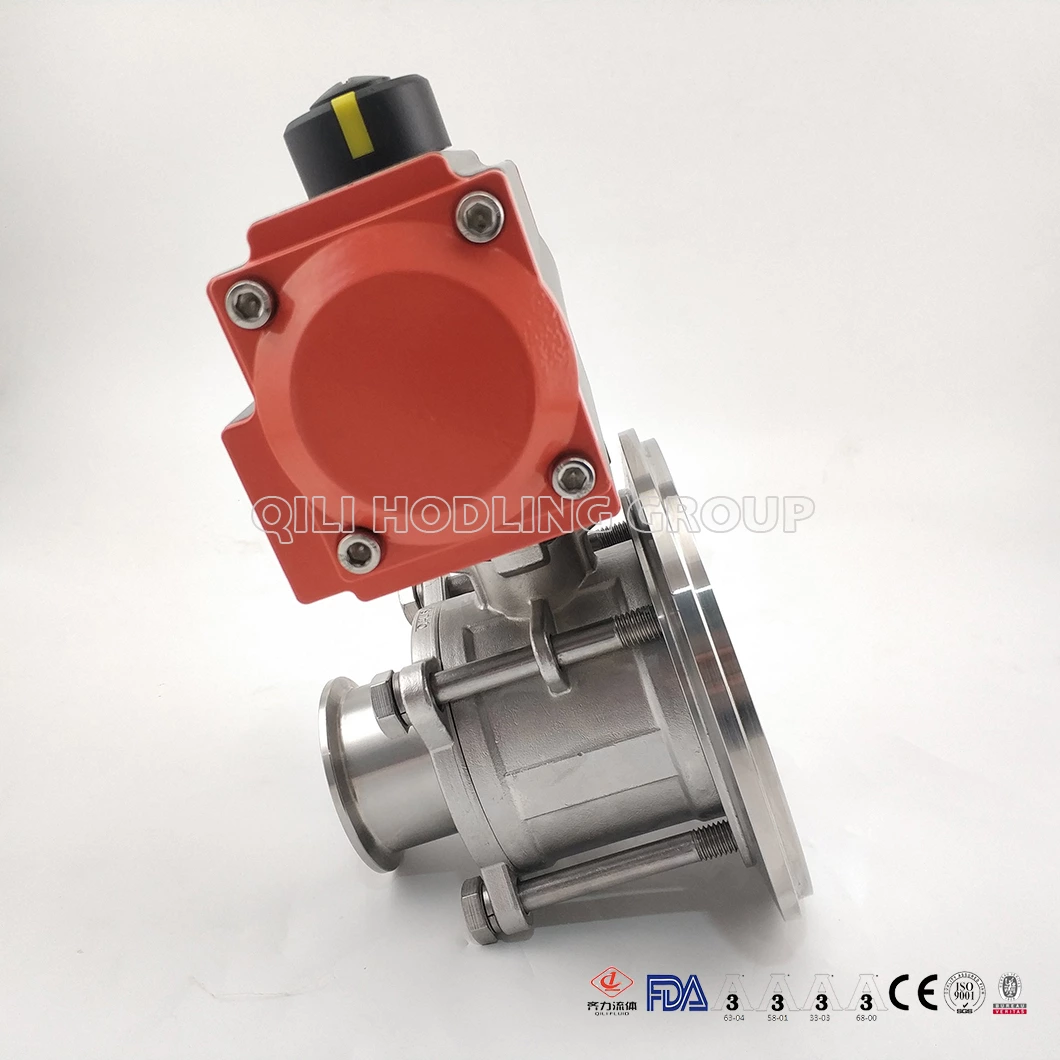

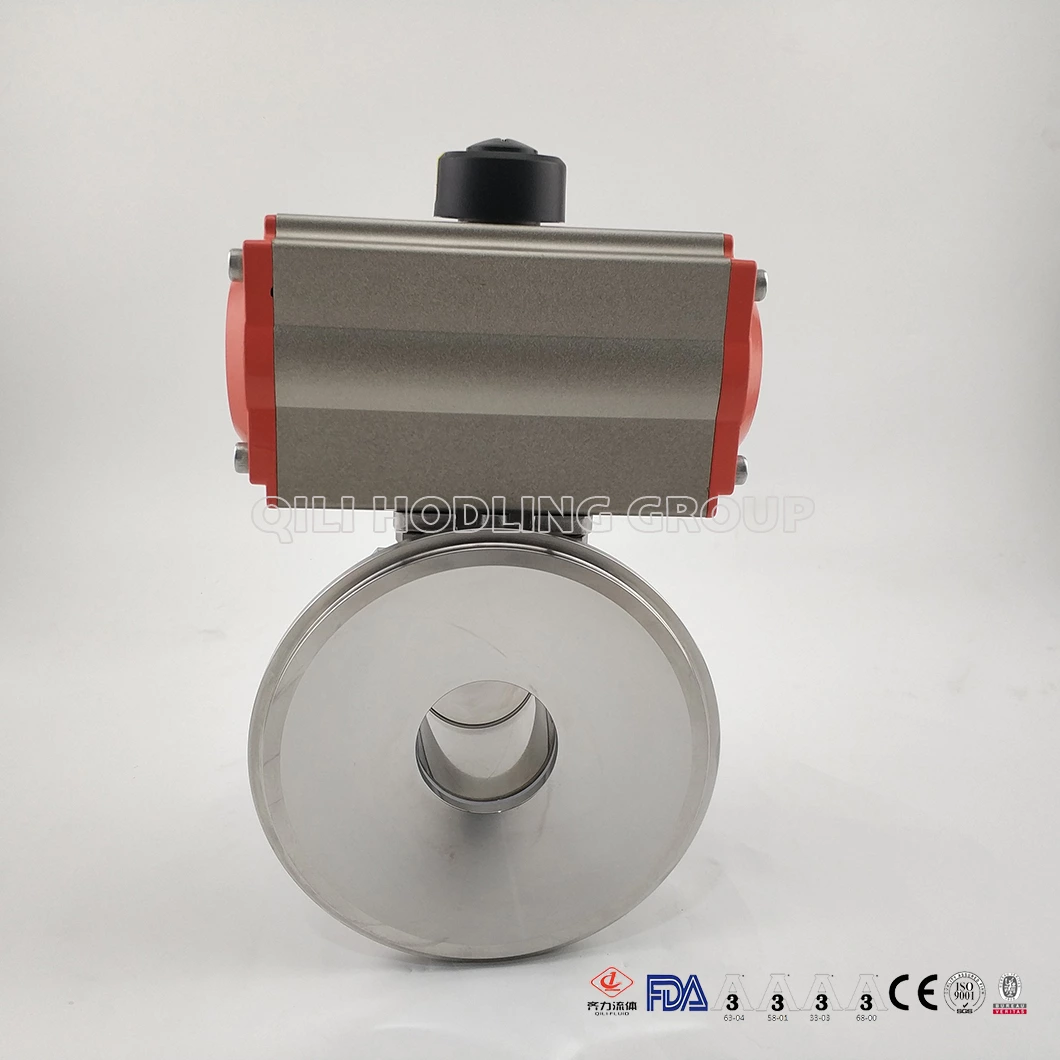

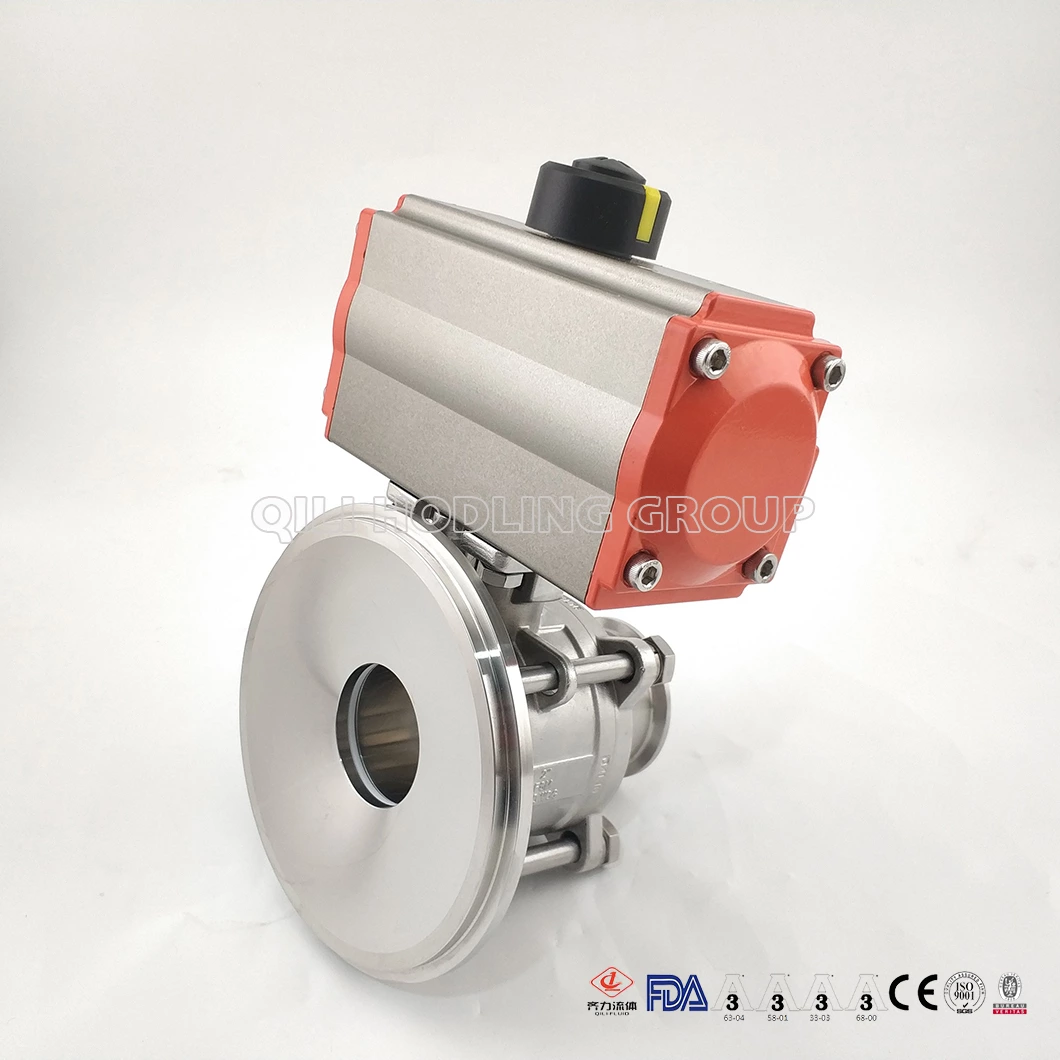

SS304 SS316L Stainless Steel Pneumatic Tank Bottom full bore Ball Valve
The Tank ball valve can be used on sanitary tanks, with very low torque allowing the pneumatic head to open smoothly below 4.5bar. 3A,SMS,DIN,ISO etc internional standards can supplied to you with FDA certified
- Material:
- 304/316L
- Standard:
- DIN,SMS,ISO,IDF,BSE,RJT
- Working Temperature:
- -20 to 150℃
- Connection ways:
- clamp,threaded,weld
- Size:
- 1/2 to 4", DN10-DN100
- Type:
- tank bottom valve
- Sales Models:
- wholesale or retail
- Pressure Value:
- 8-30bar
- MOQ:
- 1pc
- Seal Material:
- PTFE, TFM 1600, UHMWPE
- Transport Package:
- cartons

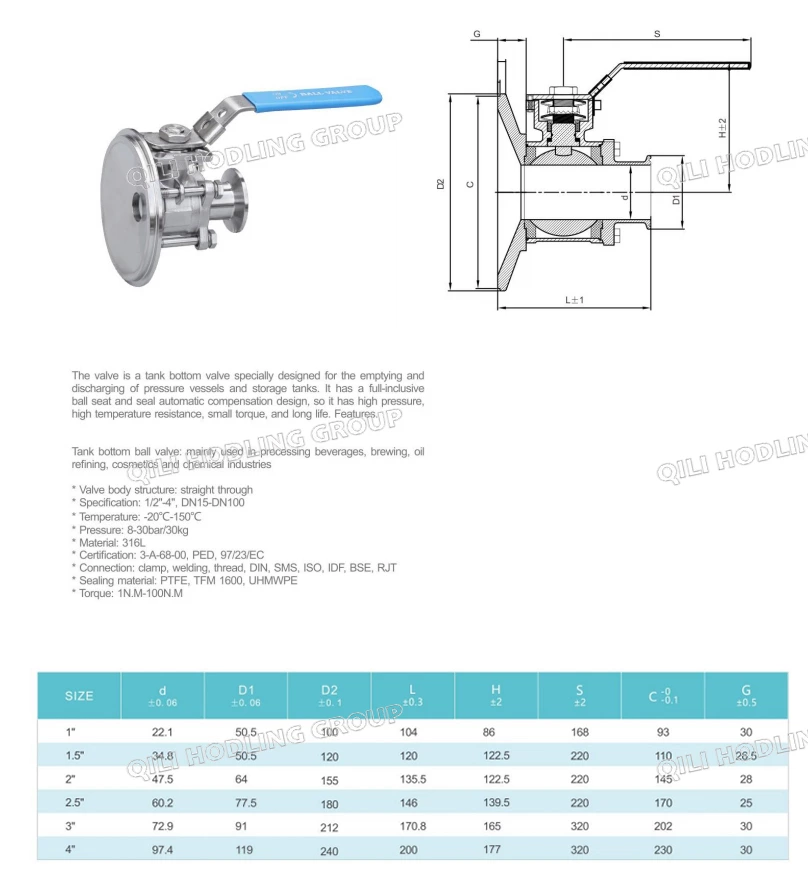

Drawings
Details
- Name: Hygienic 3-Piece Tank Bottom Ball Valve
- Operated: Pneumatic, electric , Manually operated by han stainless steeldle with locking system. Tank bottom full bore ball valve
- Materials: 316/316L Stainless Steel, Hastelloy®, Carbon Steel, Bronze Alloy 922, others
- End Connections: Buttweld, Flange, NPT, Socket Weld, others
- Standard TFM™ - PTFE seats / seals
- Working Pressures: up to 720 psig (49.6 bar) depending on valve series, size and temperatures
- Temperature Range: up to 750˚F (400˚C), depending on seat and seal material
- Valve opens and closes with easy quarter-turn operation.
- PTFE O Ring
- Fully encapsulated body seals
