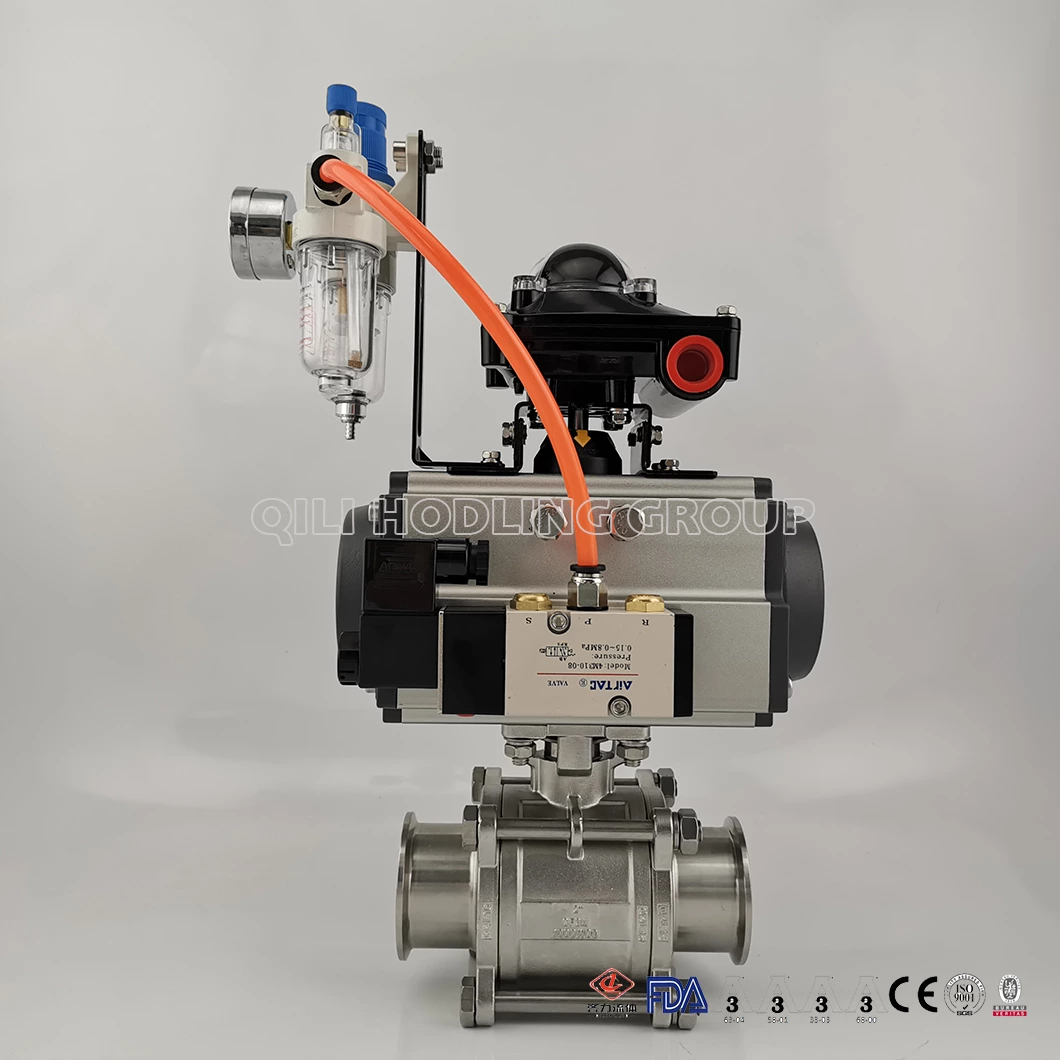

SS304 SS316L Stainless Steel CF8M Full Bore Encapsulate PTFE Pneumatic And Electric Ball Valves
Products Description:
1.Name:SS304 SS316L Stainless Steel CF8M Full Bore Encapsulate PTFE Pneumatic And Electric Ball Valves
2.Size:Dn15-150 and 1"-6"
3.Connection way:Tri clamp,weld,male, flange
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2" -6", DN15-DN100
- Sales Models:
- wholesale or retail
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- MOQ:
- 1PC
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- cartons
Details
- 1.Name:SS304 SS316L Stainless Steel CF8M Full Bore Encapsulate PTFE Pneumatic And Electric Ball Valves
- 2.Size:Dn15-150 and 1"-6"
- 3.Connection way:Tri clamp,weld,male, flange
- 4.Work Pressure:8-10 BAR
- 5.Working Temperature:-20 ~ 135° C
- 6.Material of Seal Surface:PTFE
- 7.Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics

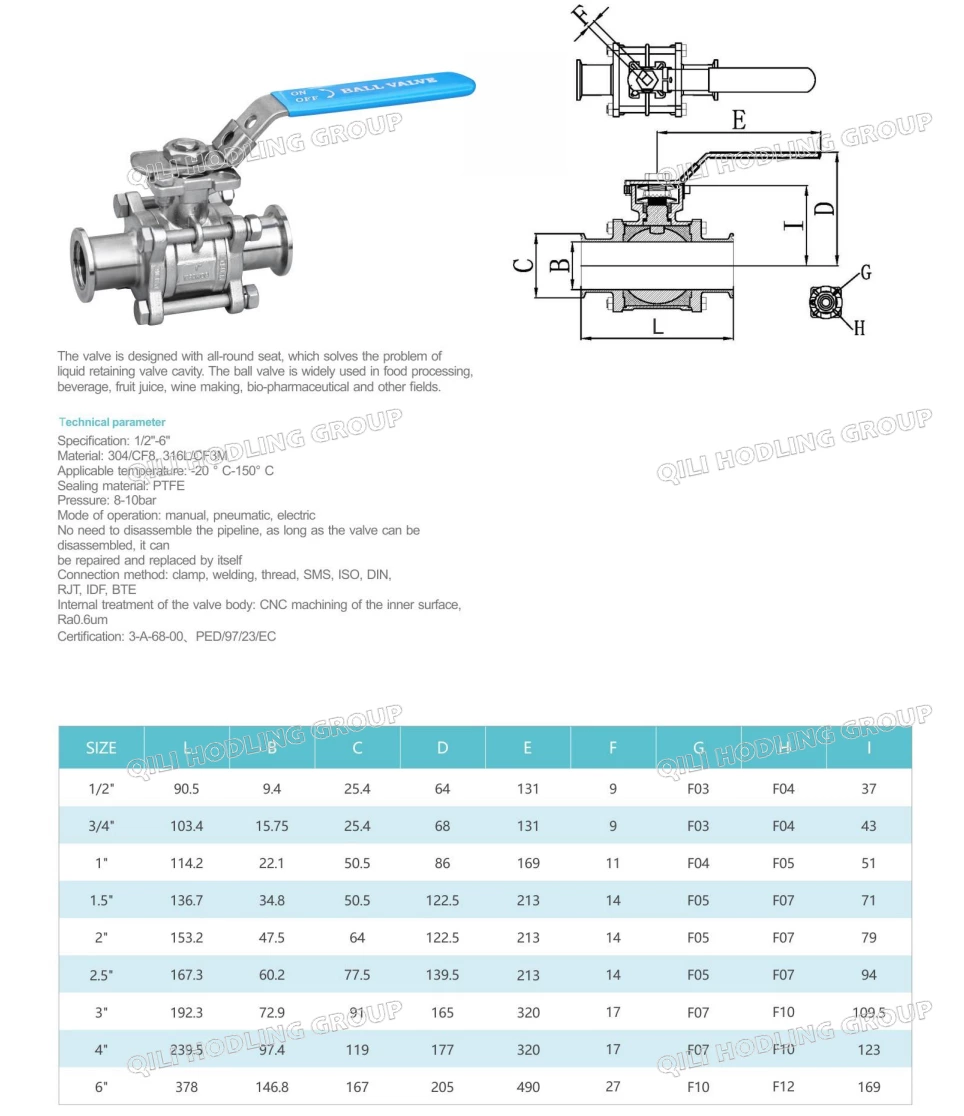

Drawings
Advantages
In 2019,Qili was fully upgrade all ball valve.the upgraded design more suitable GMP、ASM、 EBPE、EHEDG and 3A of high purity technology requirement,especially for dead space handle processing <1D to <3D requirement. The valve is designed as an encapsulated valve, which solve the problem of liquid retention valve cavity.the valve is in biopharmaceutical , beverage processing, brewing, refinery, cosmetics and chemical industry, valve rod sealing design,Butterfly spring compensation design,encapsulated PTFE design, It has the advantage of long life ,small torque,no retention
