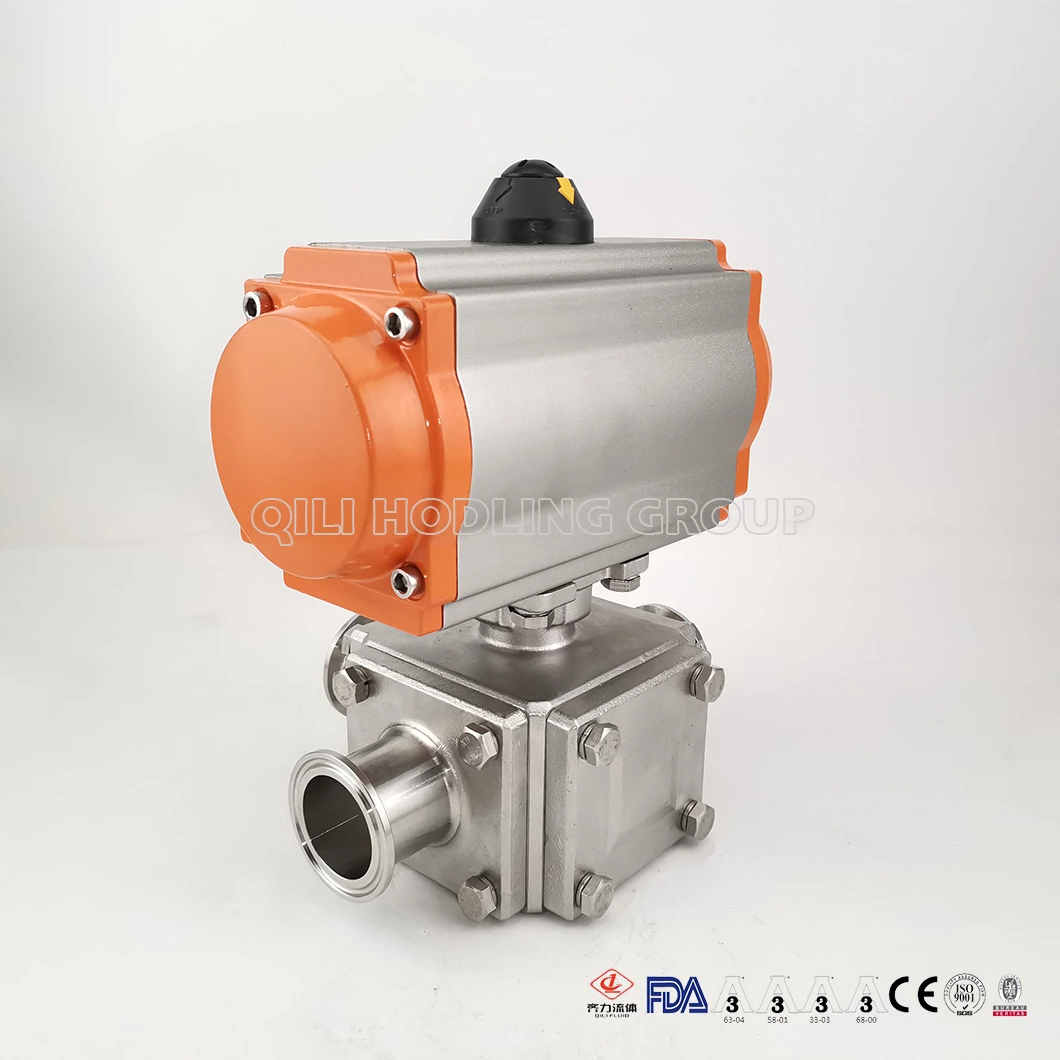

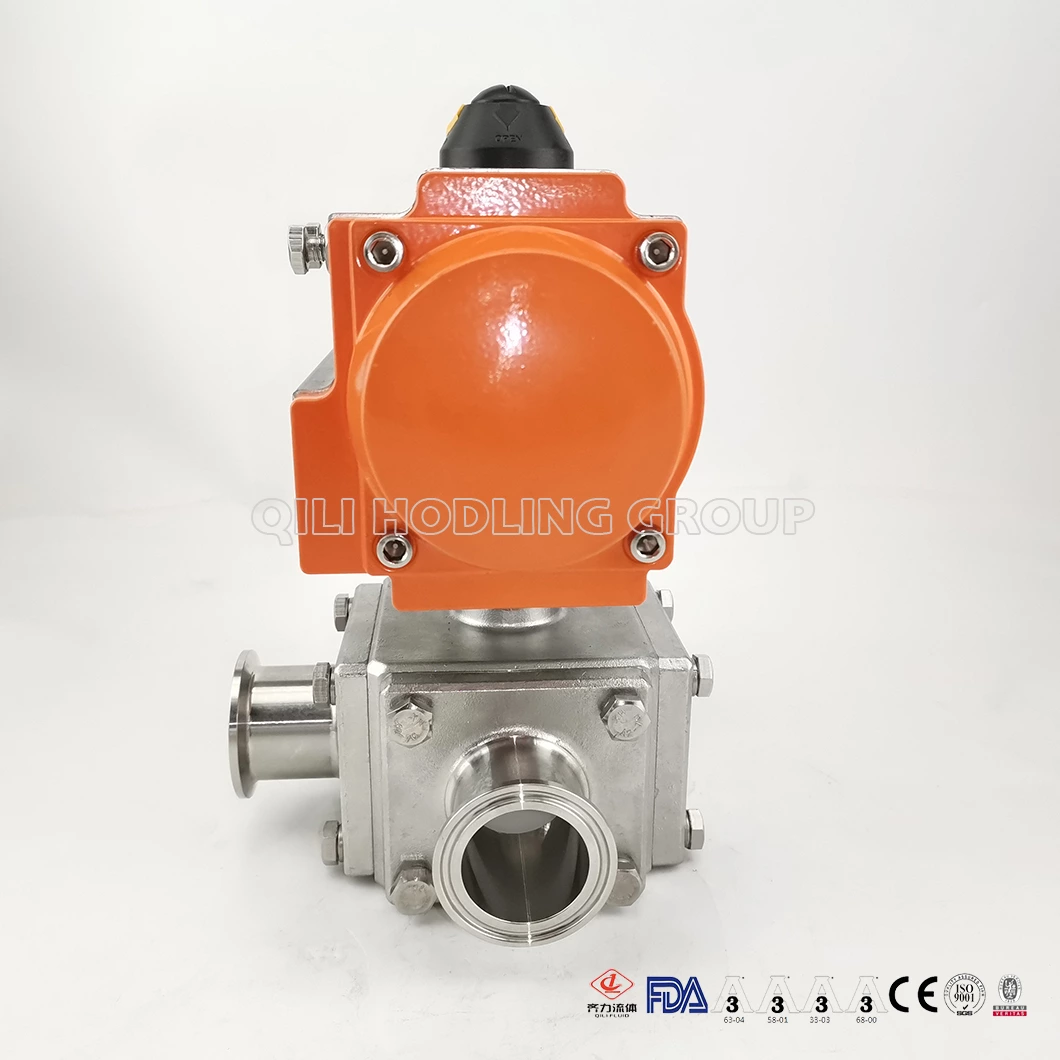

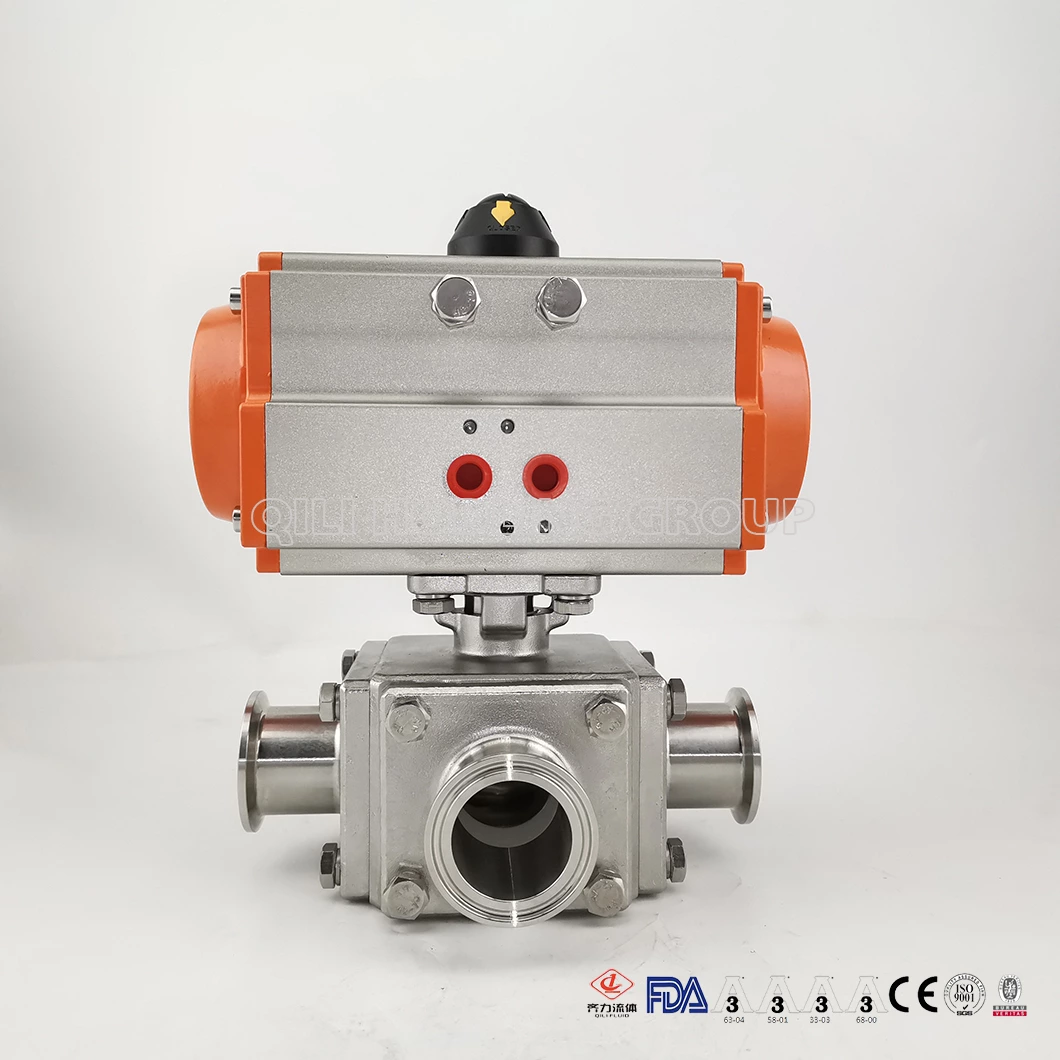

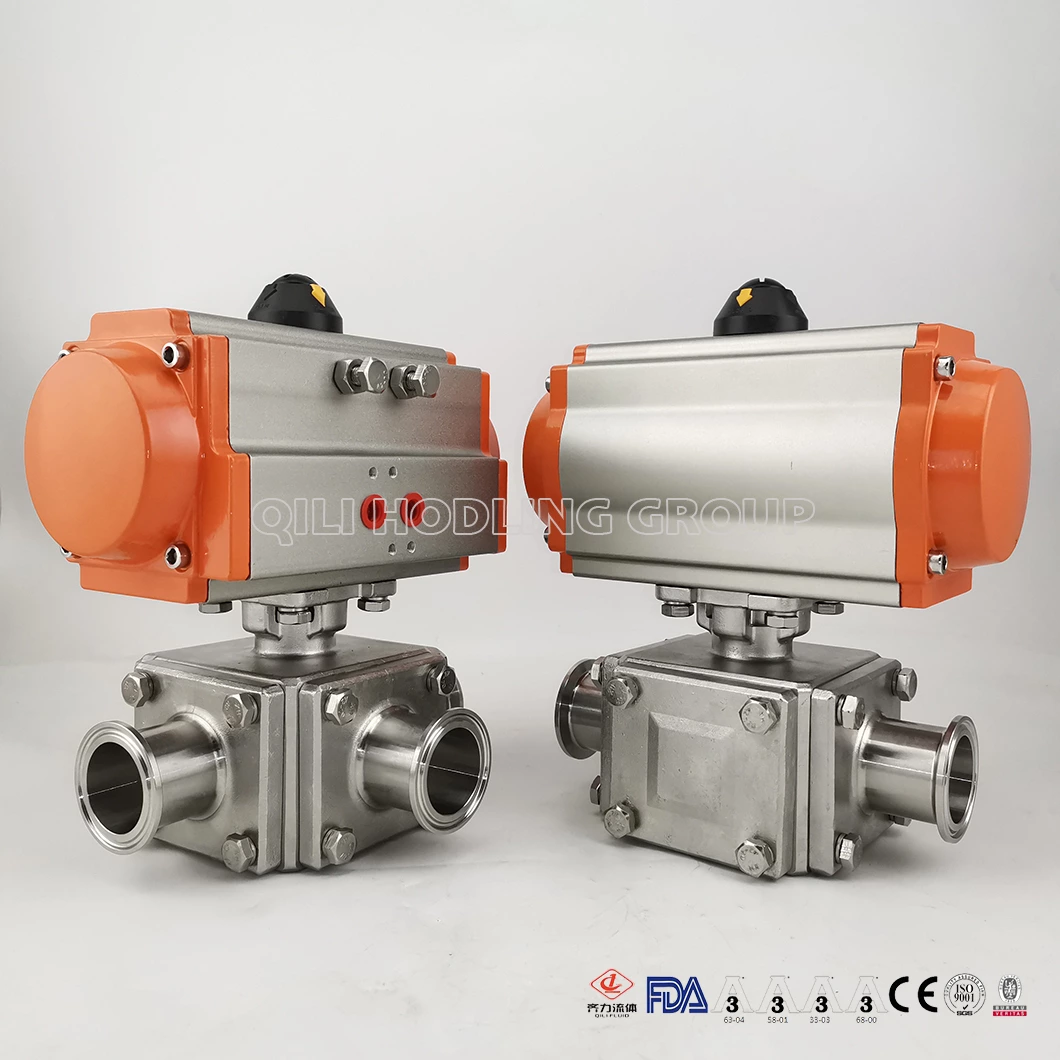

SS304 SS316L Food Grade 3 Way Pneumatic T Or L Type Ball Valves

3 way pneumatic ball valves is designed as an encapsulated valve, which solve the problem of liquid retention valve cavity.the valve is in biopharmaceutical , beverage processing, brewing, refinery, cosmetics and chemical industry, valve rod sealing design,Butterfly spring compensation design,encapsulated PTFE design, It has the advantage of long life ,small torque,no retention
Material:
316L
Standard:
3A, SMS, DIN,ISO,IDF,RJT,etc.
Working Temperature:
-20℃ -150℃
Application:
food, beverage, wine, cosmetic,etc.
Connection ways:
welding, tri-clamp, thread
Size:
1/2"-4" ,DN25-DN100
Type:
3-way ball valves
Surface Treatment:
Inside mirror polished or electric polished
Pressure Value:
8-30bar
MOQ:
1PC
Seal Material:
PTFE,TFM 1600,UHMWPE
Transport Package:
cartons
SS304 SS316L Food Grade 3 Way Pneumatic T Or L Type Ball Valves
SS304 SS316L Food Grade 3 Way Pneumatic T Or L Type Ball Valves SS304 SS316L Food Grade 3 Way Pneumatic T Or L Type Ball Valves SS304 SS316L Food Grade 3 Way Pneumatic T Or L Type Ball Valves SS304 SS316L Food Grade 3 Way Pneumatic T Or L Type Ball Valves SS304 SS316L Food Grade 3 Way Pneumatic T Or L Type Ball Valves SS304 SS316L Food Grade 3 Way Pneumatic T Or L Type Ball Valves

Details

  • 1.Name:SS304 SS316L Food Grade 3 Way Pneumatic  T Or L Type Ball Valves
  • 2.Size:1/2 "-6"
  • 3.Connection way:Tri clamp,weld,male
  • 3.Work Pressure:10bar/1MPA/145PSI/10kg
  • 4.Working Temperature:-30 ~ 200° C
  • 5.Material of Seal Surface: Encapsulate PTFE
  • 6.Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics
  • 7.Valve Body:Forge Welding
  • 8.Product advantage: In 2019,Qili was fully upgrade all ball valve.the upgraded design more suitable GMP、ASM、 EBPE、EHEDG and 3A of high purity technology requirement,especially for dead space handle processing <1D to <3D requirement.
