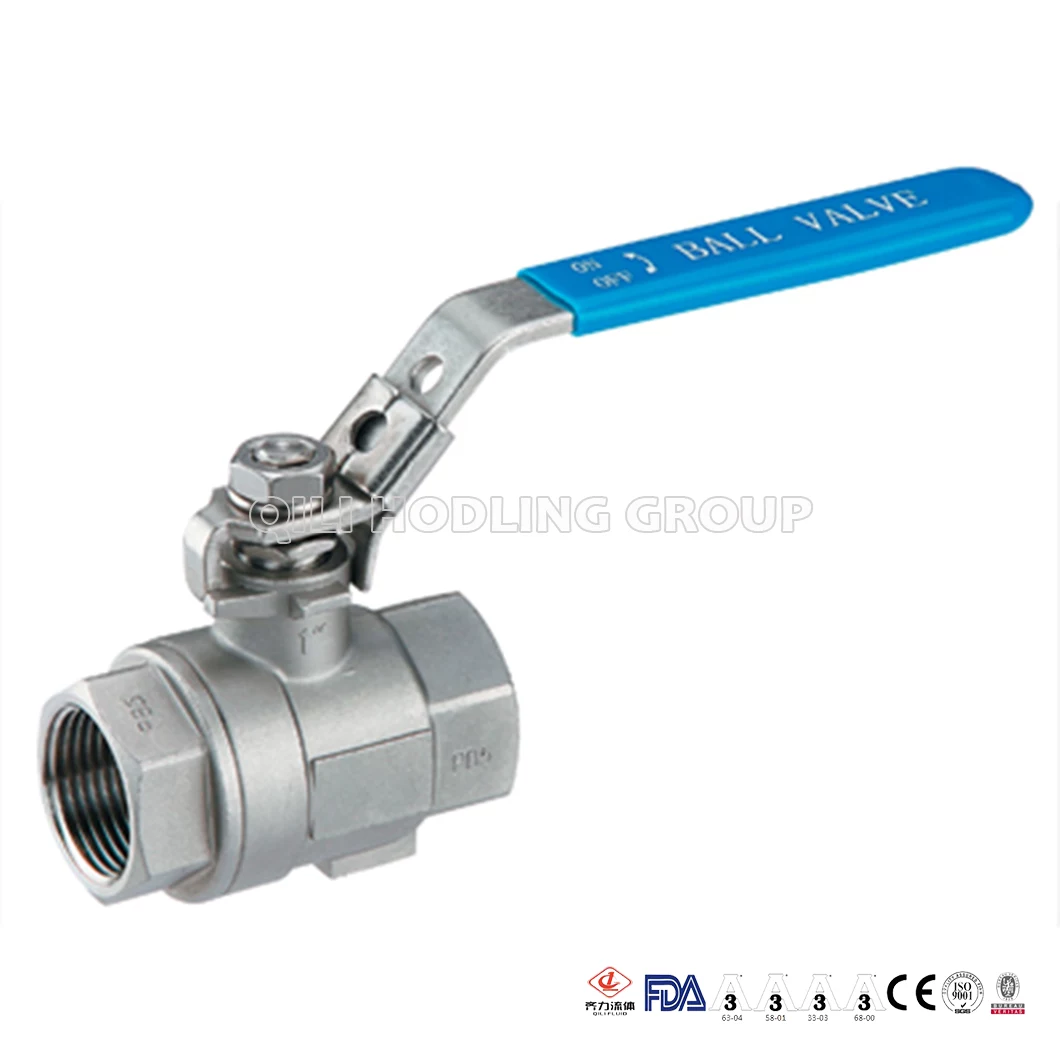

Sanitary Threaded 2PCS Ball Valve with Lock
Stainless Steel Threaded 2PCS Ball Valve with Lock Device is well used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids.
- Model:
- 2PCS Ball Valve
- Material:
- SS304,SS316L
- Standard:
- DIN,3A,SMS,ISO,IDF
- Working Temperature:
- 120 °C
- Application:
- Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry
- Size:
- DN15-DN150,1/2"-6"
- Pressure Value:
- 10Bar
- MOQ:
- 1pc
- Seal Material:
- Silicon, EPDM, Viton, PTFE or required
- Transport Package:
- cartons
Details
- Name: Stainless Steel Threaded 2PCS Ball Valve with Lock Device
- Size: DN15-DN150,1/2"-6" or as required
- Standards: DIN,3A,SMS,ISO,IDF
- Material: SS304,SS316L
- Max Working pressure: 10Bar
- Max Working temp: 120 °C
- Type: Manual , Pneumatic
- Seal Ring: Silicon, EPDM, Viton, PTFE or required
- Connection: Threaded,as required
- Sample: Sample and freight cost can be negotiable
- Applications: Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry
Standard
- Design: ANSI B 16.34
- Inspection & Testing: API598
- Butt weld end conforms to ANSI B 16.25 & GB1224
Application
- For general chemical and industrial services
- Working Pressure: 6.3MPA, 1000PSI,2000PSI
- Medium: Water, Oil, Gas
- Body Material: CF8 CF8M
- Dimension: 1/2"-6" (DN 15-150)
- Body Processing: Investment Casting
- Option: Locking Device
- Design for in-line reparable and simple maintenance.
Features & Benefits
- Investment casting body
- Blow-out proof stem and safe prossure-reducing hole
- Compact assembly
- Locking device
- Stainless steel material, highly corrosion resistance
- Anti-static device
More information
Stainless Steel Threaded 2PCS Ball Valve with Lock Device is well used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids.
