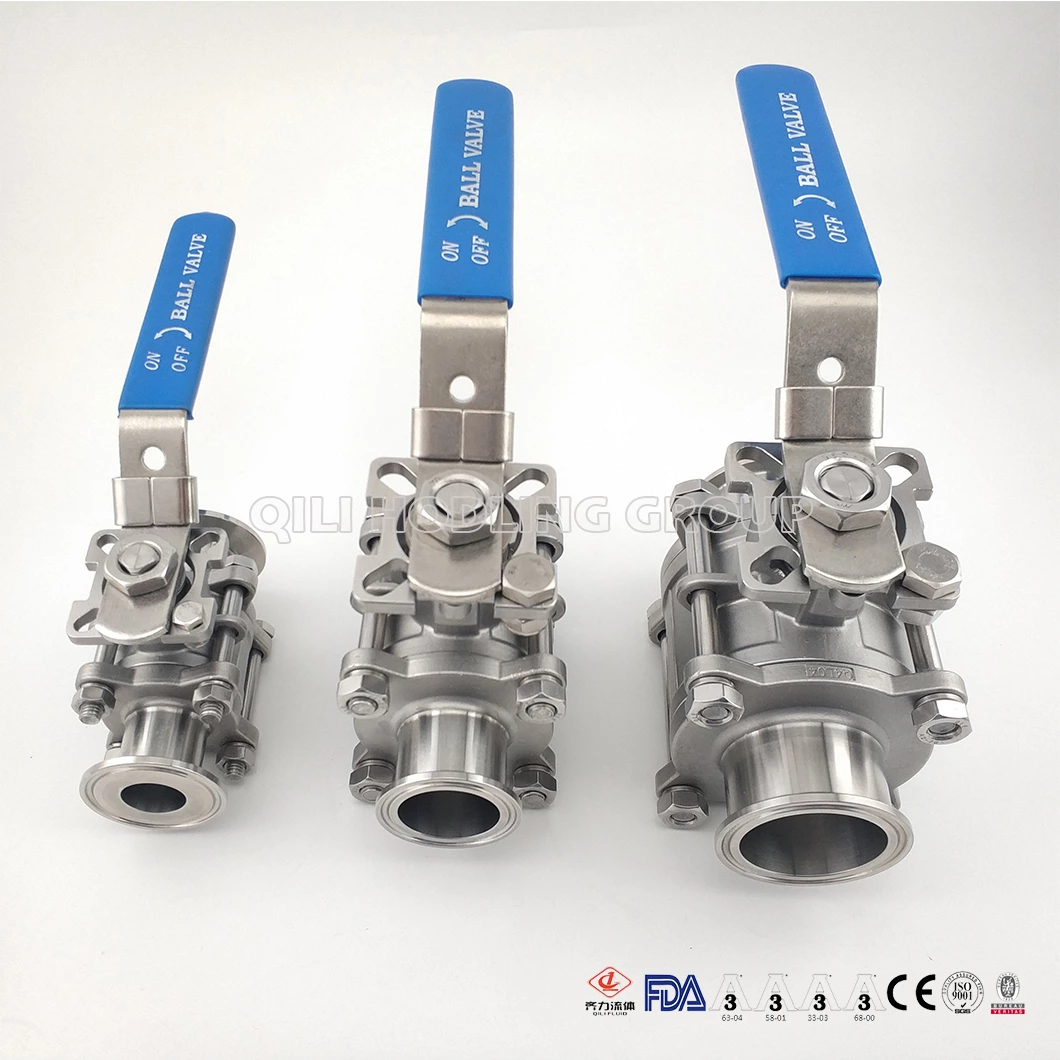

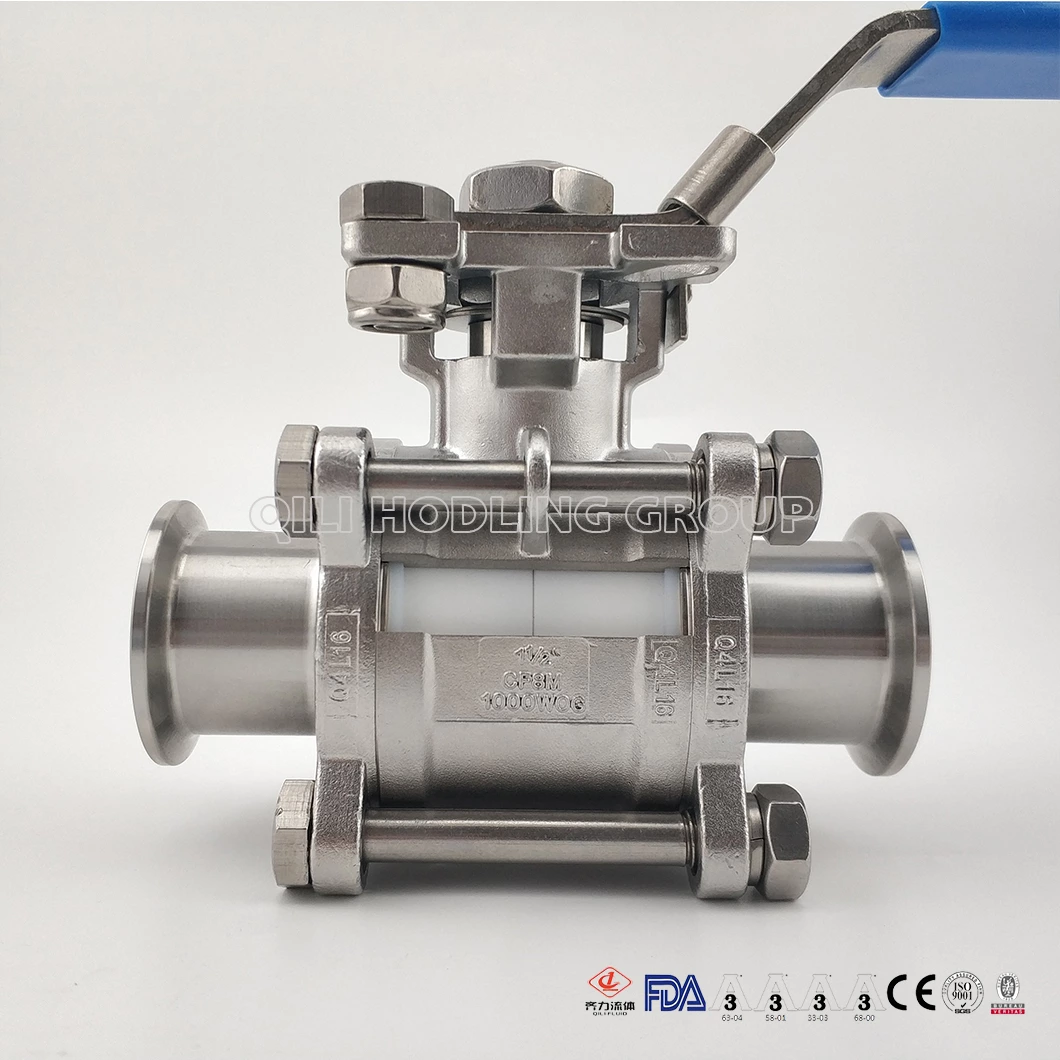

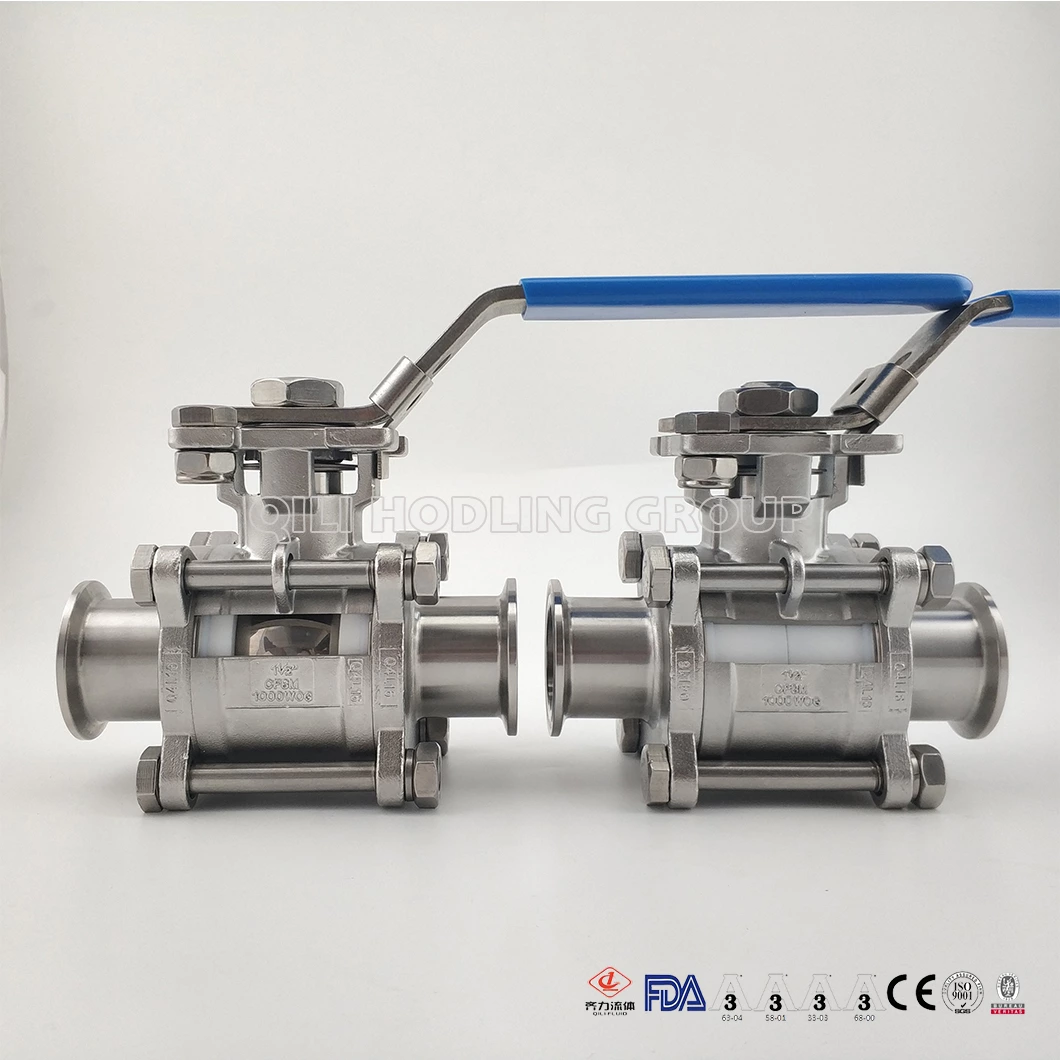

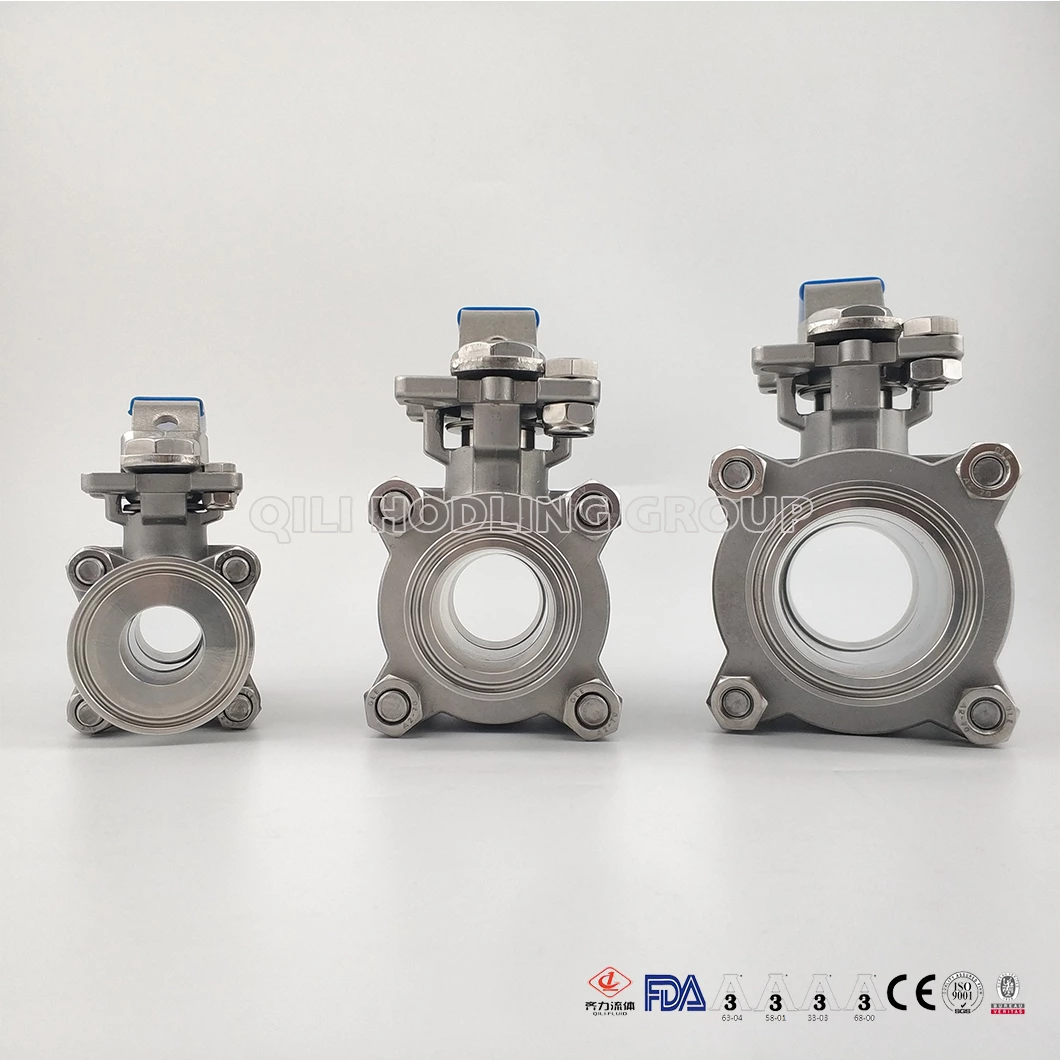

Sanitary Stainless Steel High Platform Clamped encapsulated Ball Valve
Stainless Steel High Platform Clamped Ball Valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2" -6", DN15-DN100
- Sales Models:
- wholesale or retail
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- MOQ:
- 1pc
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- cartons
Details
- Body & end caps quality investment casting
- with ISO 5211 direct mounting pad
- Adjustable stem packing
- Available in stainless steel or carbon steel
- Blow-out proof stem design
- 100% air tested under water at 80-100 psi
- Working pressure: 1000/ 800/ 600 psi
- Temperature range (PTFE) -20F to 350F
- Temperature range (TFM) -20F to 420F
- with locking function
- End type: T-Clamp, Tube weld, Extended tube weld
Option
- Spring return handle (dead man handle)
- Oval handle
- Cavity filled seats
- Polish to custom's specification
- ASME/ BPE (for SS316L)
- low ferrite ( 3%)
- low sulphur (0.005% to 0.017%)
- Automation application
- PTFE/ PFA coating (40-70 um)
- Hastalloy C/ Super duplex/ Alloy 20/ Monel

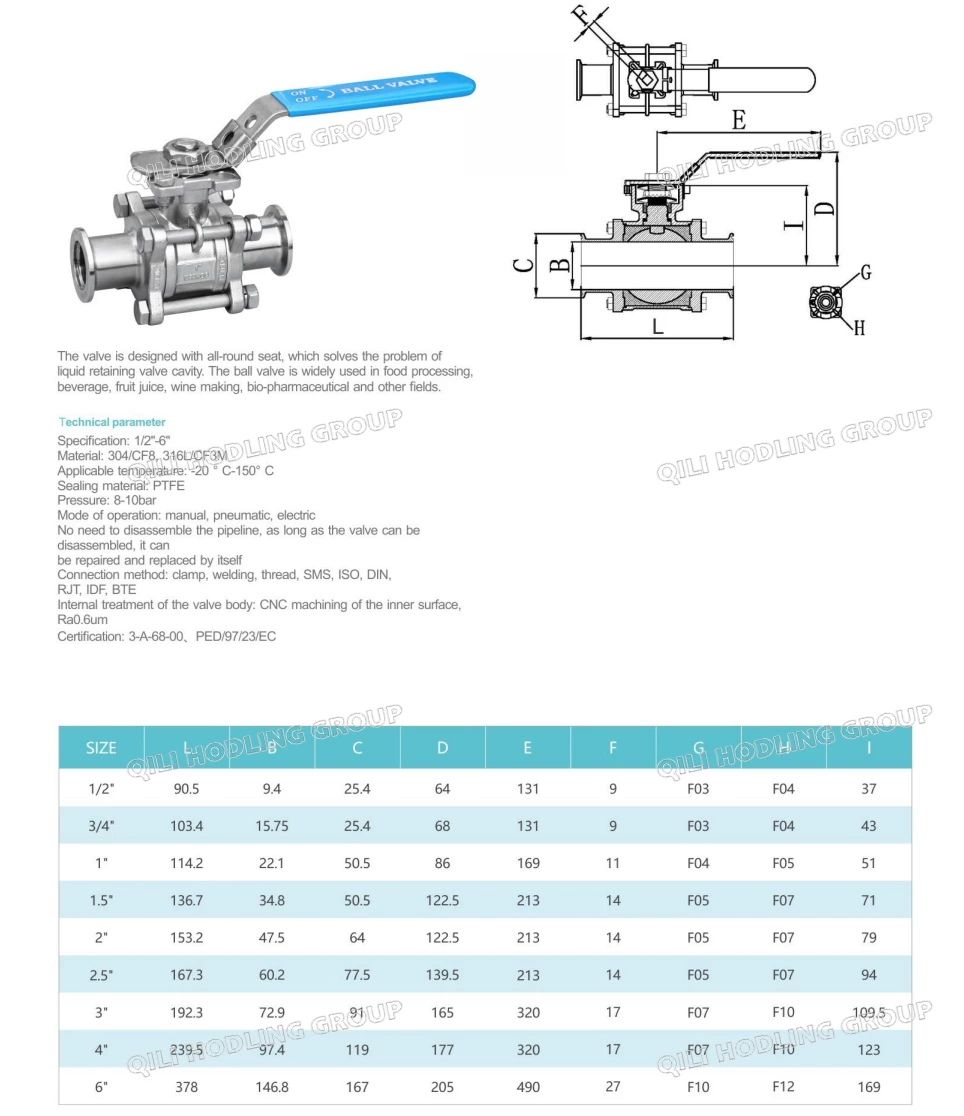

Drawings
More information
Stainless Steel High Platform Clamped Three-Way Ball Valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
