Sanitary Ball Valve

Sanitary SS304 food grade ball valve with high platfome CF8M

Model:
QLBV-325
Material:
SS304,SS316
Standard:
3A, SMS, DIN
Working Temperature:
0-250℃
Application:
FOOD GRADE, BEER ,BEVERAGE
Delivery Time:
WITHIN 15DAYS
Connection ways:
WELDE , THREAD , CLAMP
Size:
1/2" - 6"
Sales Models:
PC
Surface Treatment:
0-250℃
Pressure Value:
13BAR
MOQ:
1PC
Seal Material:
PTFE
Transport Package:
WOODEN CASE
Valve Body:
SS304 SS316
Contact Now

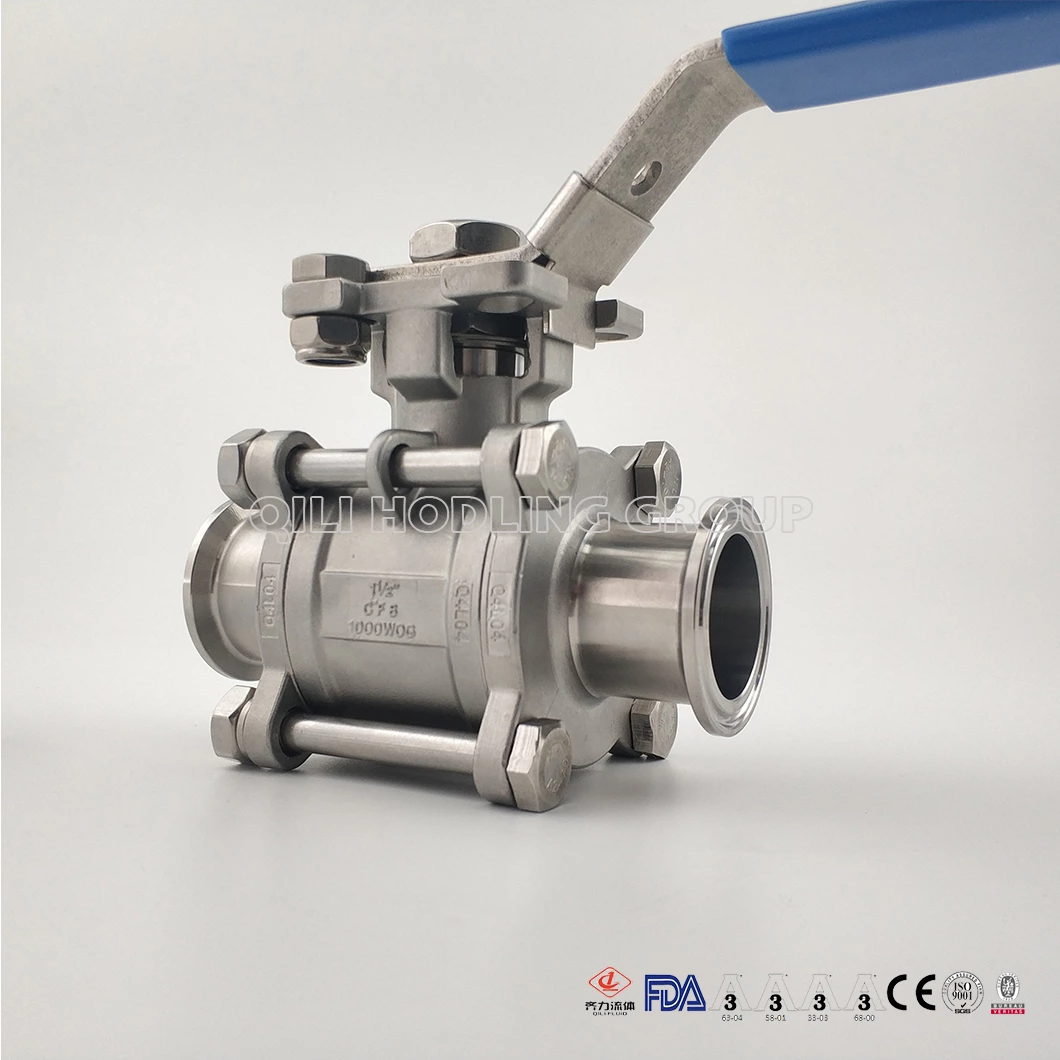

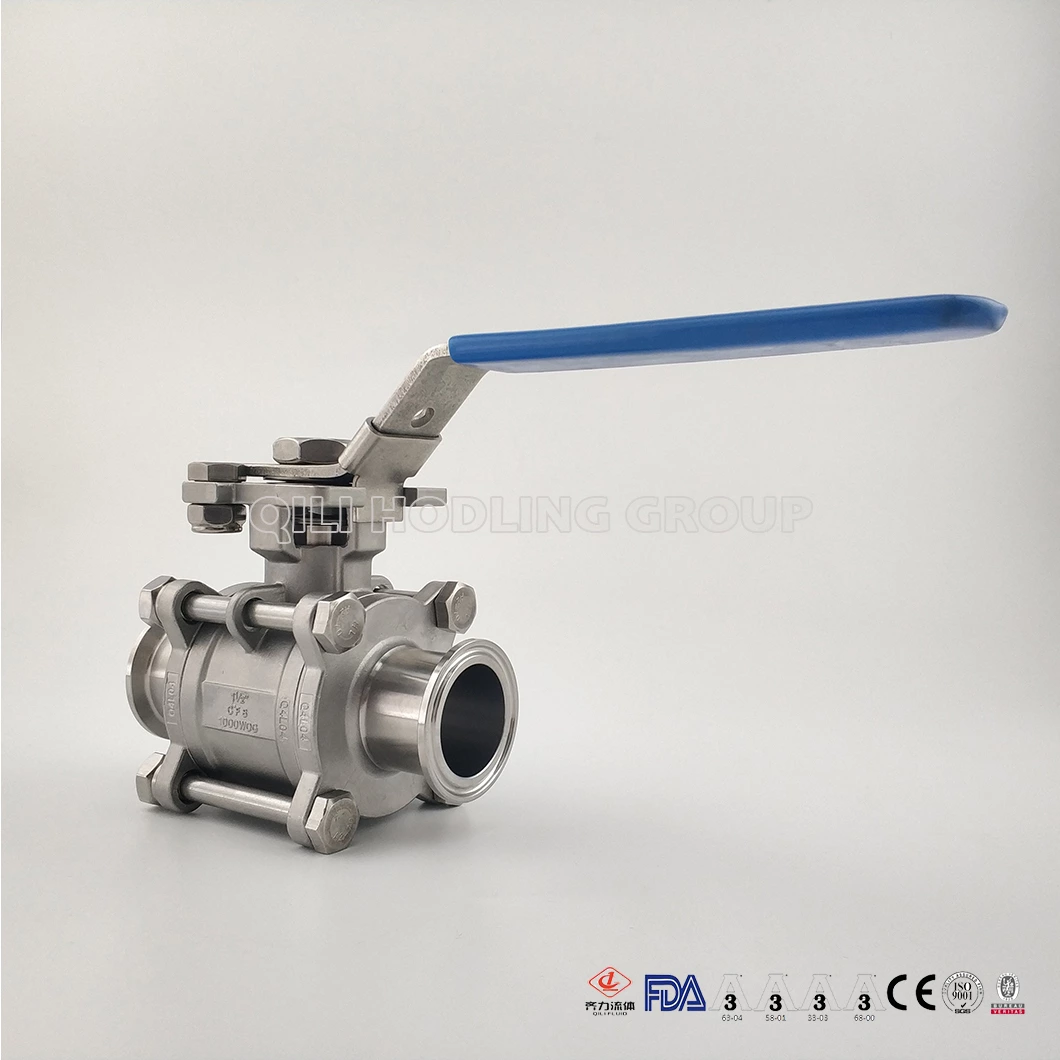

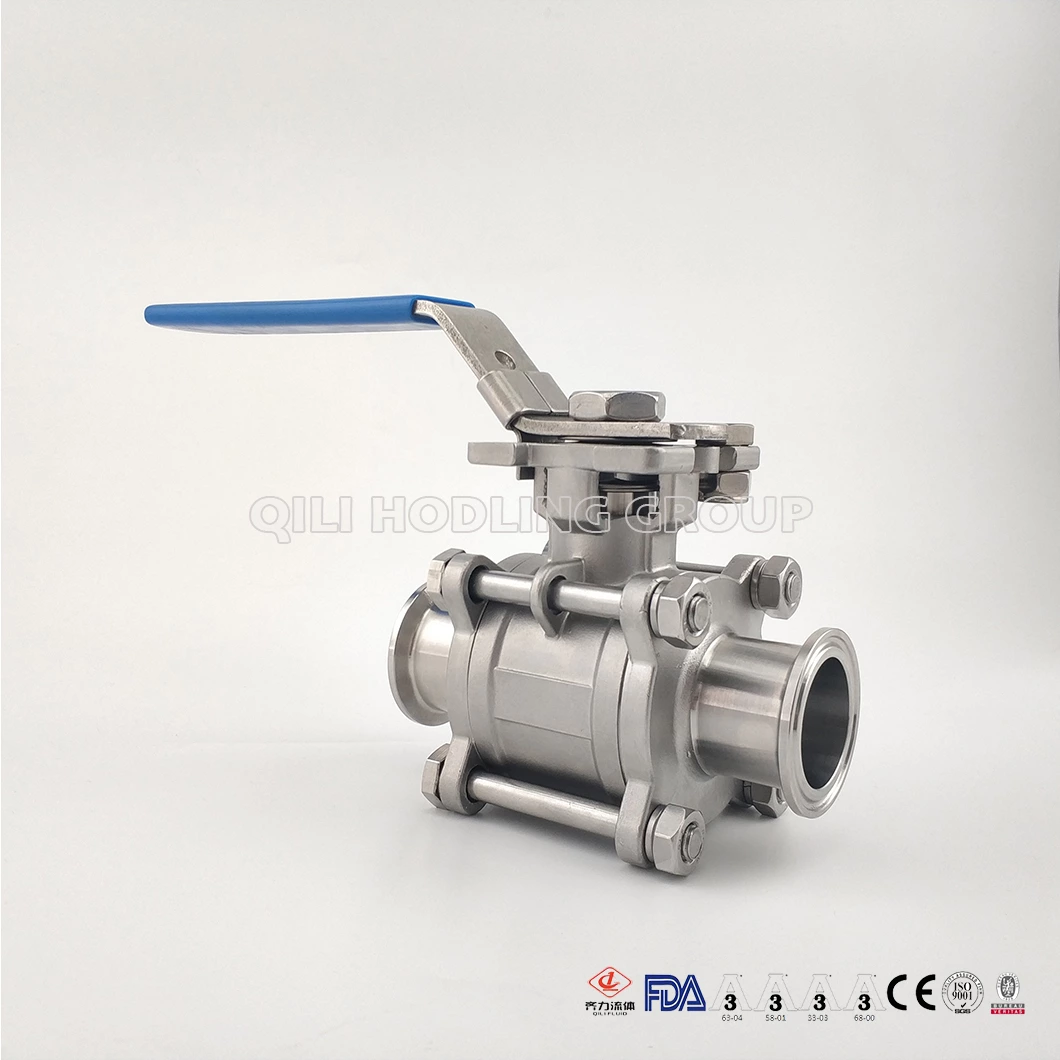

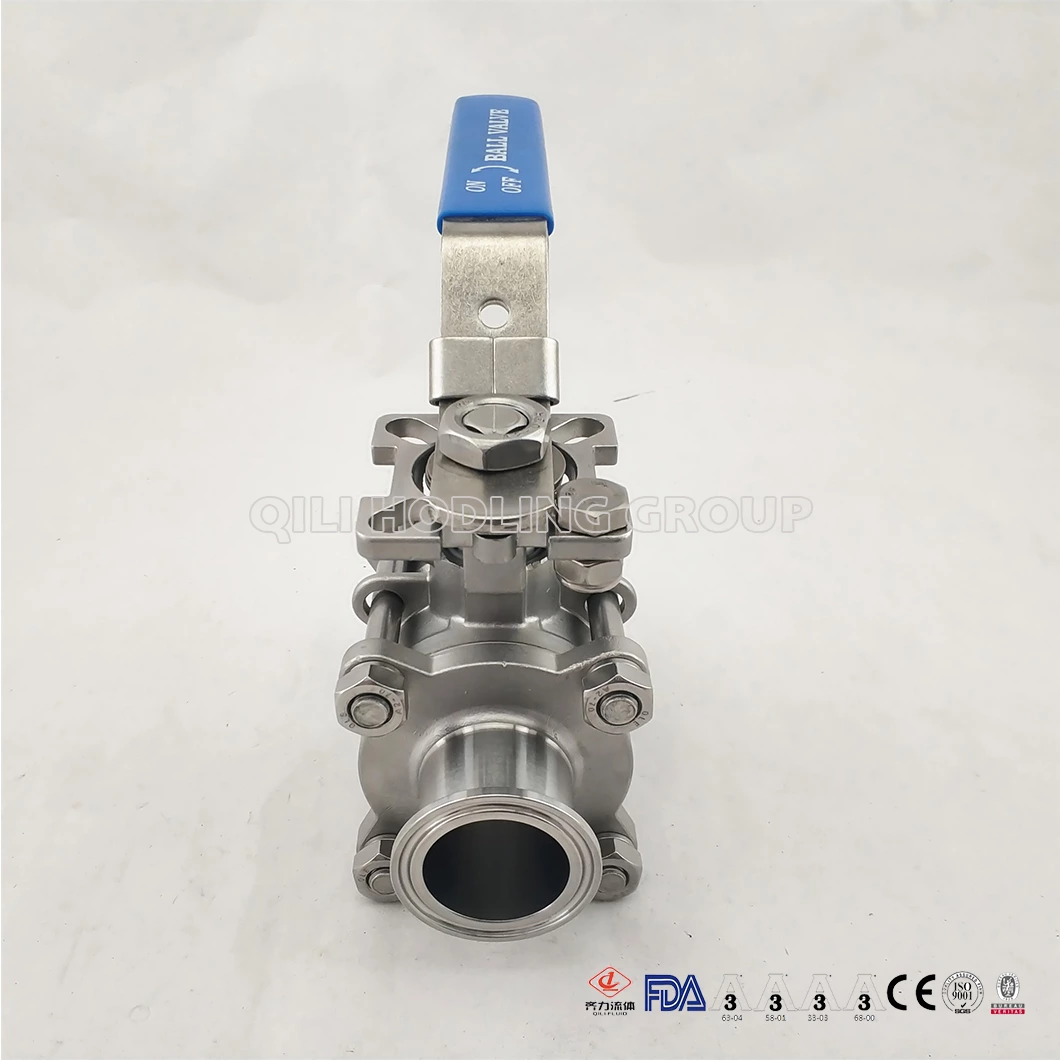

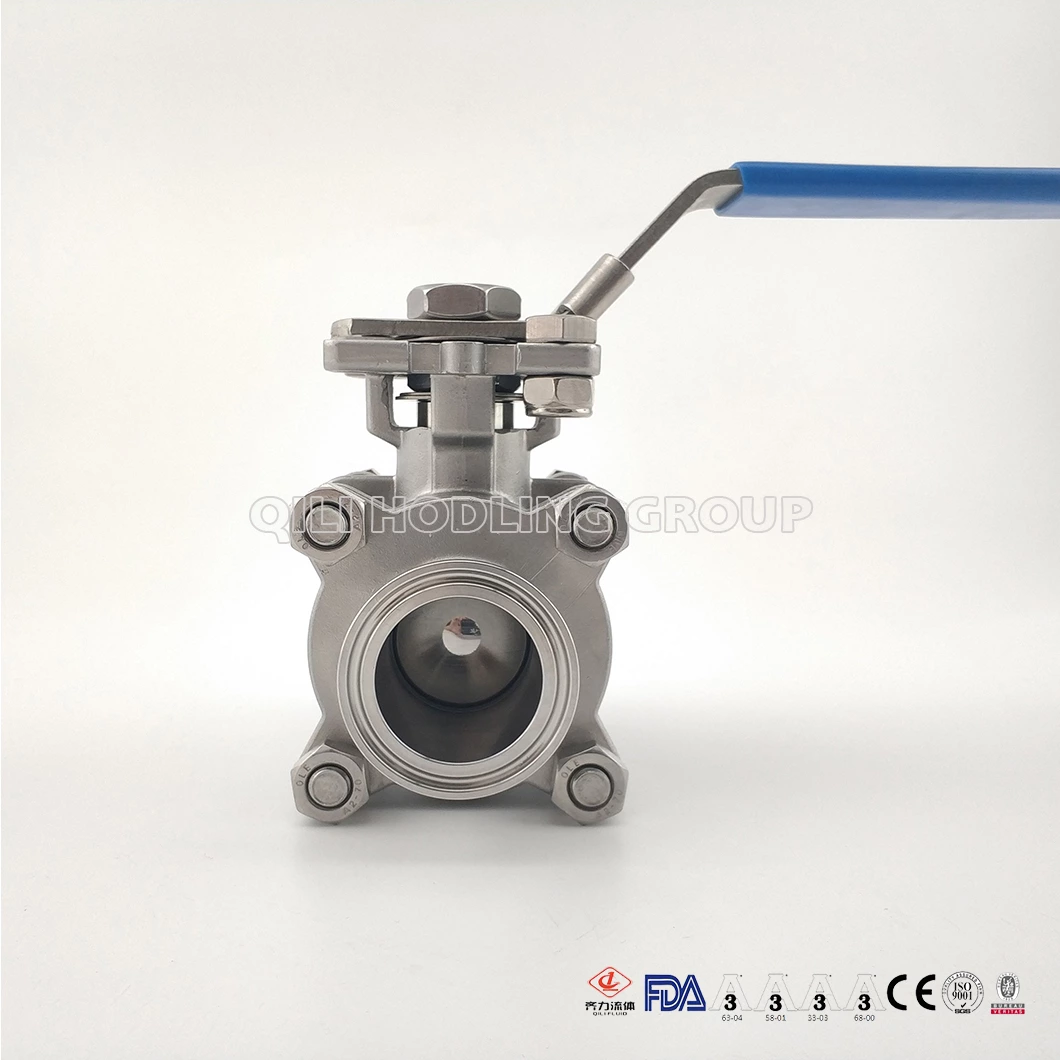

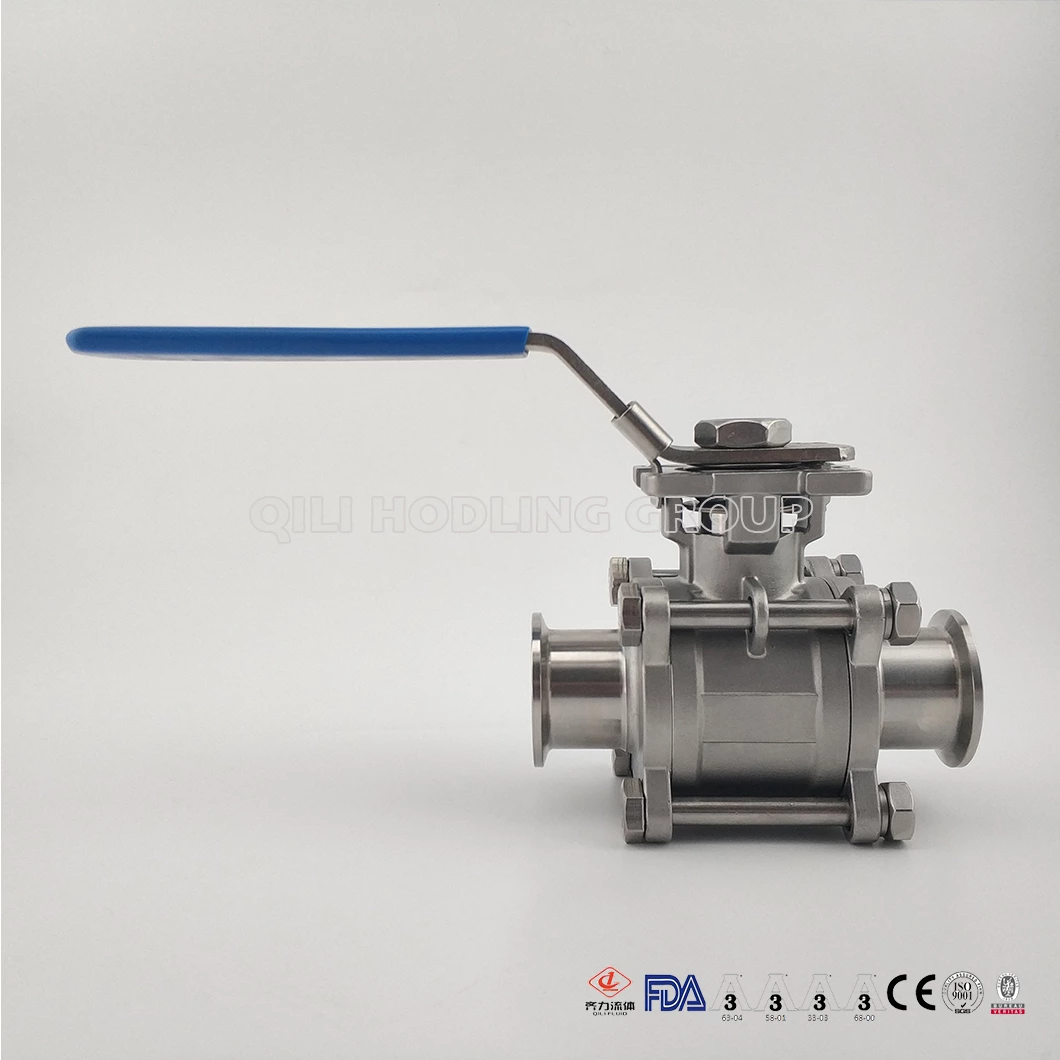

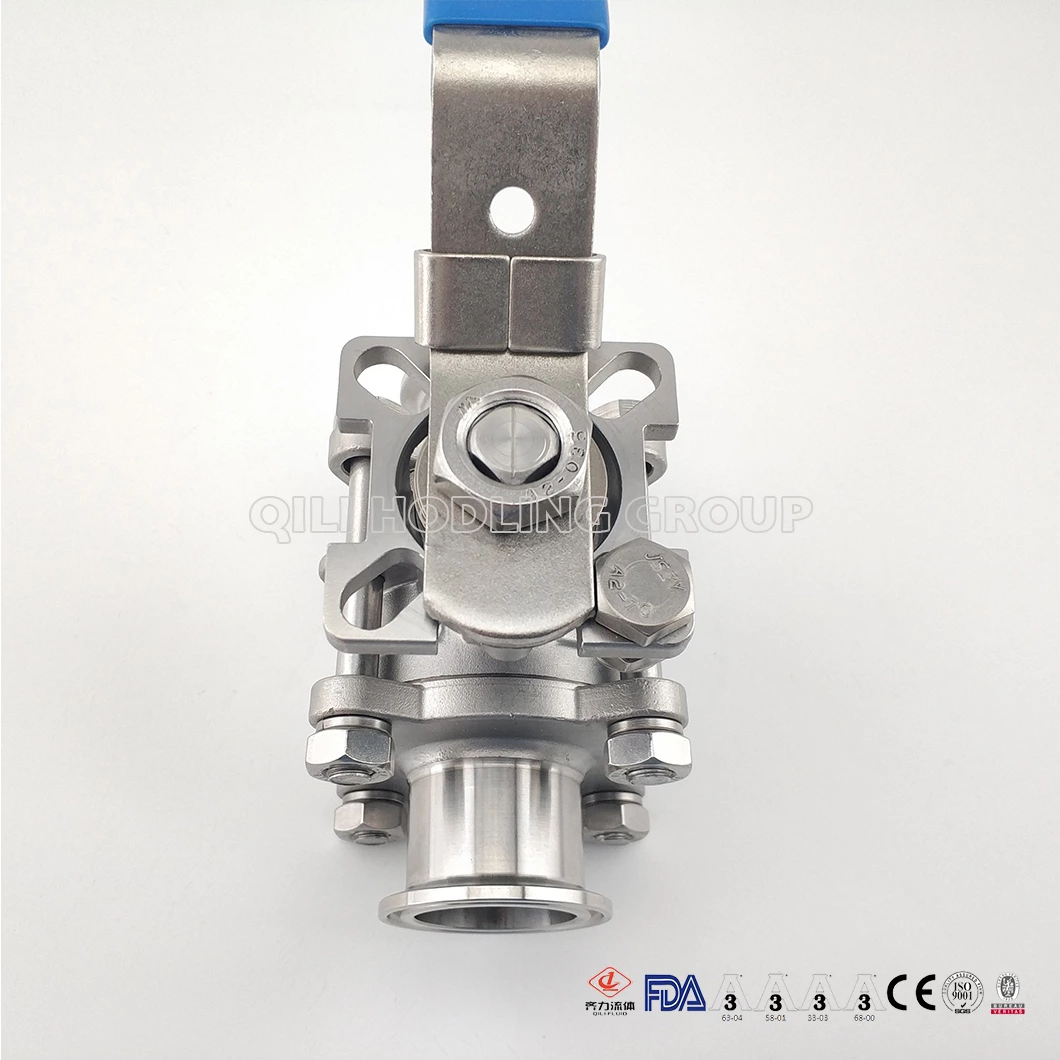

Sanitary SS304 food grade ball valve with high platfome CF8M
Sanitary SS304 food grade ball valve with high platfome CF8M Sanitary SS304 food grade ball valve with high platfome CF8M Sanitary SS304 food grade ball valve with high platfome CF8M Sanitary SS304 food grade ball valve with high platfome CF8M Sanitary SS304 food grade ball valve with high platfome CF8M Sanitary SS304 food grade ball valve with high platfome CF8M Sanitary SS304 food grade ball valve with high platfome CF8M Sanitary SS304 food grade ball valve with high platfome CF8M

Qili Two Way Sanitary Ball Valve has a full port design to reduce turbulence and pressure drop through the valve. Design features such as, lockable handles to prevent tampering, ISO 5211 mounting pads for actuation, and blowout proof stem packing are standard. Standard clamp ends make for easy assembly and disassembly when cleaning or working in tight spaces. As for the wetted parts of our Two Way Ball Valve, the ID finish of ball and ports are to a 20 Ra ID.

Our Two Way Sanitary Ball Valve comes standard with fully encapsulated seats. Which is necessary to reduce the threat of contamination for critical processes or products. Additionally, the valve requires no special tools allowing for easy maintenance and low installation costs. Each valve is capped and bagged as well as permanently etching the size, alloy and heat number for full trace-ability.

Two Way Ball Valve Features:

Lockable Handle
Passage Indication
ISO 5211 Mounting Pads for easy actuation
Live Loaded Stem Packing
No Special tools needed
Details
Available Options
Identification tagging available
304 Stainless steel stem extension available for all sizes when you need distance from insulated lines or need to dissipate heat or cold in your process between the valve and the handle or actuator. Standard extension is 6", but other lengths can be quoted as specials.
Weld ends/Male ends/Flange ends are available
PRODUCT SPECIFICATION
Alloy: T316L
Sizes: 1.00″ - 6.00″ OD
Seat: Virgin Teflon
Max operating temperature: 300°F
Finish: ID of 20 Ra ID.
ISO 5211 Mount Pads
Break torque: 281 in. lbs.
Features
Balanced encapsulated construction minimizes cold flow
Live-loaded stem packing
Precision stainless steel balls reduce torque and friction losses while extending seat life
Lockable handle can prevent accidental actuation
Standard internal entry blow out proof stem design
Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow
Compact design for areas with tight space restrictios



Our Workshops:

we has two CNC workshops total of 40 high precision CNC machines in Wenzhou City

we have one CNC workshops total of 50 high precision CNC machines in Anhui province.

Our Tubing workshops: We has two Forming & Polishing Workshops.

Our productions: Sanitary valves, Sanitary pipe fittings, Sanitary pumps, and other stainless steel items.




  QiLi Exhibition

QiLi Manage Team

1. Are you a trader or manufactory?
We are a manufactory (Forging workshop and CNC machining workshop )
2. Can you're products reach to FDA, CE, and 3A requirements?
Yes, all of our material can reach the requirements of FDA, ISO, and 3A Certificate).
3. We can supply:
Sanitary Butterfly Valve, Sanitary Check Valve, and Diaphragm Valves, as well as Various Tank Accessories: Sight Glass, Strainers/Filter, Cleaning Ball, And other Pipe Fittings, (Pipe Unions: SMS, DIN, IDF, RJT, 3A, DS; Fittings: Ferrule, Elbow, Tee, Reducer and all other non-standard fittings), all teh products are tested well by our strictly Quality Control System, and we also has excellent service to support you and promote your business.
4. Lead Time:
For large quantities, as usual, it can be sent out within 20-40 days.
Small parcels will be dispatched by DHL, FedEx, UPS, TNT Courier.
Big cargo will be delivered by Air freight or By Sea.
5. Our Service:
About payment:
Payment methods: L/C, T/ T, Western Union
6. About samples:
We can provide samples of production and service. Usually 2 to 5 days, the sample can be sent to you're hands. We will choose the shipping way as you required: By sea, by air or by express. Any questions about samples, please contact us.
7. For OEM products:
We will finish teh production wifin 20-40 days after payment has been confirmed.
About delivery and shipping:
We will choose teh delivery way as you required: By sea, by air, by express. Save you're cost is our mission.
