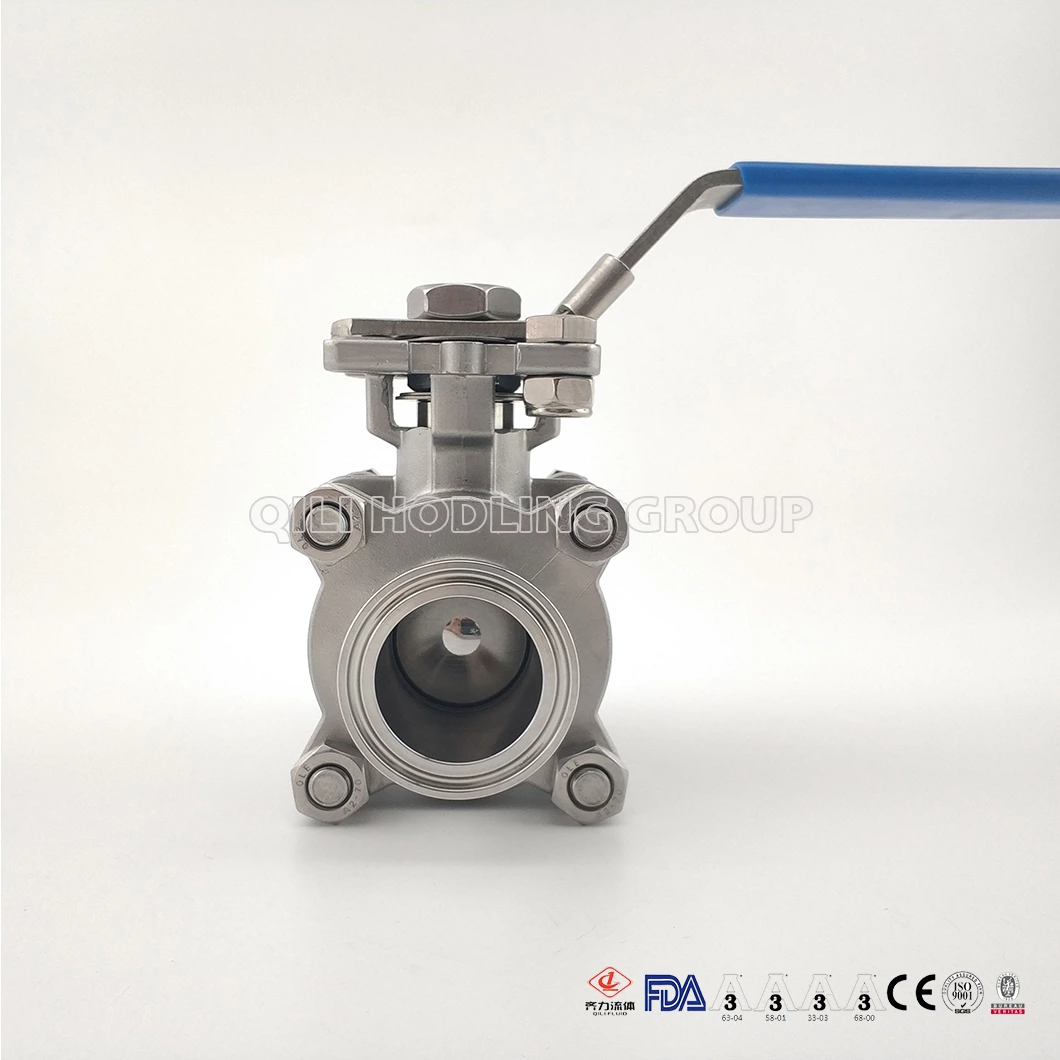

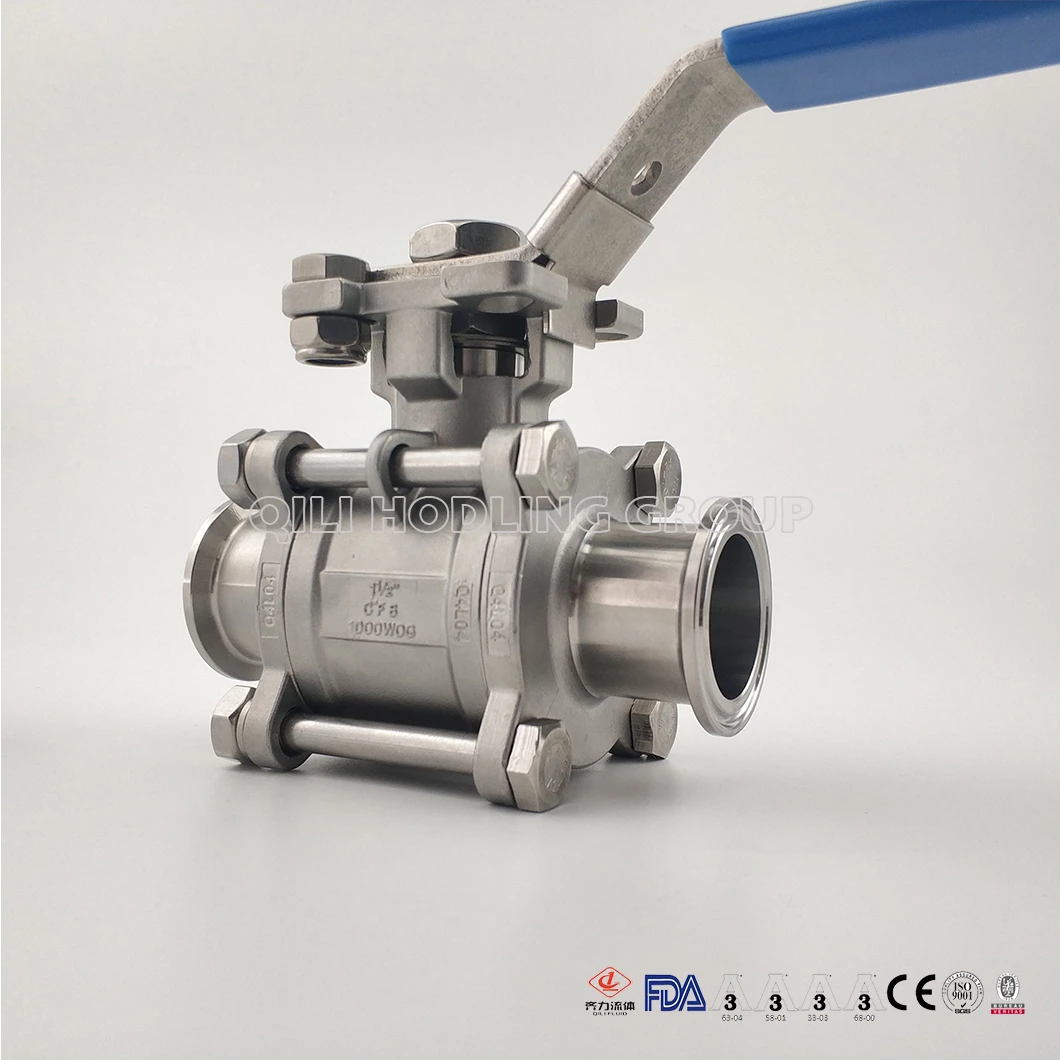

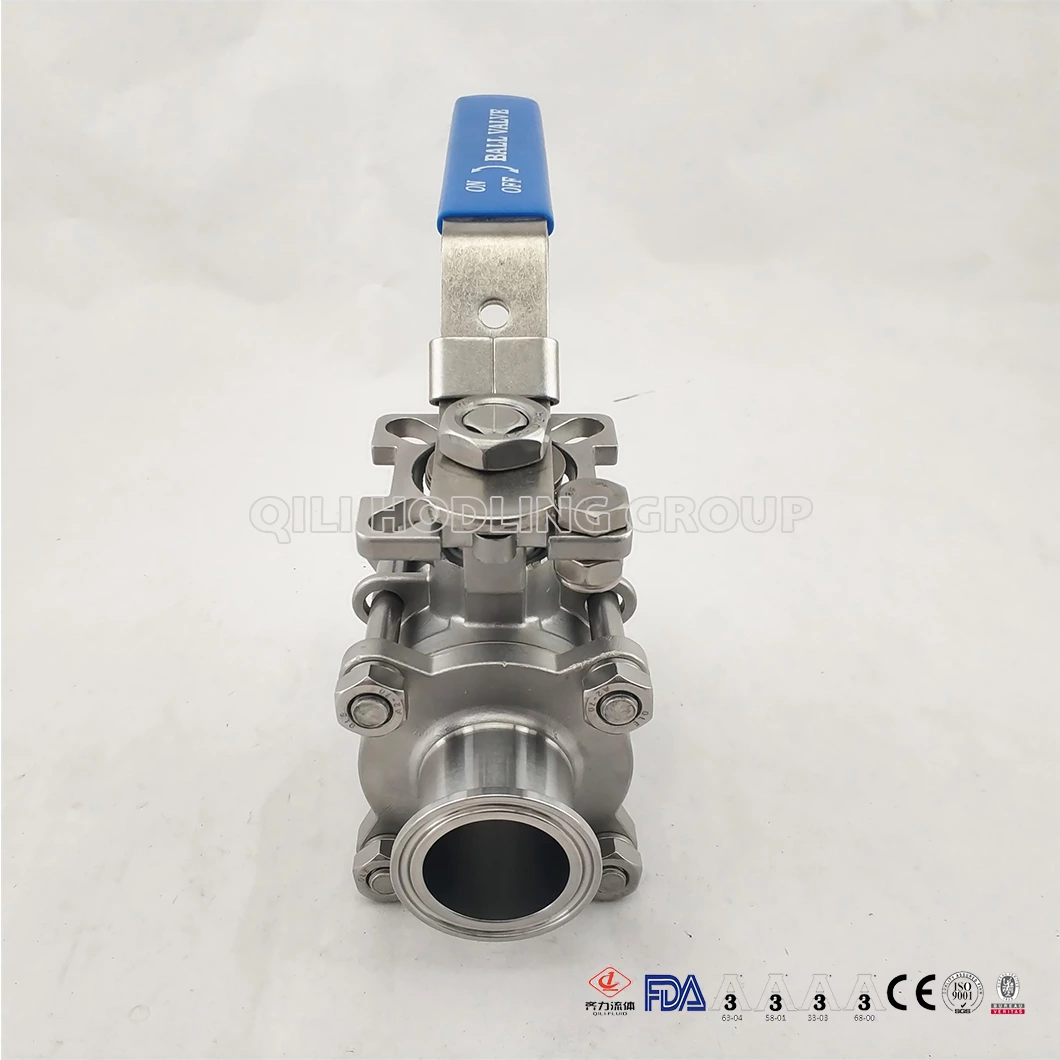

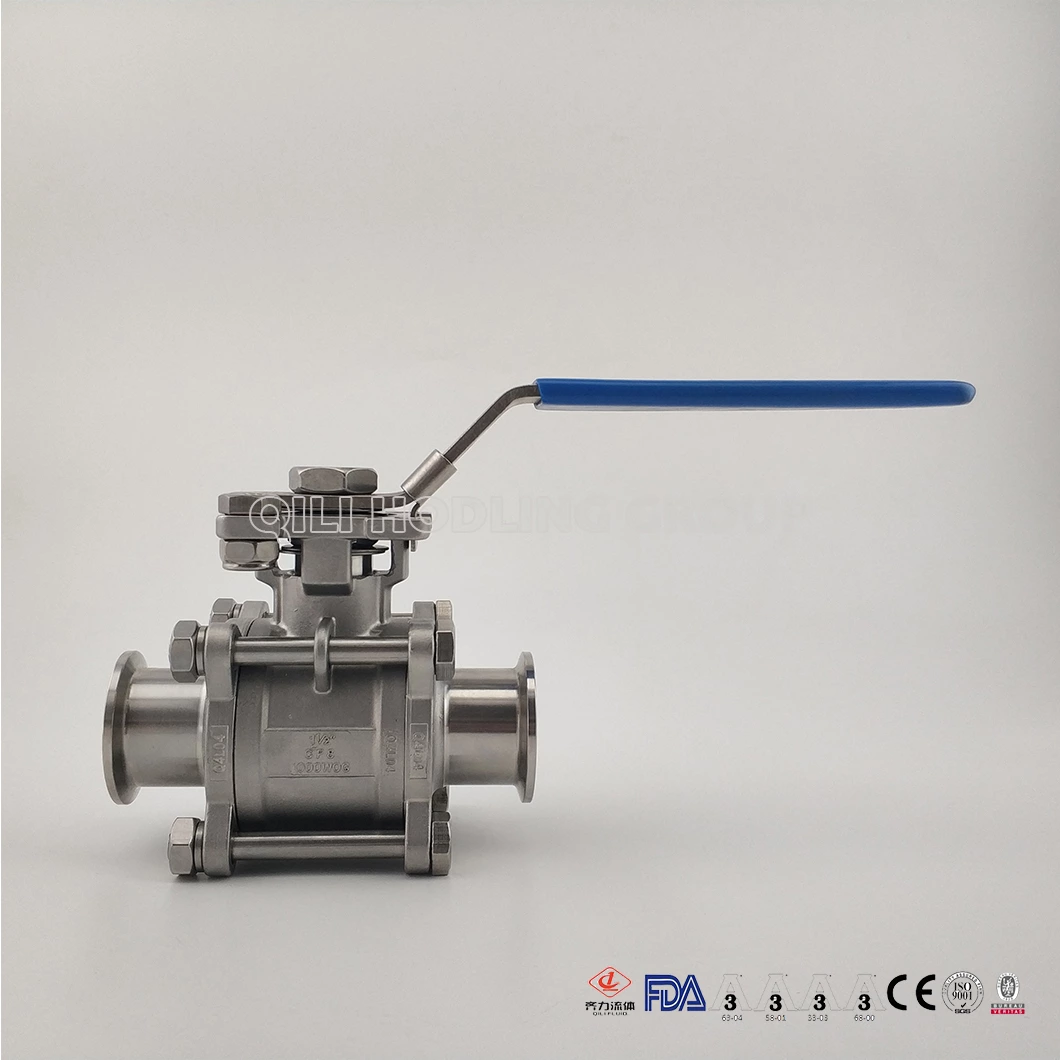

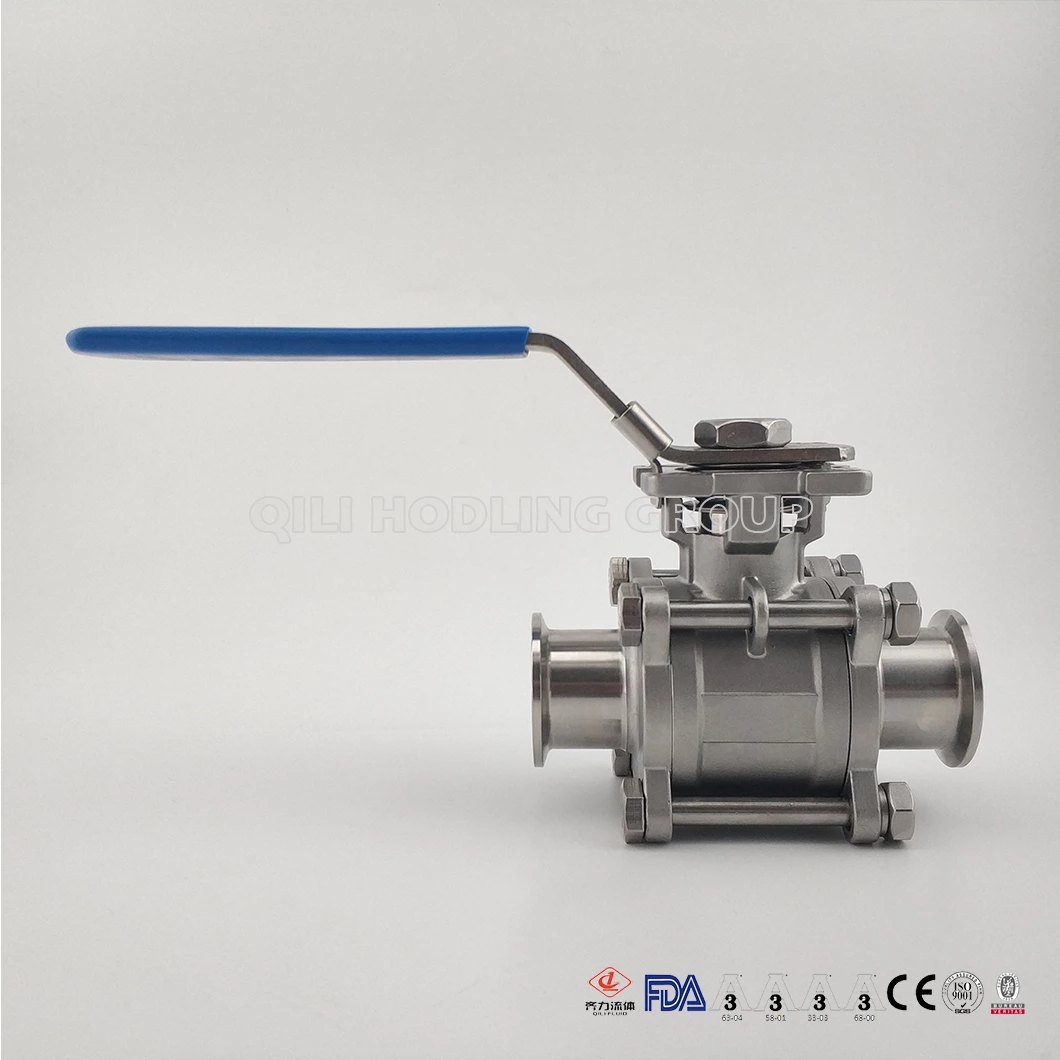

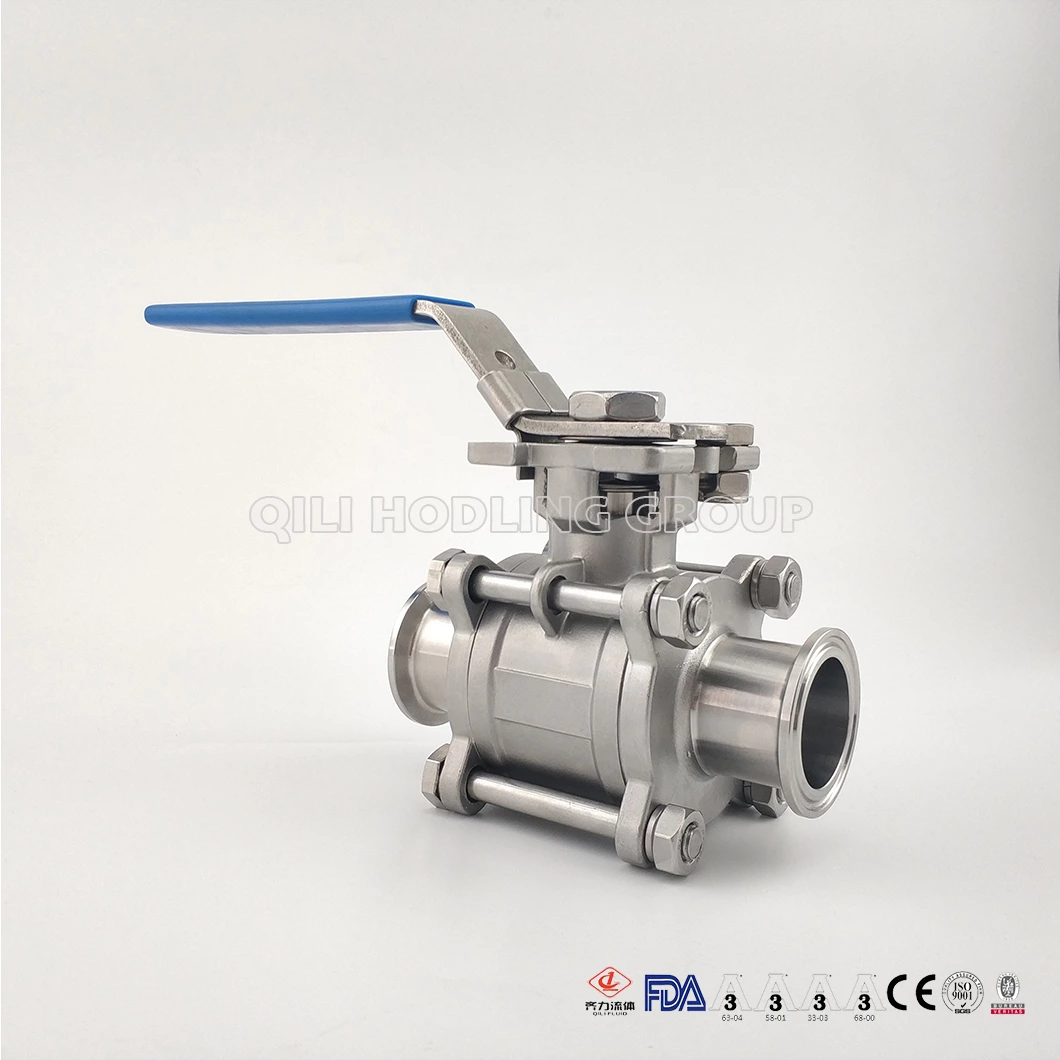

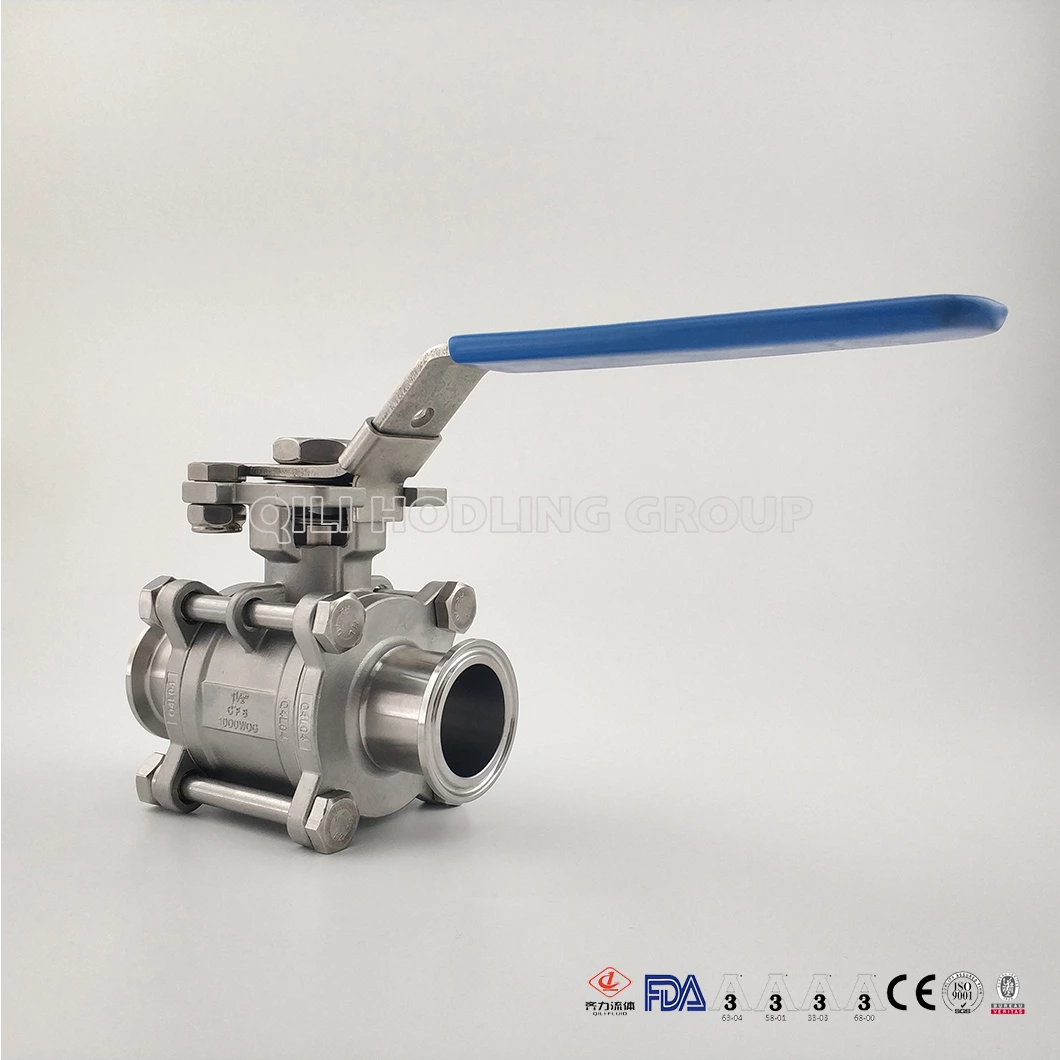

Sanitary High Platform Clamped encapsulated Ball Valve
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2" -6", DN15-DN100
- Sales Models:
- wholesale
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- MOQ:
- 1pc
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- cartons
Details
- Body & end caps quality investment casting
- with ISO 5211 direct mounting pad
- Adjustable stem packing
- Available in stainless steel or carbon steel
- Blow-out proof stem design
- 100% air tested under water at 80-100 psi
- Working pressure: 1000/ 800/ 600 psi
- Temperature range (PTFE) -20F to 350F
- Temperature range (TFM) -20F to 420F
- End type: T-Clamp, Tube weld, Extended tube weld
- Spring return handle (dead man handle)
- ASME/ BPE (for SS316L)
- low ferrite ( 3%)
- low sulphur (0.005% to 0.017%)
- Automation application
- PTFE/ PFA coating (40-70 um)
- Hastalloy C/ Super duplex/ Alloy 20/ Monel
More information
Stainless Steel High Platform Clamped Three-Way Ball Valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
The options on end types can be T-Clamp, Tube weld end, Extended tube weld end. Different material of soft kits will be applicable for different working circumstance.
ASME/ BPE (for SS316L) standard are available on 302SD, with low ferrite ( 3%), and low sulphur (0.005% to 0.017%). The finish are available for Ra 40 uin or Ra 25 u-in.
The standard bare stem type is well designed for mounting actuator directly. Qili offers pneumatic/ electric actuator and limit switch box/ solenoid valve/ modulating controller....assembling without further charge.
