Manual Stainless Steel Sanitary hygienic encapsulated Ball Valves Adjust And Control Fluids End Connection Tri Clamp
Manual Stainless Steel Sanitary Ball Valves Adjust And Control Fluids End Connection Tri Clamp
Description:
Name: Sanitary fittings ball valve with tri clamp connection
Size: 1'' to 4'' etc. ope
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2" -6", DN15-DN100
- Sales Models:
- wholesale or retail
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- MOQ:
- 1pc
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- cartons
Details
- Name: Sanitary fittings ball valve with tri clamp connection
- Size: 1'' to 4'' etc. opened by turning handles attached to balls inside the valves.
- Materials: 316 Stainless Steel construction
- end connection : Tri clamp,weld,flange, thread etc.
- End Types: Tri-Clamp, weld,flange, thread etc.
- Valve body : Encapsulated, Non-encapsulated ball valves
- Gaskets: PTFE/ teflon seats.
- Applicable media: drinking water, alcohol, oils, pharmaceutical chemicals and High chemical corrosion media etc.

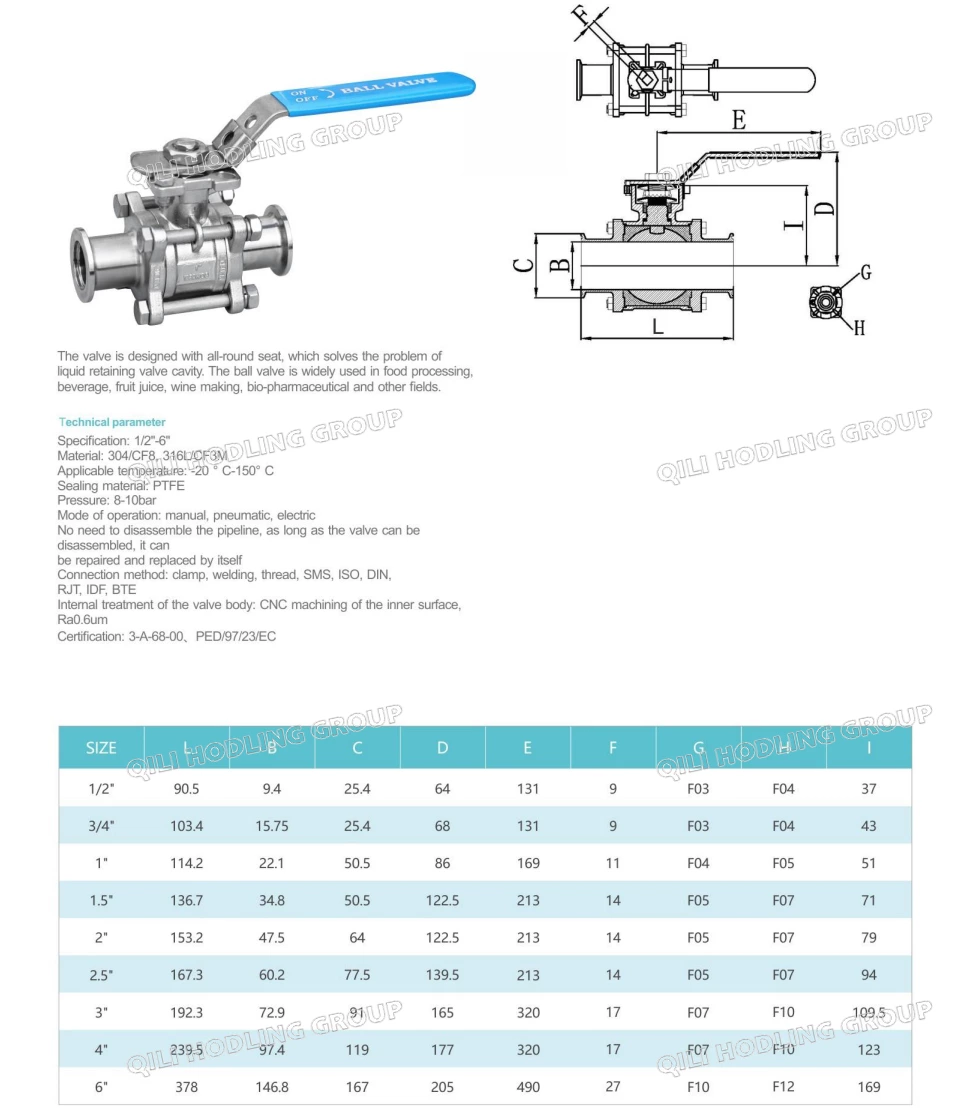

Drawings
