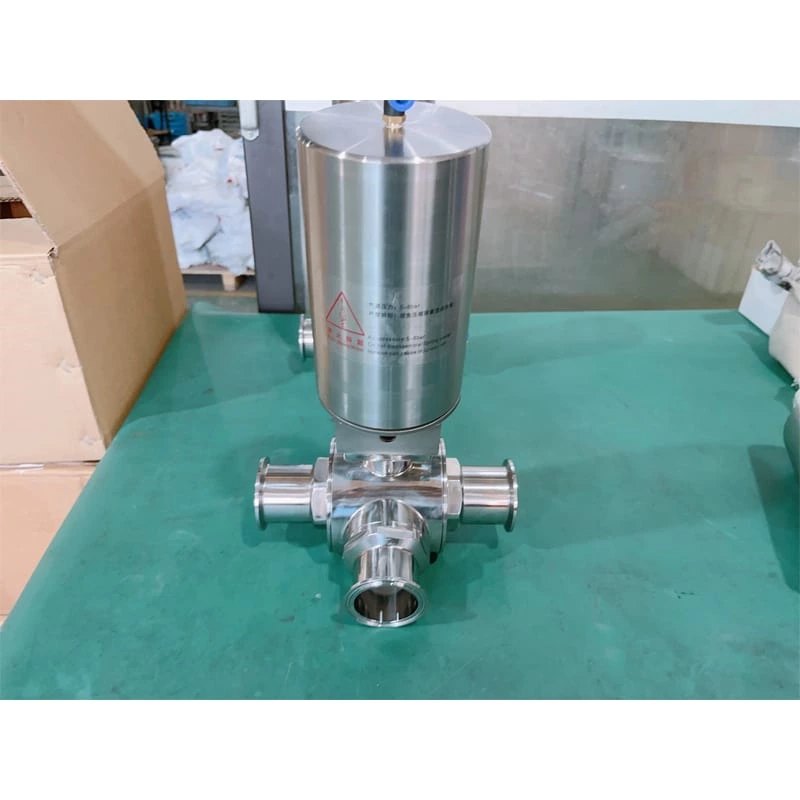

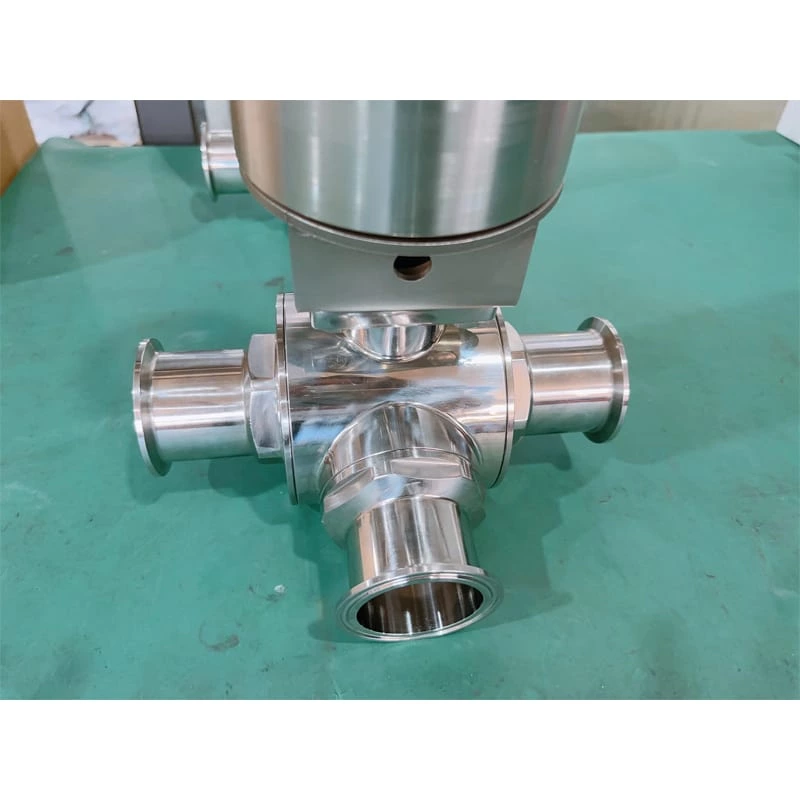

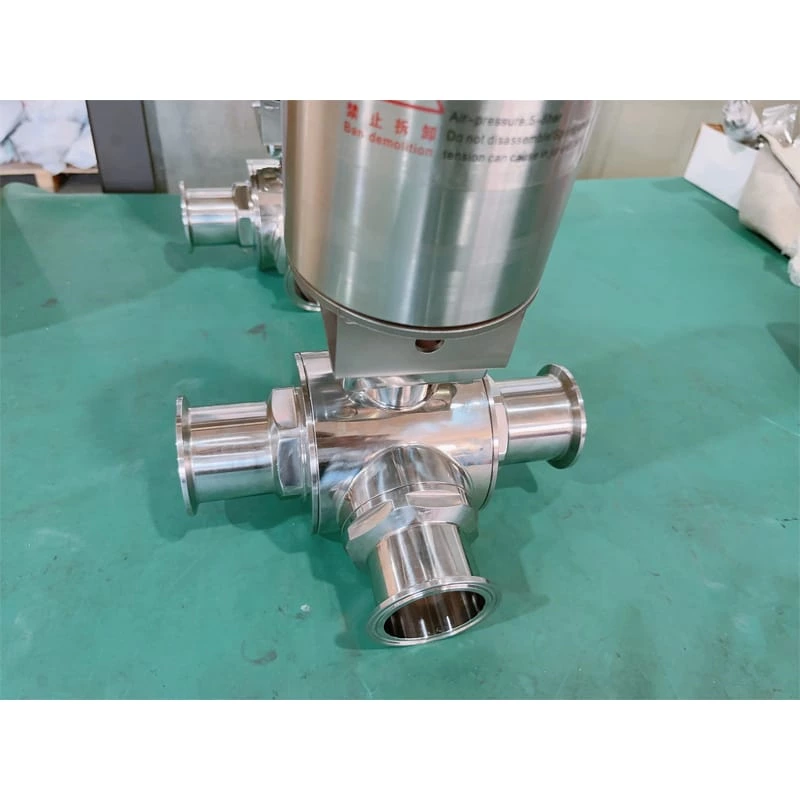

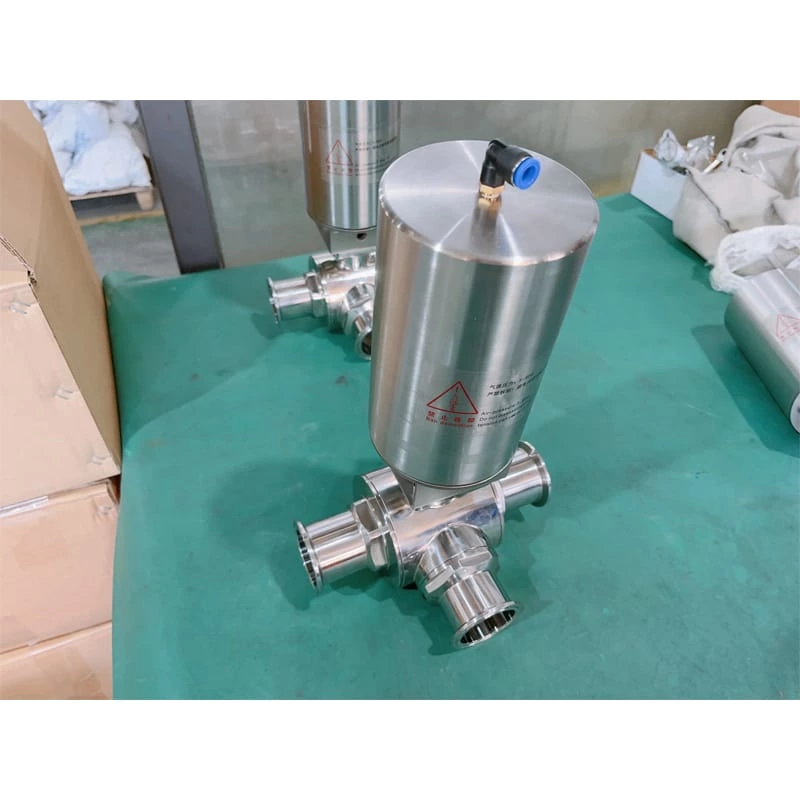

hygienic 3-pcs ball valves with pneumatic actuator

Specification Alloy: T316L/T304 Sizes: 1/2″ - 6.00″ OD Seat: Virgin Teflon Max operating temperature: 300°F Finish: ID of 20 Ra ID. ISO 5211 Mount Pads Break torque: 281 in. lbs. Applic
Material:
SS304 /SS316L
Standard:
3A,SMS,ISO,RJT,DIN,IDF
Working Temperature:
-20 to 150℃
Connection ways:
welde,clamp, thread
Size:
1/2" -6", DN15-DN100
Sales Models:
wholesale or retail
Valve Seal:
encapsulated
Surface Treatment:
Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
Pressure Value:
10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
Seal Material:
EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
hygienic 3-pcs ball valves with pneumatic actuator
hygienic 3-pcs ball valves with pneumatic actuator hygienic 3-pcs ball valves with pneumatic actuator hygienic 3-pcs ball valves with pneumatic actuator hygienic 3-pcs ball valves with pneumatic actuator hygienic 3-pcs ball valves with pneumatic actuator hygienic 3-pcs ball valves with pneumatic actuator

Specification

  • Alloy: T316L/T304
  • Sizes: 1/2″ - 6.00″ OD
  • Seat: Virgin Teflon
  • Max operating temperature: 300°F
  • Finish: ID of 20 Ra ID.
  • ISO 5211 Mount Pads
  • Break torque: 281 in. lbs.



Application

Qili Two Way Sanitary Ball Valve has a full port design to reduce turbulence and pressure drop through the valve. Design features such as, lockable handles to prevent tampering, ISO 5211 mounting pads for actuation, and blowout proof stem packing are standard. Standard clamp ends make for easy assembly and disassembly when cleaning or working in tight spaces. As for the wetted parts of our Two Way Ball Valve, the ID finish of ball and ports are to a 20 Ra ID.

Our Two Way Sanitary Ball Valve comes standard with fully encapsulated seats. Which is necessary to reduce the threat of contamination for critical processes or products. Additionally, the valve requires no special tools allowing for easy maintenance and low installation costs. Each valve is capped and bagged as well as permanently etching the size, alloy and heat number for full trace-ability.



Features

Lockable Handle
Passage Indication
ISO 5211 Mounting Pads for easy actuation
Live Loaded Stem Packing
No Special tools needed

Balanced encapsulated construction minimizes cold flow
Live-loaded stem packing
Precision stainless steel balls reduce torque and friction losses while extending seat life
Lockable handle can prevent accidental actuation
Standard internal entry blow out proof stem design
Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow
Compact design for areas with tight space restrictions


Details

Available Options
Identification tagging available
304 Stainless steel stem extension available for all sizes when you need distance from insulated lines or need to dissipate heat or cold in your process between the valve and the handle or actuator. Standard extension is 6", but other lengths can be quoted as specials.
