Sanitary Ball Valve

CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves

Material:
316L
Standard:
3A, SMS, DIN,ISO,IDF,RJT,etc.
Working Temperature:
-20℃ -150℃
Application:
food, beverage, wine, cosmetic,etc.
Connection ways:
welding, tri-clamp, thread
Size:
1/2"-4" ,DN25-DN100
Type:
3-way ball valves
Surface Treatment:
Inside mirror polished or electric polished
Pressure Value:
8-30bar
MOQ:
1PC
Seal Material:
PTFE,TFM 1600,UHMWPE
Transport Package:
cartons
Contact Now Download PDF

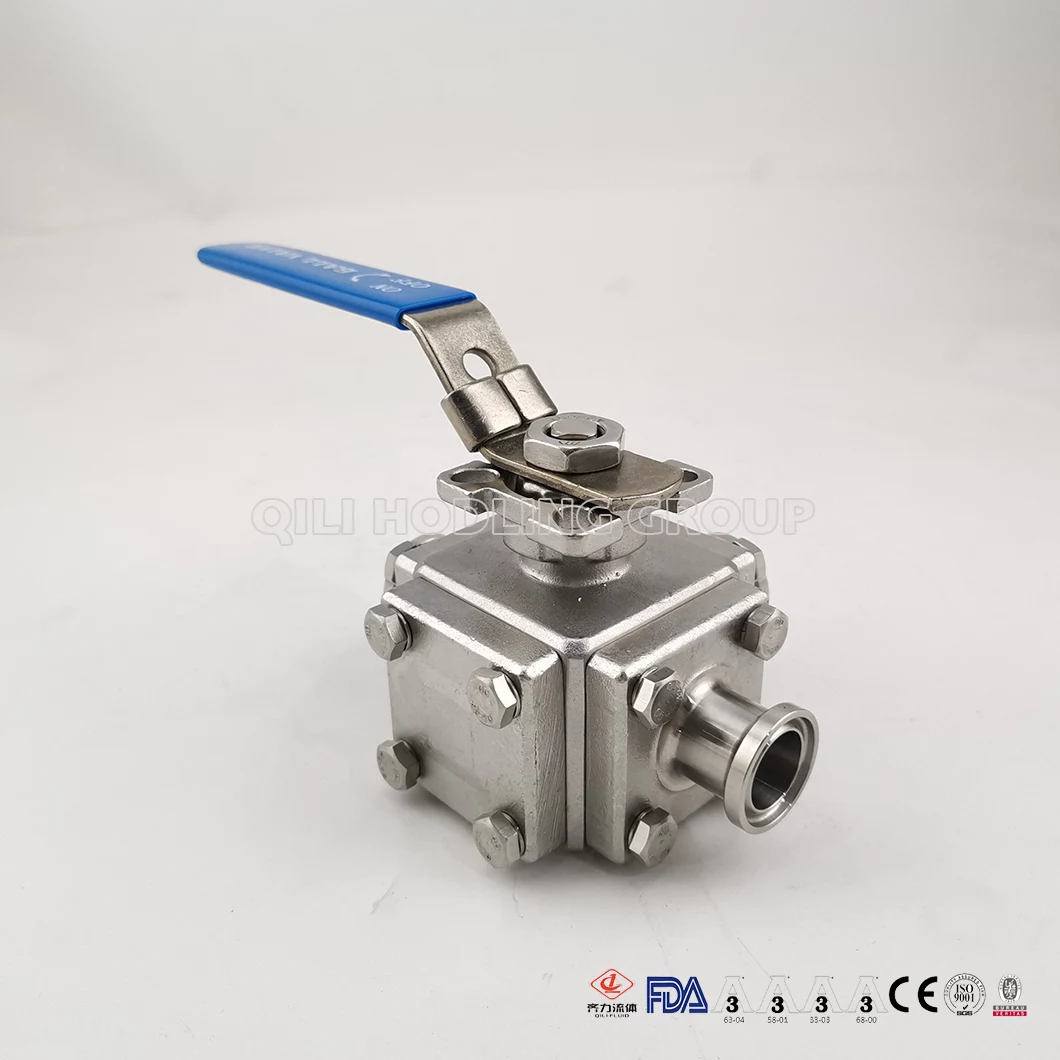

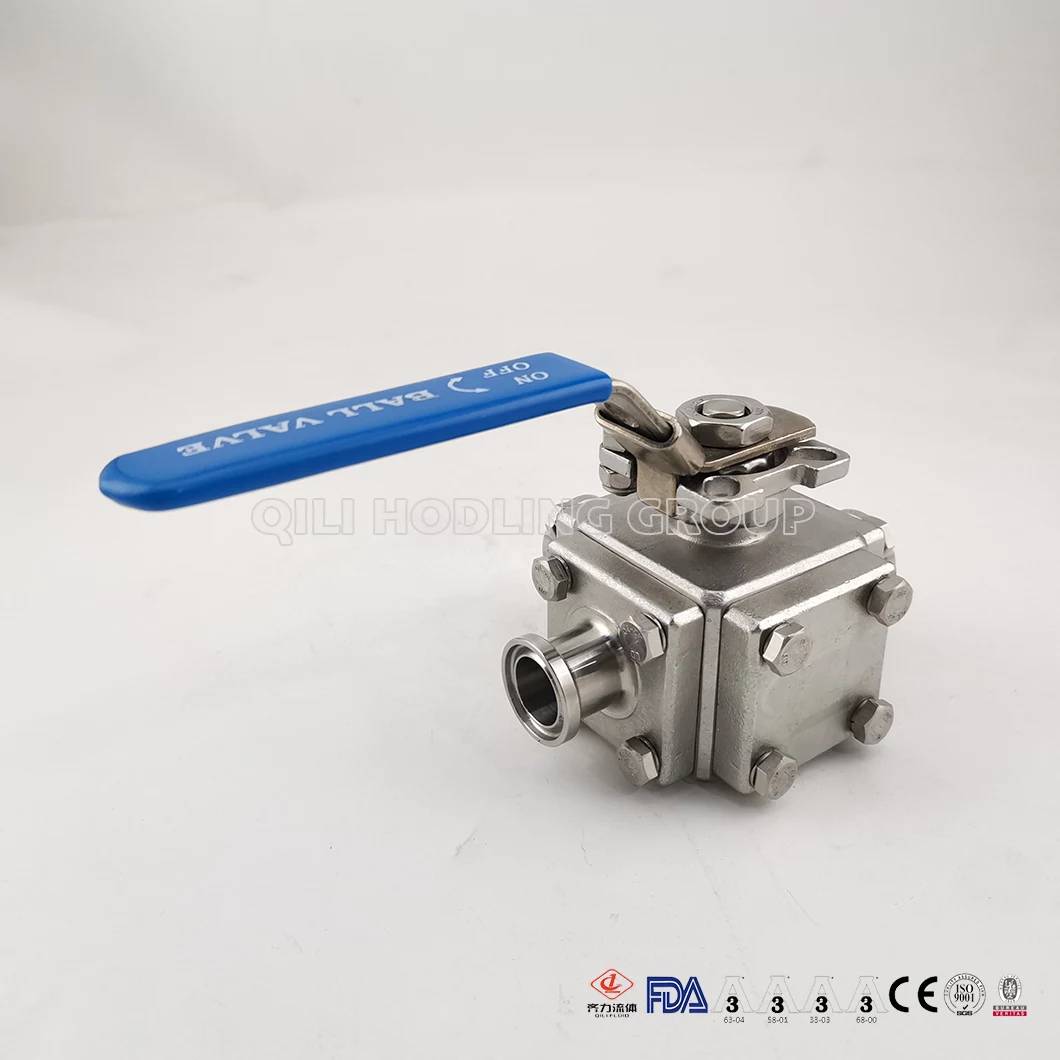

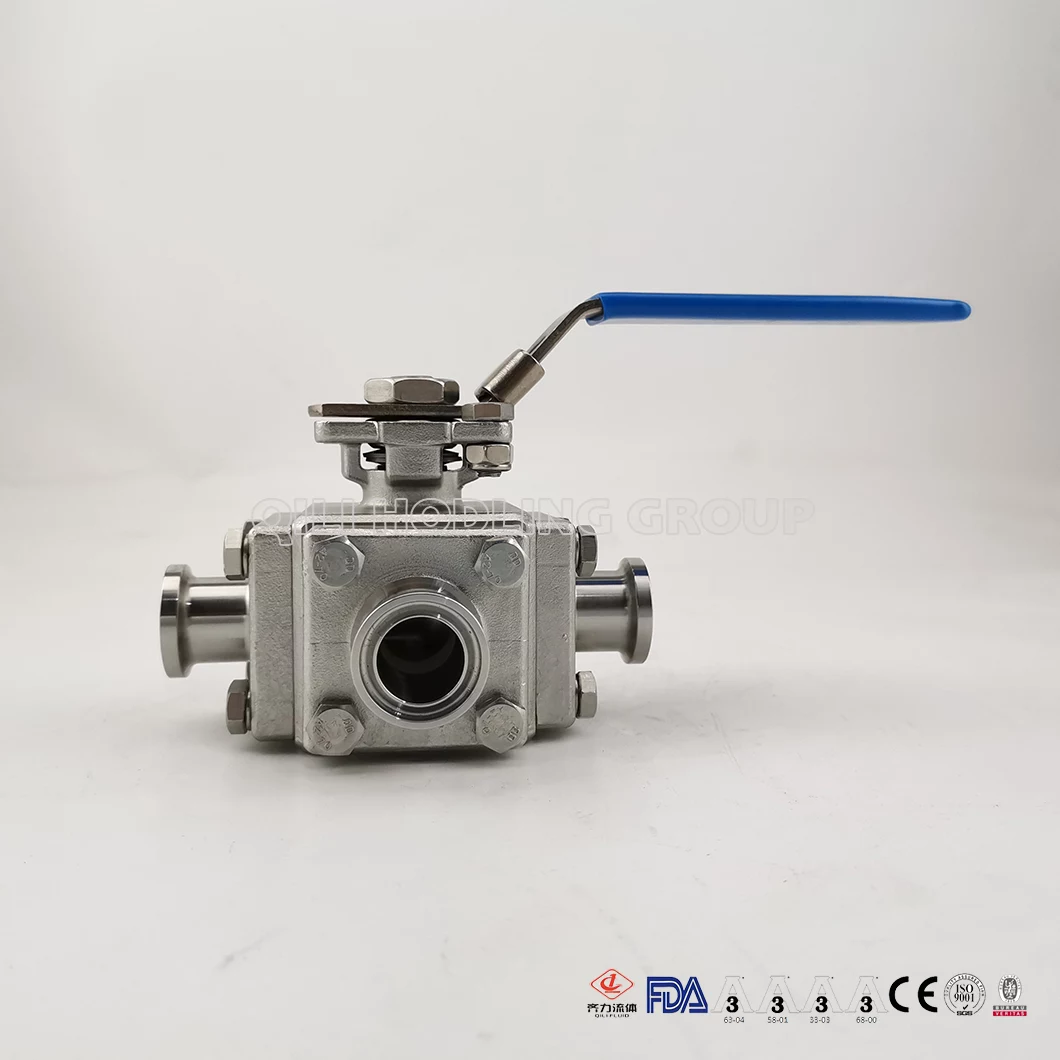

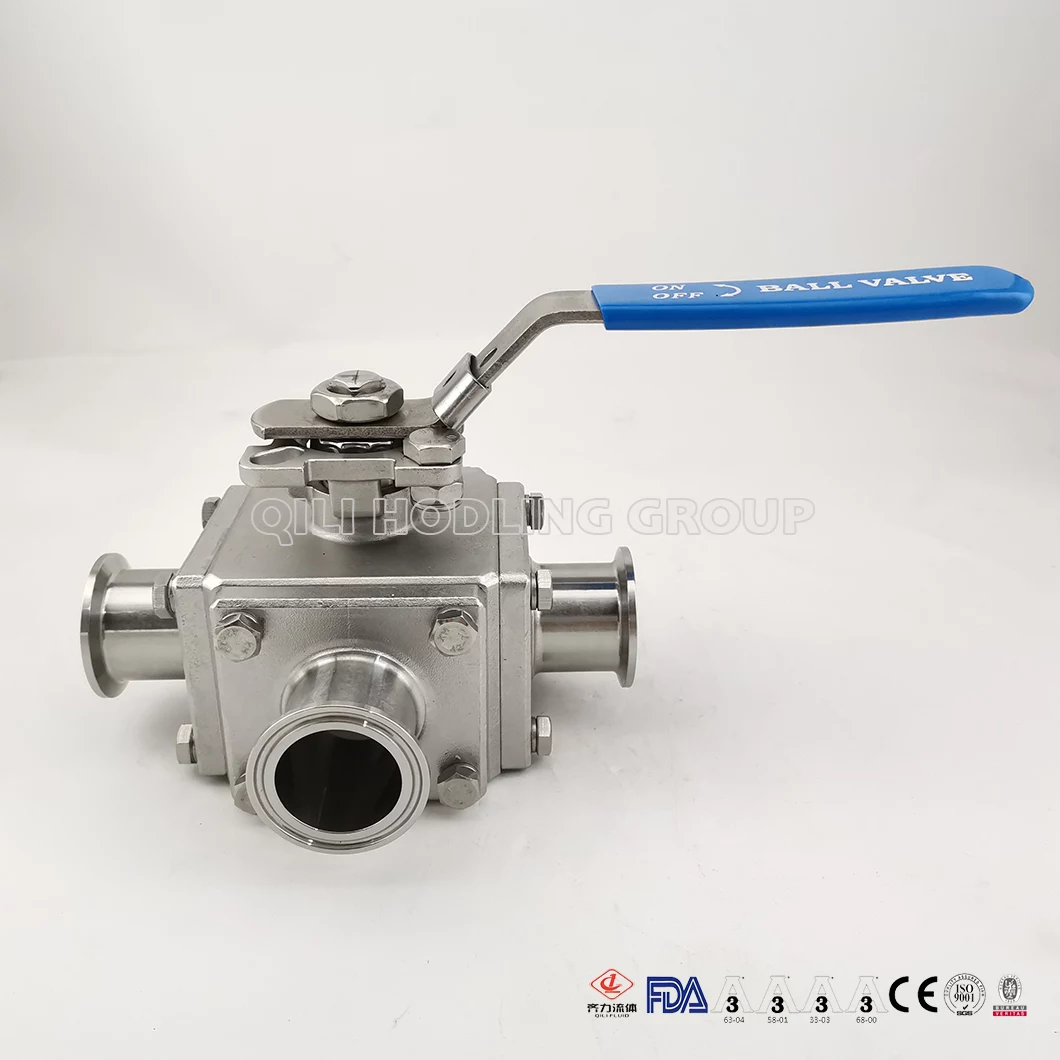

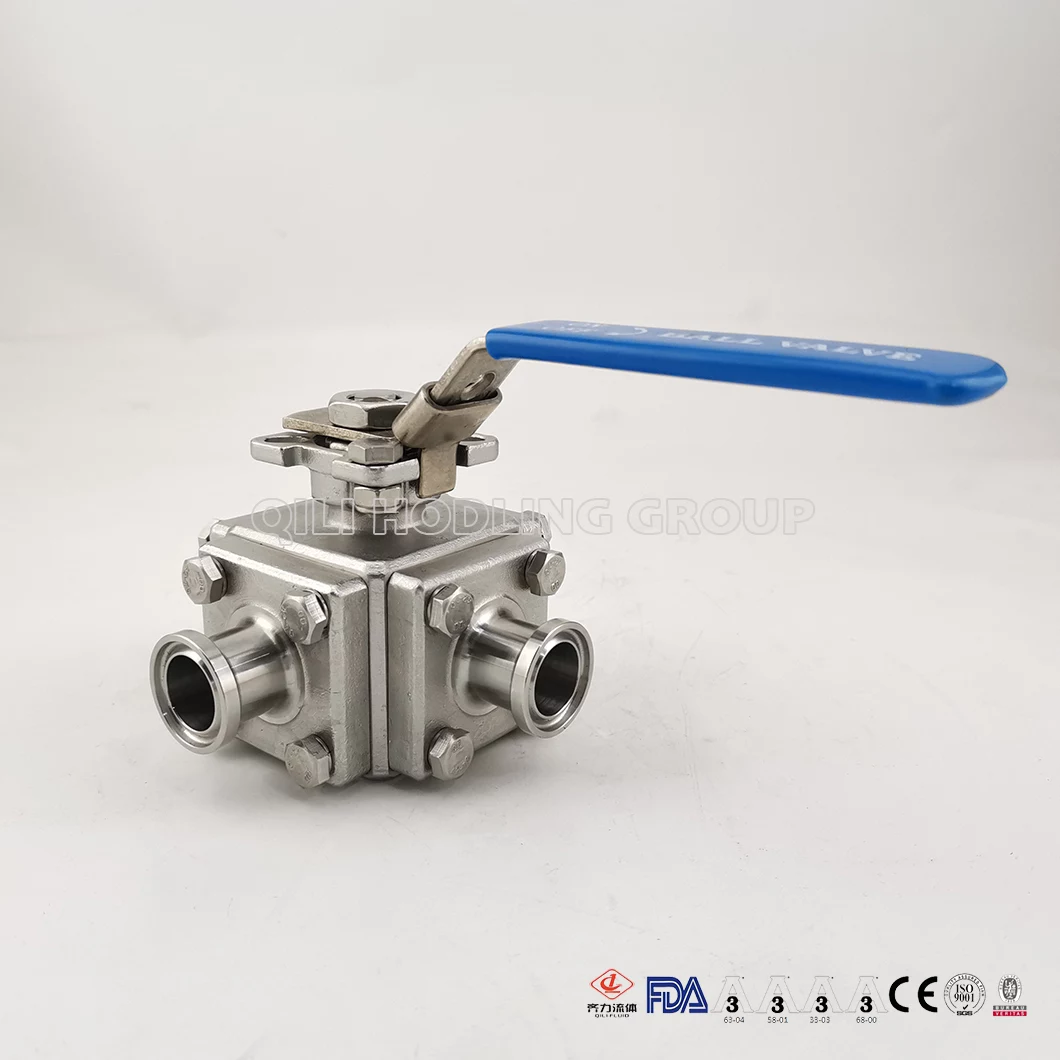

CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves
CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves

Details

  • 1.Name:CF3M CF8M Hygienic Manual 3 Way Full Bore Encapsulate PTFE Ball Valves
  • 2.Size:Dn15-150 and 1"-6"
  • 3.Connection way:Tri clamp,weld,male, flange
  • 4.Work Pressure:Mid-Pressure (2.5mpa< Pn <6.4mpa)
  • 5.Working Temperature:-20 ~ 135° C
  • 6.Material of Seal Surface:Soft Sealed
  • 7.Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics

Drawings

Advantages

In 2019,Qili was fully upgrade all ball valve.the upgraded design more suitable GMP、ASM、 EBPE、EHEDG and 3A of high purity technology requirement,especially for dead space handle processing <1D to <3D requirement.  The valve is designed as an encapsulated valve, which solve the problem of liquid retention valve cavity.the valve is in biopharmaceutical , beverage processing, brewing, refinery, cosmetics and chemical industry, valve rod sealing design,Butterfly spring compensation design,encapsulated PTFE design, It has the advantage of long life ,small torque,no retention
