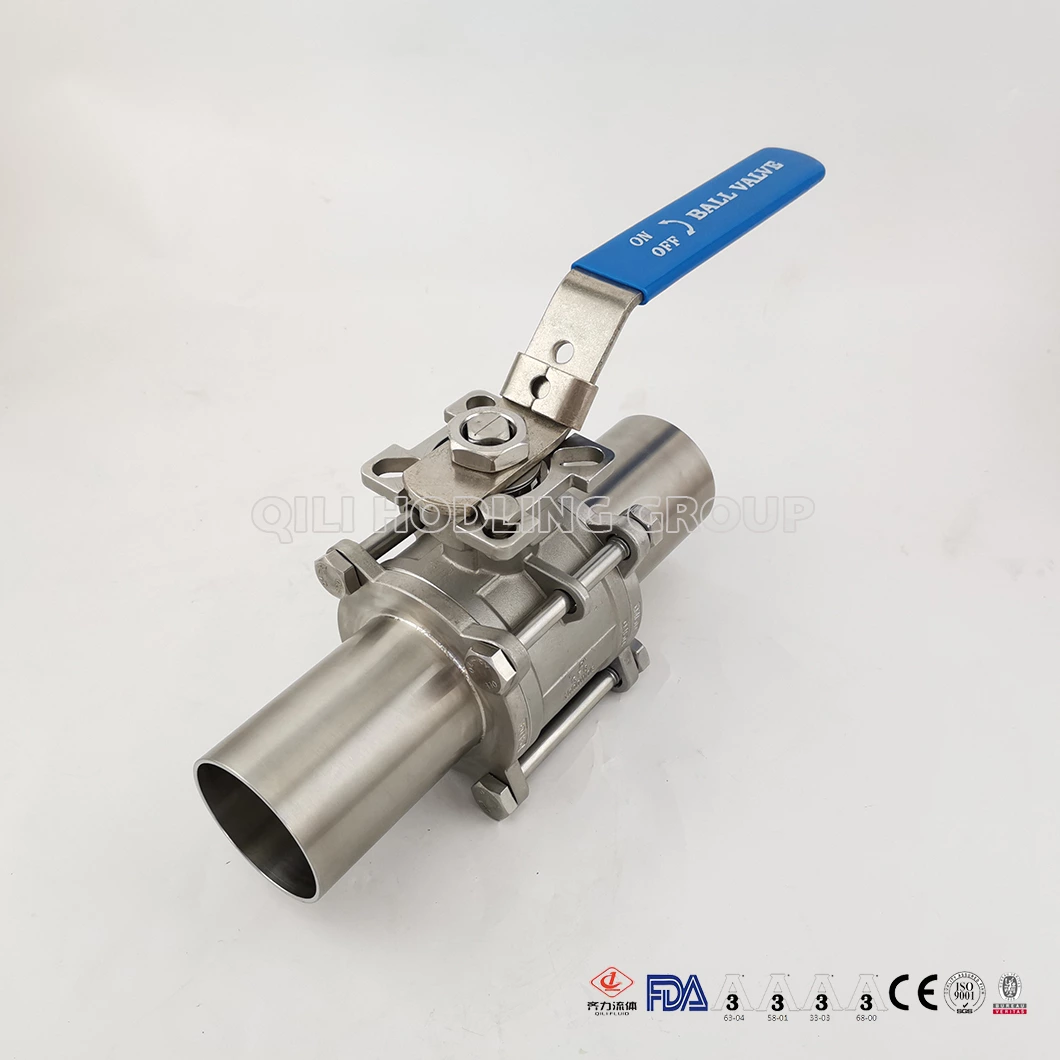

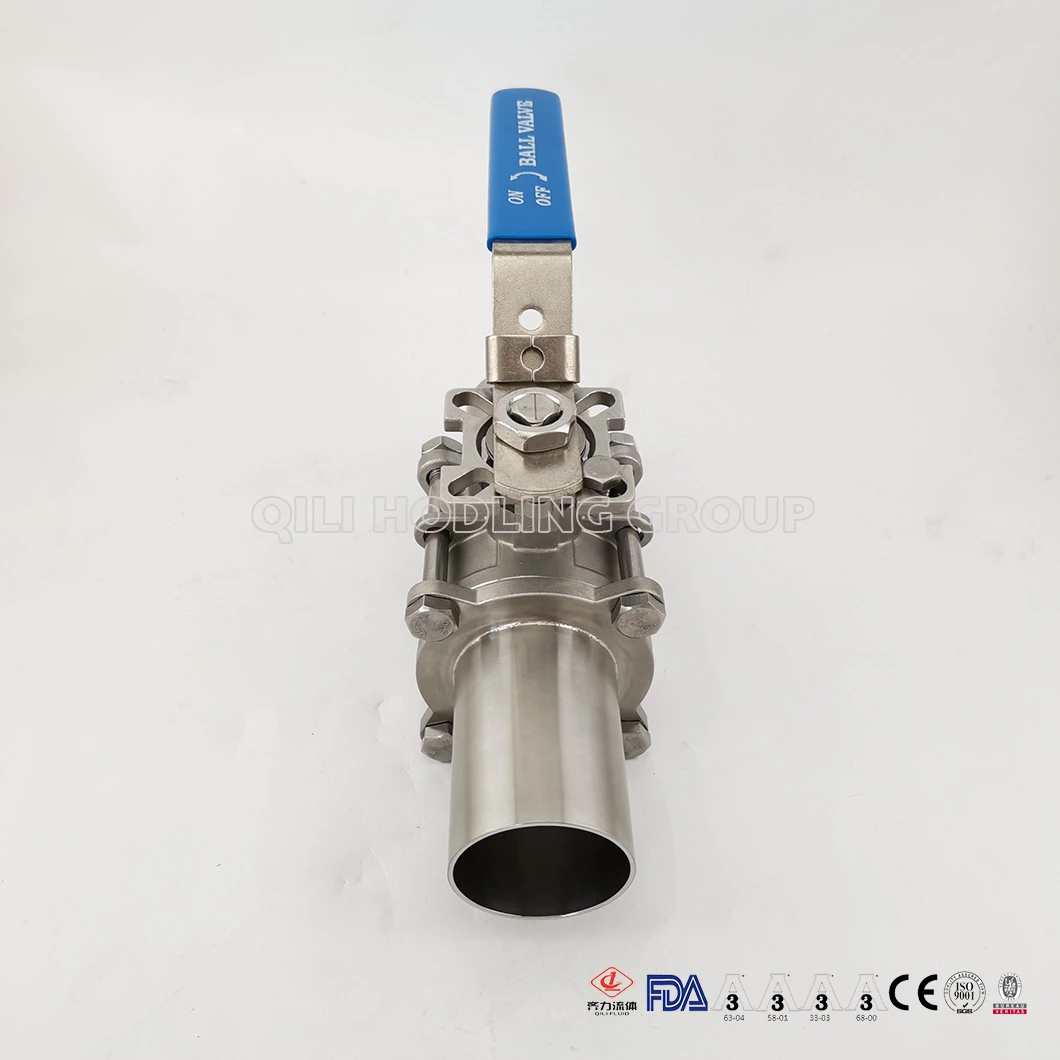

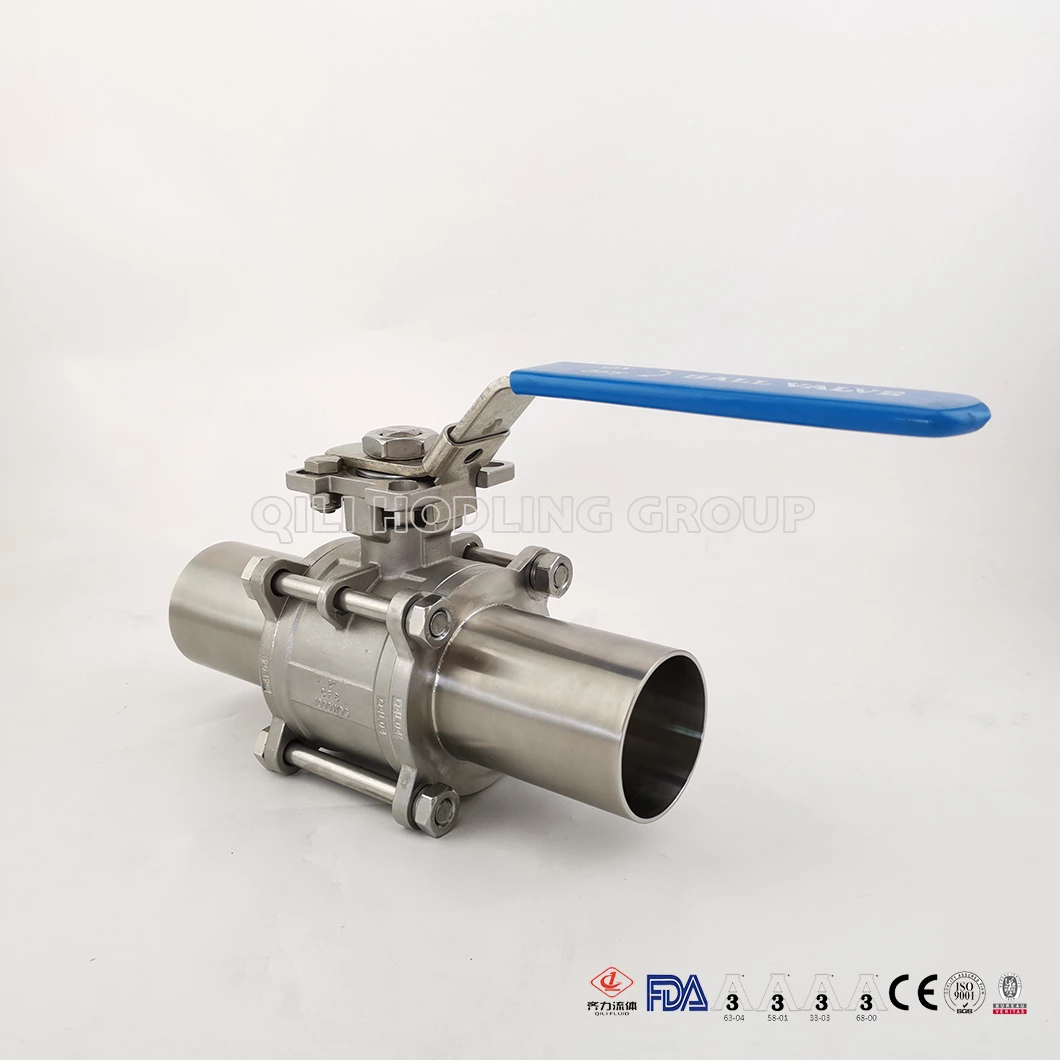

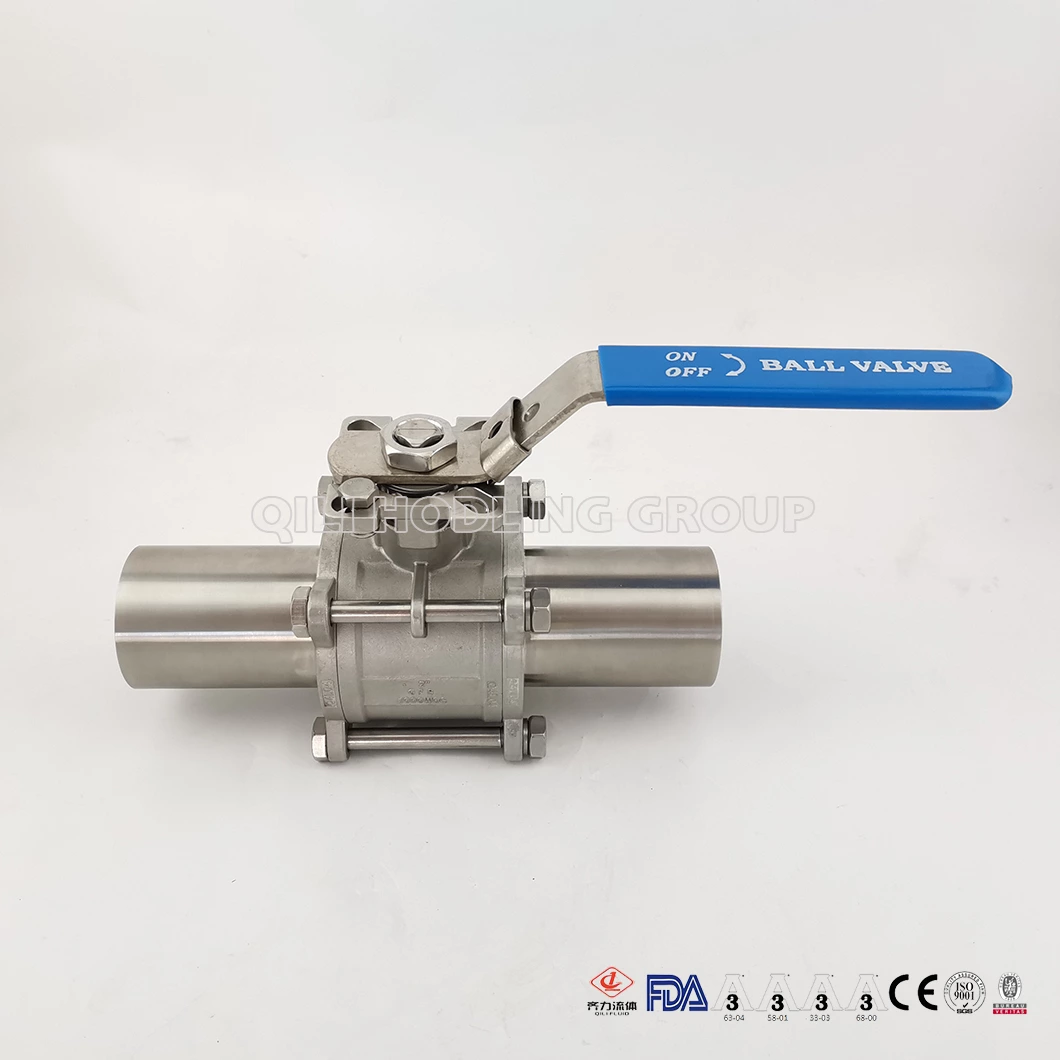

3PC Sanitary Long Butt Weld Ball Valve
The 3 PC Sanitary Long Butt Ball Valve is our strong product. We produce it many years, and export them to many countries with high praises and repurchasing. It can be used on dairy products, beer, food, beverage, pharmacy, and bioengineering industry, etc.- Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2" -6", DN15-DN100
- Sales Models:
- wholesale or retail
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- MOQ:
- 1PC
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- cartons
Details
| Description | 3 PC Sanitary Long Butt Weld Ball Valve |
| Body Material | SS304; SS316L(Forged, 1.4301/1.4404) Customer’s requests available |
| Body Material | SS304 |
| Seal Material | EPDM,VMQ(Silicone),NBR(Nitrile),VITON, all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150 |
| Finishing | Ra 16~32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | 1/2”-12”, large size can be customize |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A, SMS, ASME BPE, ISO, DIN, BS |
| Features | 100%hydraulic tested/100% inspected |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
