3 Piece Sanitary Stainless Steel Tube Bore encapsulated Ball Valve Full Port

The 3 Piece Sanitary Tube Bore Ball Valve Full Port is our strong product. We produce it many years, and export them to many countries with high praises and repurchasing. - Wenzhou Qili Fluid Equipment Co.,ltd.
Material:
SS304 /SS316L
Standard:
3A,SMS,ISO,RJT,DIN,IDF
Working Temperature:
-20 to 150℃
Connection ways:
welde,clamp, thread
Size:
1/2" -6", DN15-DN100
Sales Models:
wholesale or retail
Valve Seal:
encapsulated
Surface Treatment:
Ra 16 to 32µin (0.4 to 0.8µm) electropolish available
Pressure Value:
10 bar(140psi) DN25 to 100; 8 bar(120psi)DN125 to 150
MOQ:
1pc
Seal Material:
EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
Transport Package:
cartons

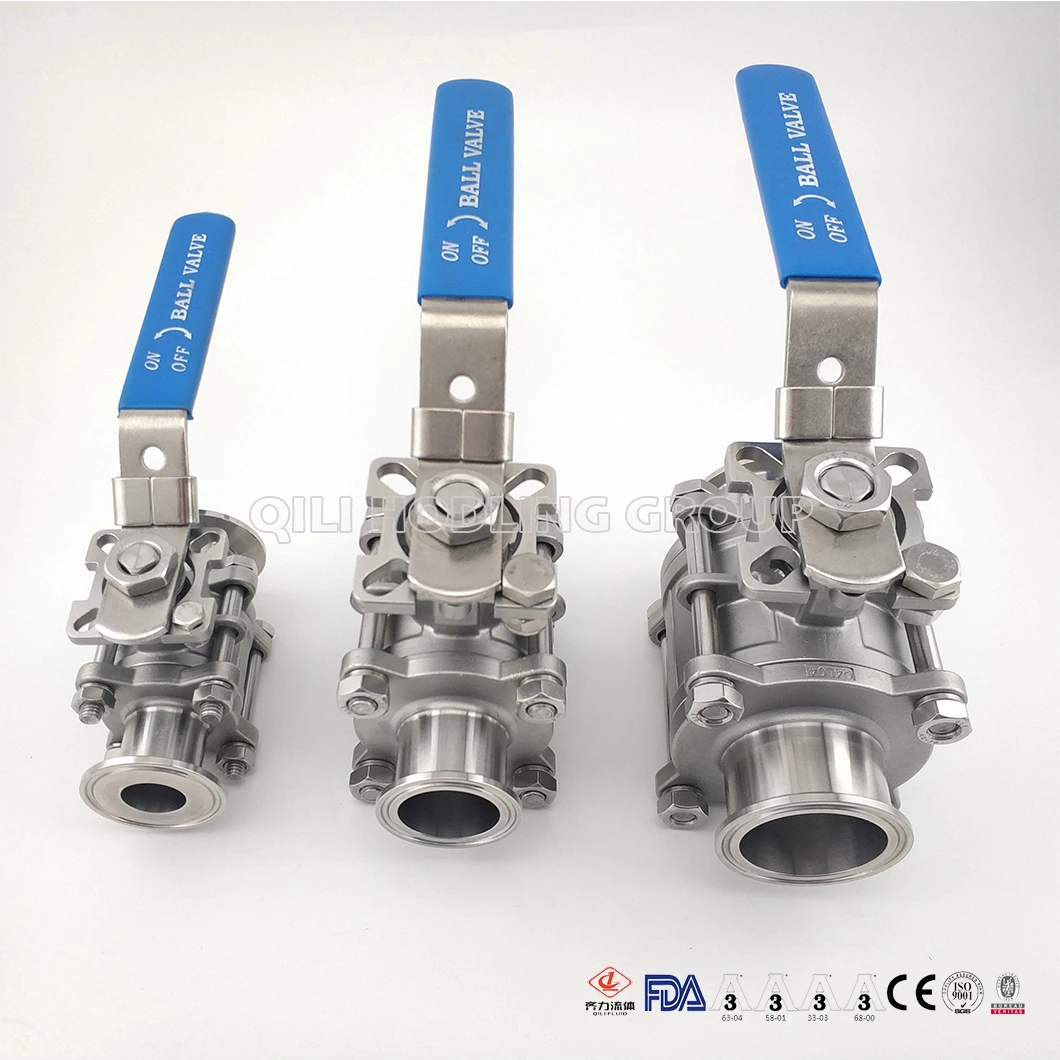

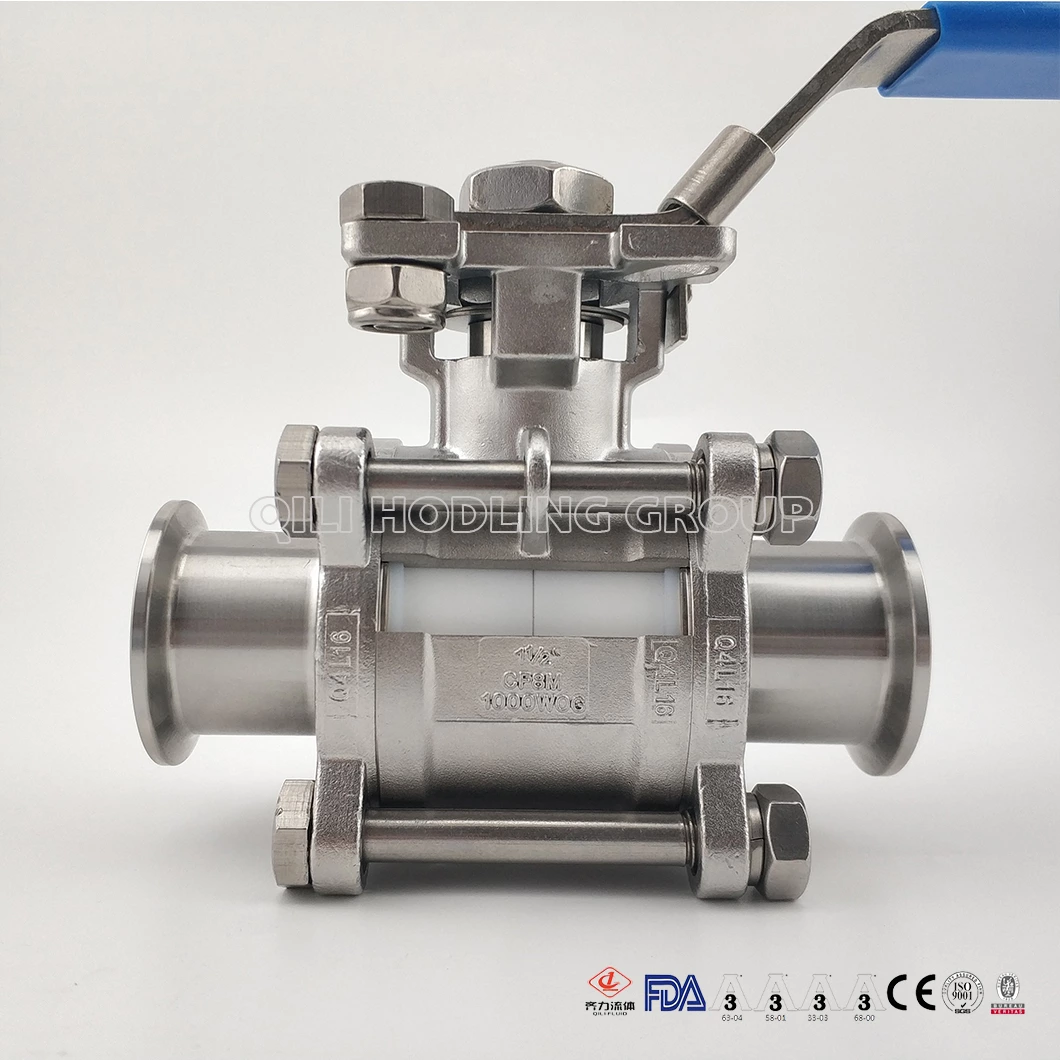

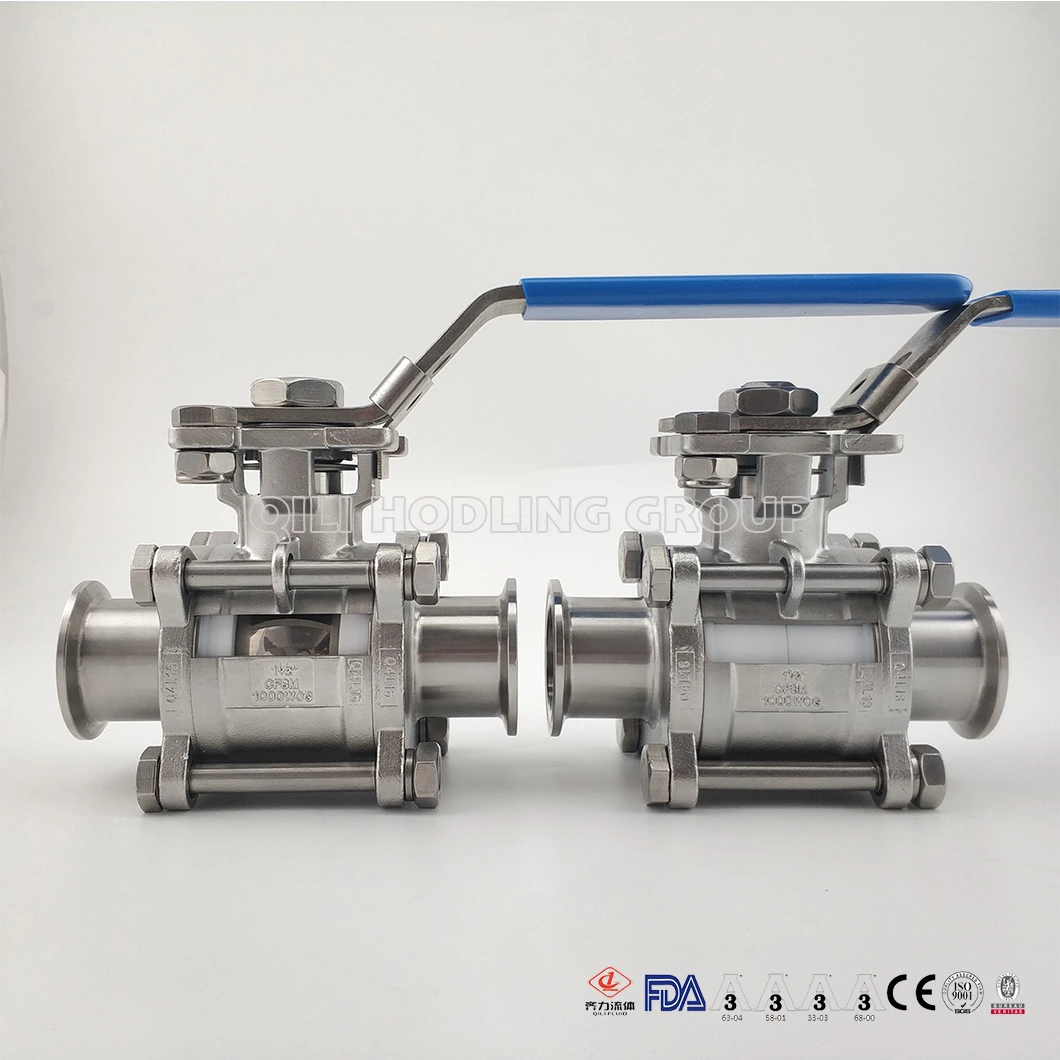

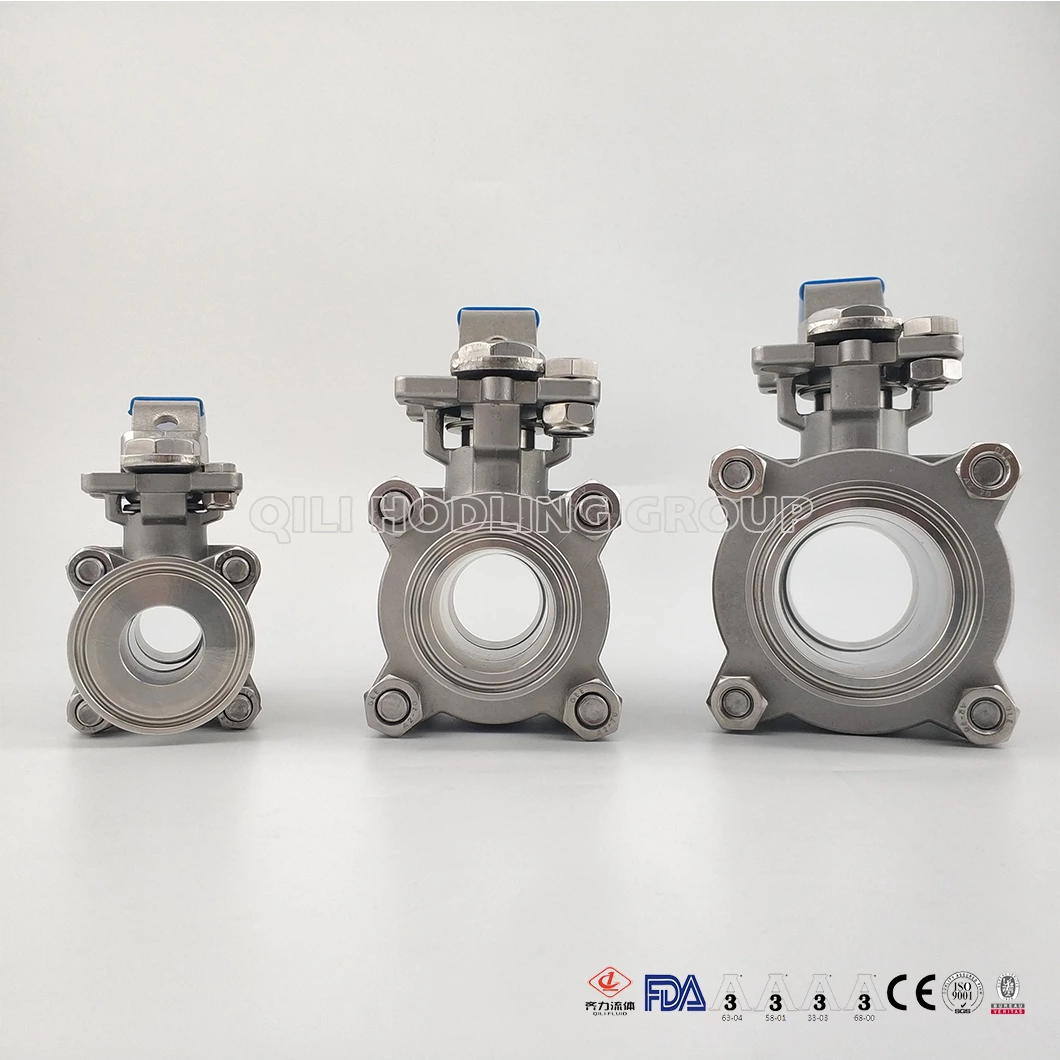

3 Piece Sanitary Stainless Steel Tube Bore encapsulated Ball Valve Full Port
3 Piece Sanitary Stainless Steel Tube Bore encapsulated Ball Valve Full Port 3 Piece Sanitary Stainless Steel Tube Bore encapsulated Ball Valve Full Port 3 Piece Sanitary Stainless Steel Tube Bore encapsulated Ball Valve Full Port 3 Piece Sanitary Stainless Steel Tube Bore encapsulated Ball Valve Full Port 3 Piece Sanitary Stainless Steel Tube Bore encapsulated Ball Valve Full Port

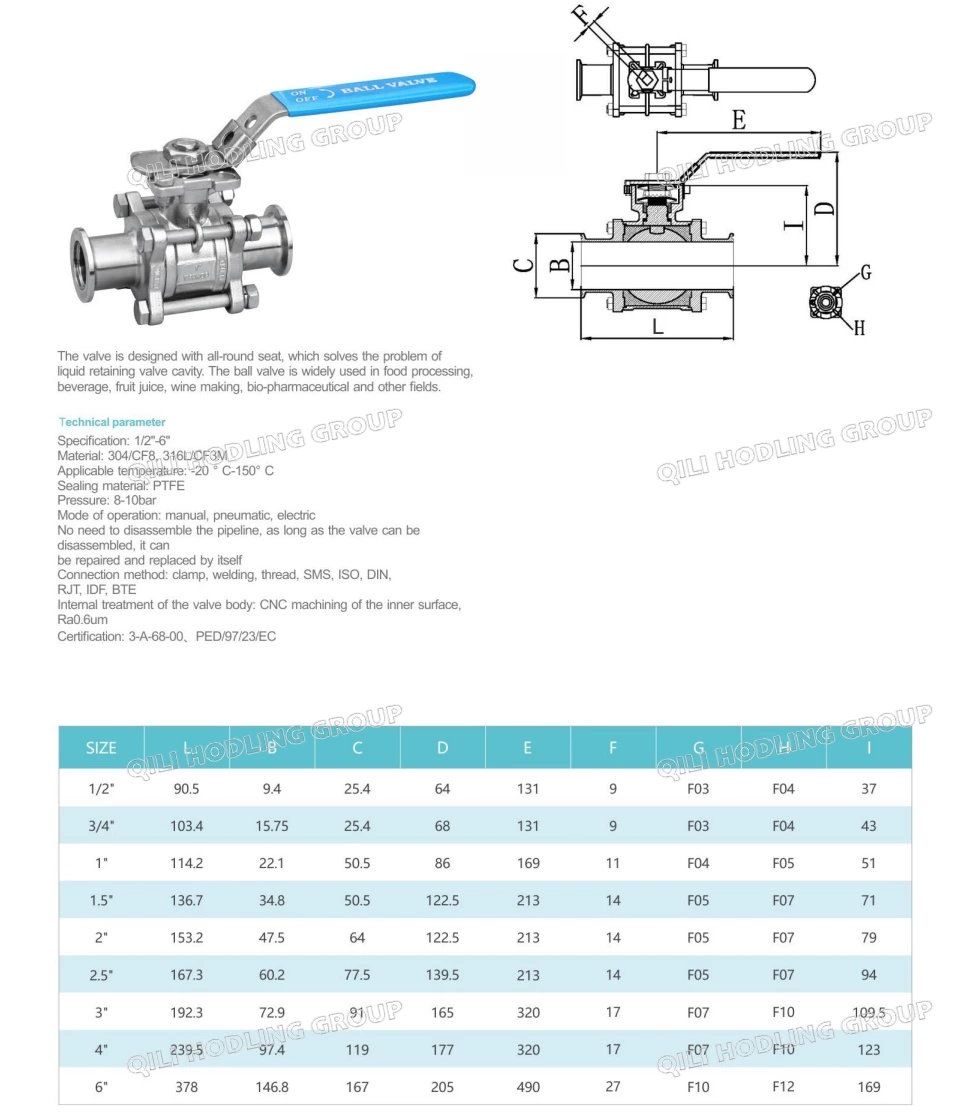

Drawings

Details

Description 3 Piece Sanitary Tube Bore Ball Valve Full Port
Body Material SS304; SS316L(Forged, 1.4301/1.4404)
Customer’s requests available
Actuator Material SS304
Seal Material EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
Temperature Range 15°F to 200°F(-9.4°C to 93°C) EPDM
Max. Pressure 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
Finishing Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
Port Size 1/2”-12”, large size can be customize
Connection Tri-clamp ferrule; Threaded; Welded
Connection Standard 3A, SMS, ASME BPE, ISO, DIN, BS
Features 100%hydraulic tested/100% inspected
Specifications Can see our products catalogues
