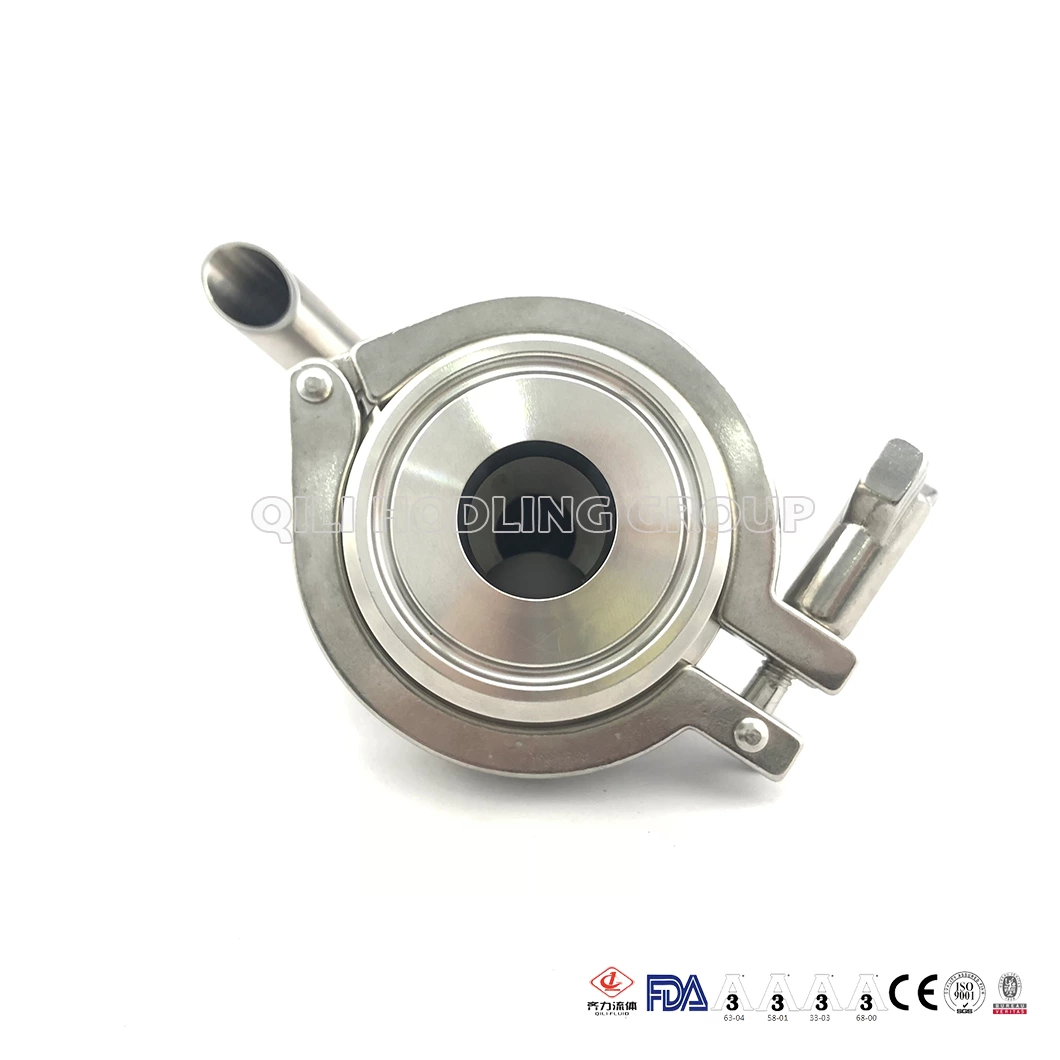

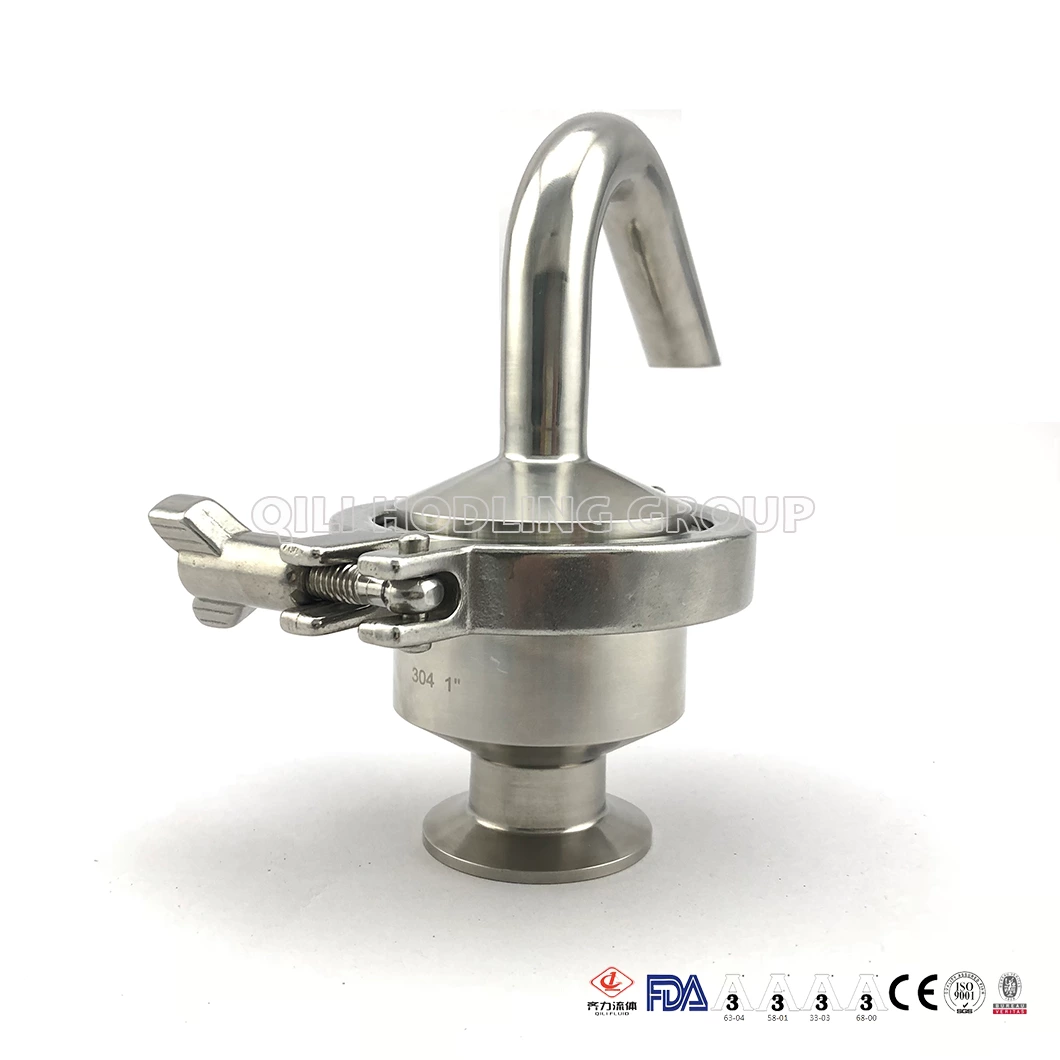

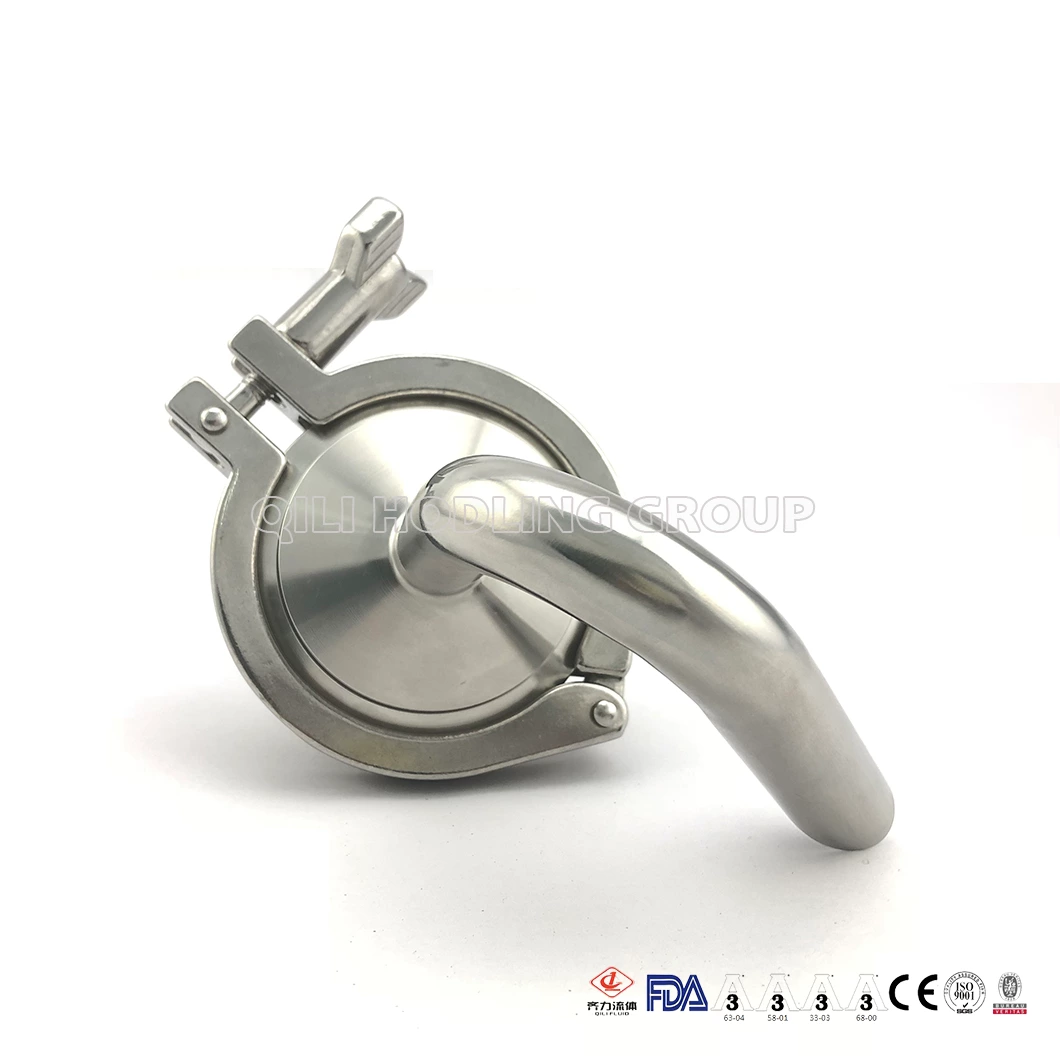

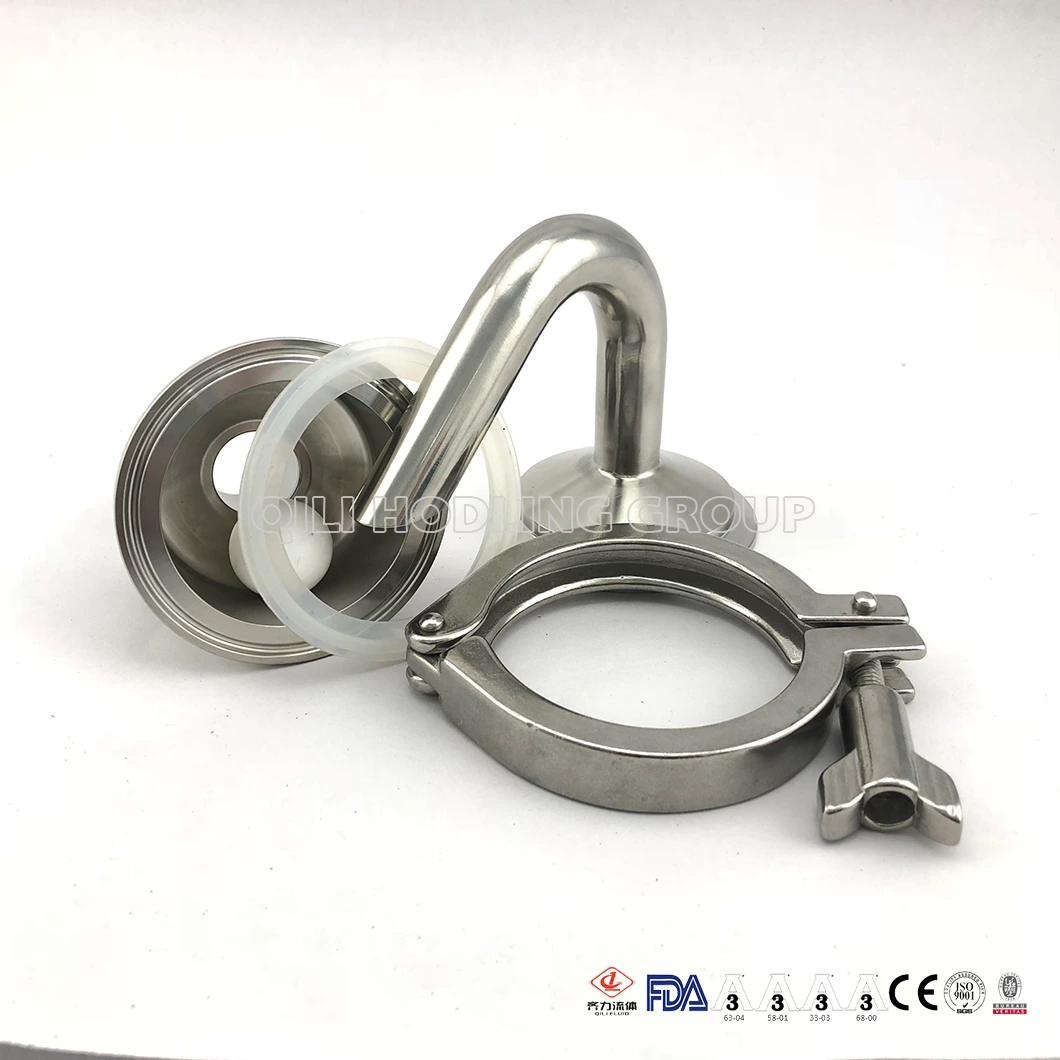

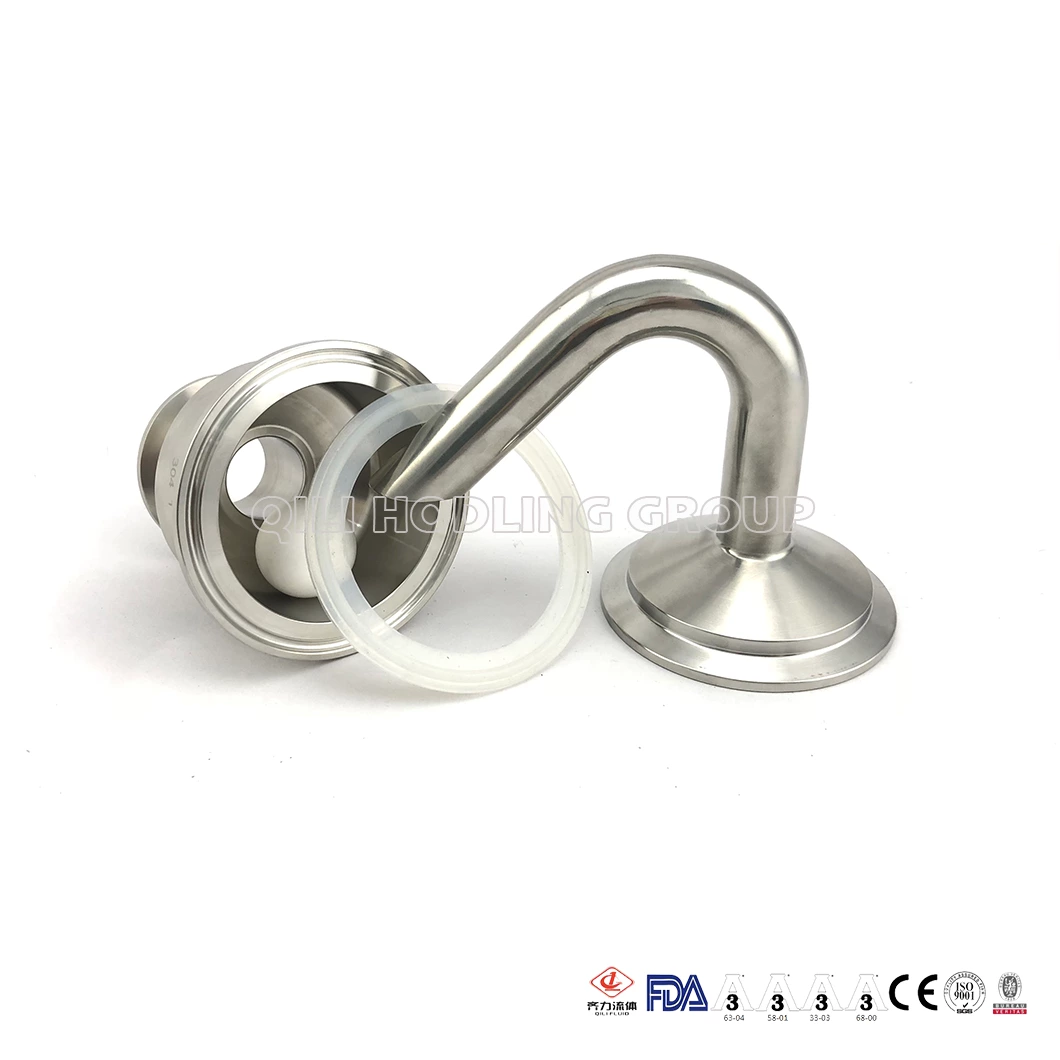

High Grade Sanitary Stainless Steel Air Release Valve

Sanitary Stainless Steel Air Release Valve are safety devices required for storage tanks/containers/gas or vapor pipe lines/ reactors etc. having chemicals or any other fluid to be handled carefully.
Model:
Air Release Valve
Material:
Stainless Steel
Standard:
DIN,3A,SMS,ISO
Working Temperature:
90 ºC
Delivery Time:
15-20days
Connection ways:
clamp
Size:
1"-6"
Sales Models:
wholesale or retail
Pressure Value:
1000kPa/ 145psi (10 bar)
Seal Material:
EPDM
Transport Package:
cartons
High Grade Sanitary Stainless Steel Air Release Valve
High Grade Sanitary Stainless Steel Air Release Valve High Grade Sanitary Stainless Steel Air Release Valve High Grade Sanitary Stainless Steel Air Release Valve High Grade Sanitary Stainless Steel Air Release Valve High Grade Sanitary Stainless Steel Air Release Valve High Grade Sanitary Stainless Steel Air Release Valve

Applications

  • Safety valve is used to protecting pipe,pump from over pressure
  • Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
  • With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.


Operating Principle

  • Through the spring to adjustable the pressure.
  • When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Details

  • Max product pressure 1000kPa/ 145psi (10 bar)
  • Max temperture 90 ºC(because of the plastic ball
  • Density of ball 0.906kg/dm3
  • Product body Stainless steel AISI 304Seal ring EPDM
